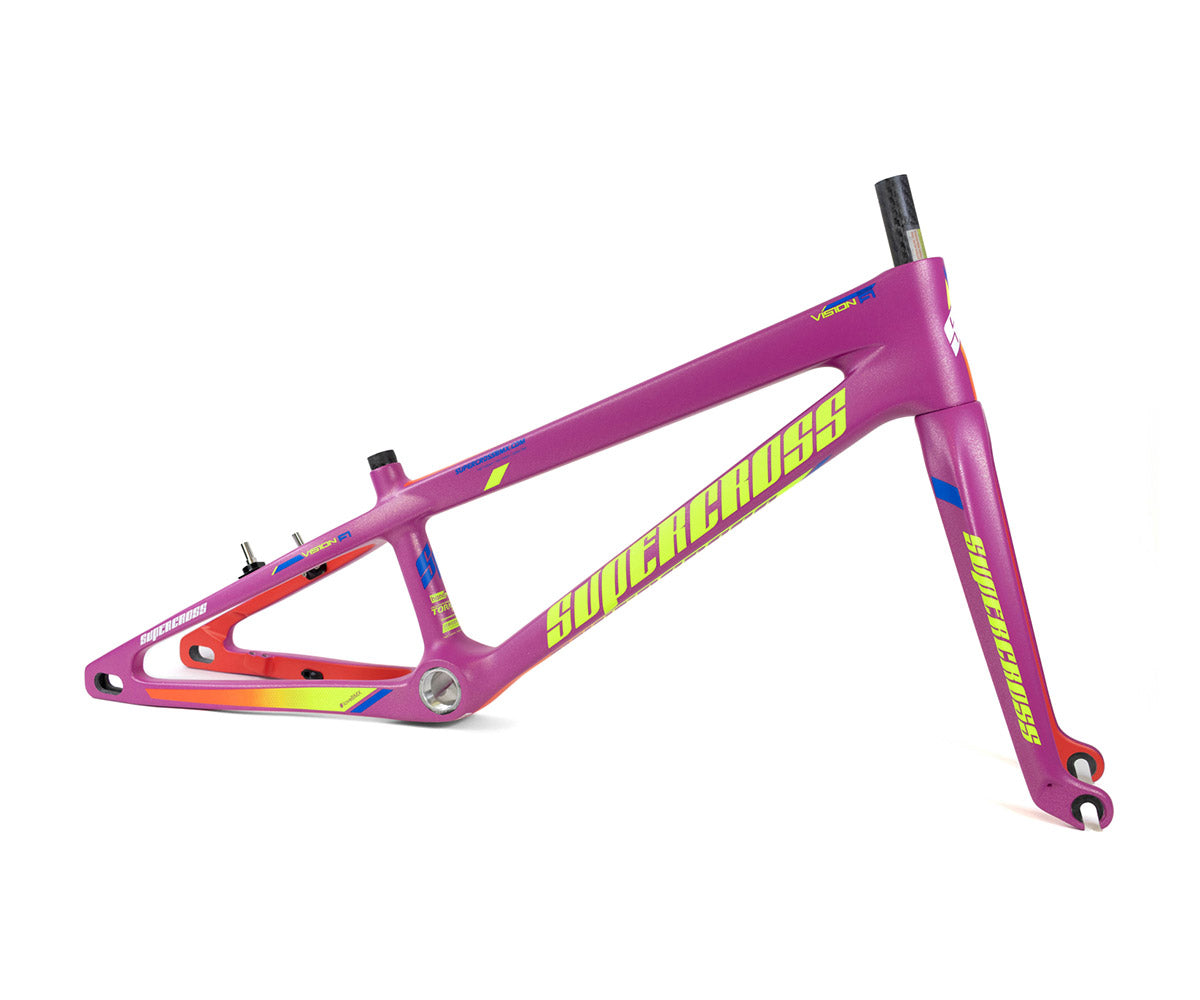

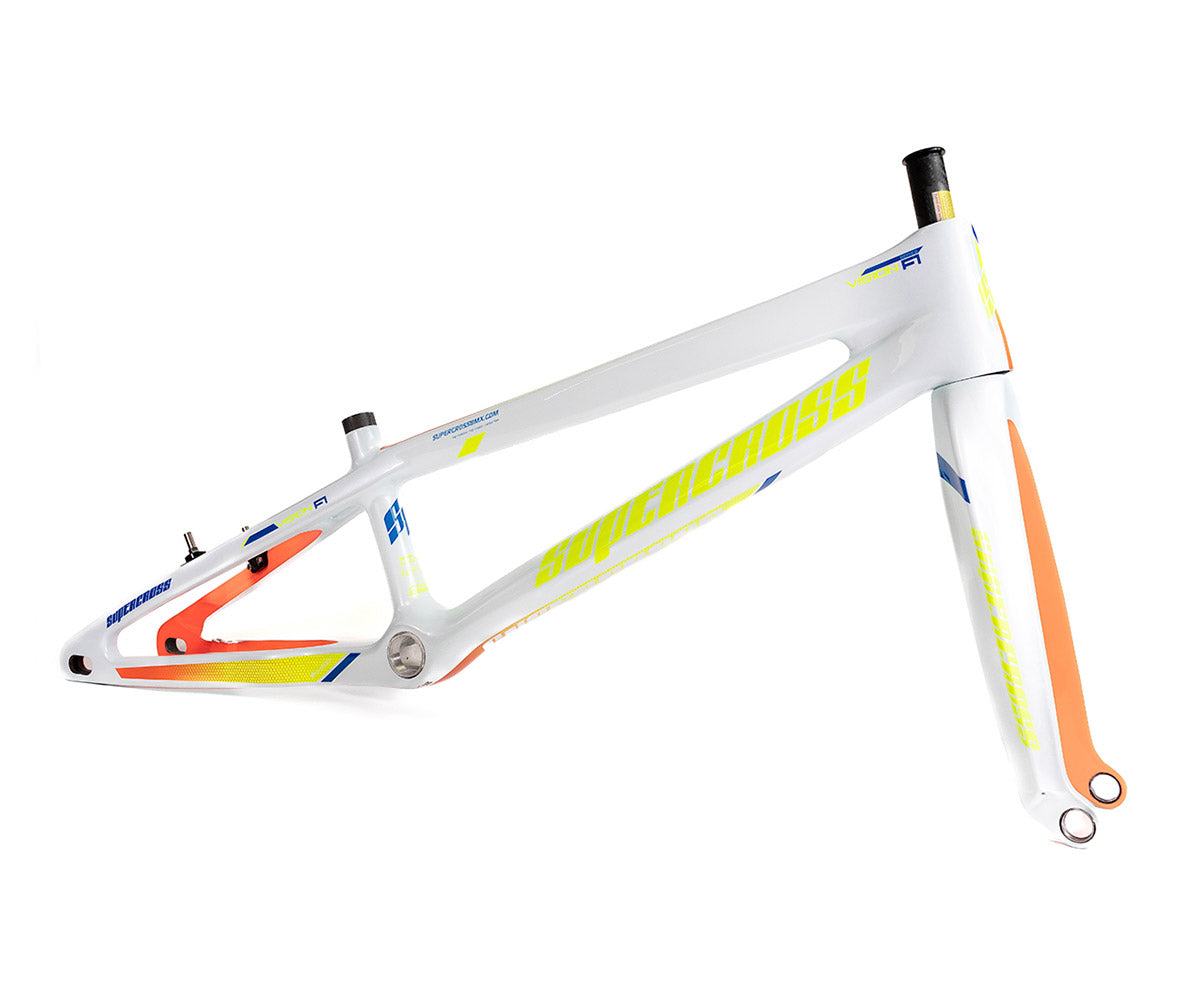

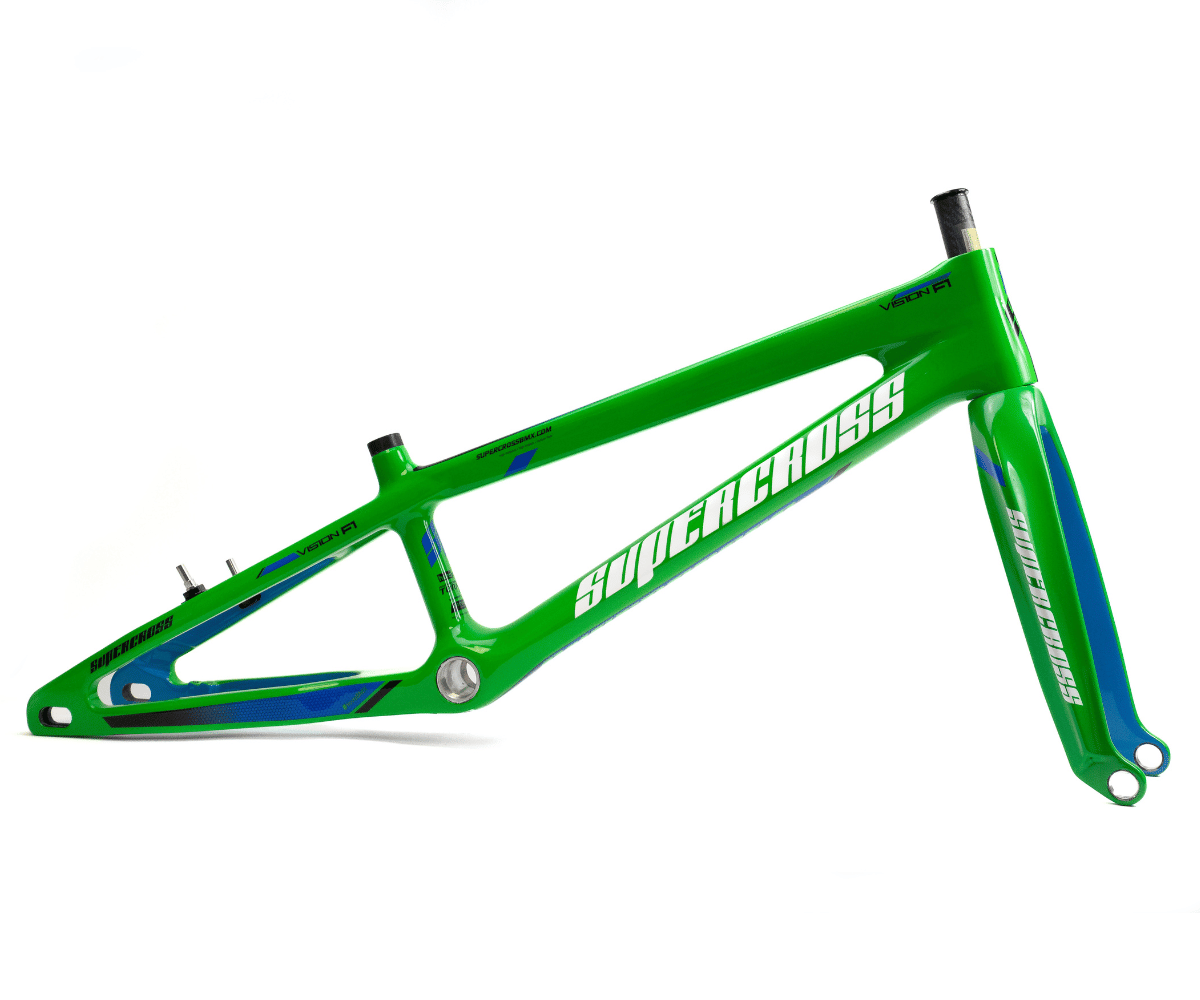

Supercross BMX | Vision F1 - Carbon Fiber Racing Chassis
$ 1,995.95
- Overview
- Materials
- Geometry
Only the best. Period.
SEE THE FULL PRODUCT DESCRIPTION & VIDEOS HERE
-
Monocoque (one-piece) frame and fork construction
-
TORAYCA T1100-KS (frame) / TORAYCA T700S Nano Alloy Resin (forks)
-
-
Accepts 120mm Disc Brakes & All V-Braking systems
-
Includes internal cable ports for upper V-Brake routing & lower disc routing
-
-
Full captive, solid carbon rear dropout featuring the Supercross BMX Flip/Chip
-
Built-in chain idler/guide
-
Traditional Euro BB Shell bottom bracket
-
Each Pro chassis contains:
-
1 x Vision F1 Frame, 1 x Vision F1 matching fork, 1 x Steering tube top cap, 1 x 20mm adapters, 1 x Hydraulic disk brake adapter kit, 1 x Mechanical disk brake adapter arm, 2 x Removable V-Brake mounts, 2 x FLIP/CHIP’s (15mm & 10mm), 1 x Chain Idler/Guide, 1 x Sealed Bearing Headset, Mini, Junior, Expert & Expert XL Chassis kits only contain 1 set of FLIP/CHIPs for the 100m axle size. They also use a 10mm front dropout on the fork
-
The Vision F1 is built with the best materials, keeping you looking your best on the track.
Utilizing World Championship-winning geometry of past Supercross frames, the VISION F1 revolutionizes the platform. Unlike its predecessors, the VISION F1 utilizes monocoque construction, also known as one-piece construction. The frame and fork are each constructed of a uniform piece of high-modulus carbon fiber. No joints, no welds, no bonding areas! This construction method is the most efficient and premium way of producing carbon fiber components. We did this while retaining the tried and trued carbon pre-preg material, TORAYCA T1100-KS (frame) and T700S Nano Alloy Resin (Forks).
TORAYCA T1100-KS allows us to reduce the frame’s weight another 6% while simultaneously increasing stiffness and power transfer. The efficiency of monocoque construction paired with T1100-KS allowed us to reduce material in less stressed regions and apply it to areas of extreme power transfer. The VISION F1 launches like no other! The Chart depicted above is a product of TORAYCA's in-house testing. T1100-KS is used on fighter jets and Formula 1 cars, and now you get to ride it! The VISION F1 is the fastest platform in BMX Racing, retaining every bit of that confidence-inducing feel of a Supercross BMX frame.
SUPERCROSS BMX VISION F1 CARBON RACE FRAME GEOMETRY CHART
| Vision F1 Carbon | Pro | Pro Plus | Pro XL | Pro XXL | Pro XXXL15 |
| A. Top Tube Length | 20.5" | 20,75" | 21.25" | 21.75" | 22.25" |
| B. Chainstay Length | 15.0" | 15.0" | 15.2" | 15.2" | 15.2" |
| C. Steertube Angle | 74.5° | 74.5° | 74.5° | 74.5° | 74.5° |
| D. Seat Tube Angle | 70° | 70° | 70° | 70° | 70° |
| E. Bottom Bracket Height | 11.6" | 11.6" | 11.6" | 11.6" | 11.6" |
| Seat Post Size | 27.2mm | 27.2mm | 27.2mm | 27.2mm | 27.2mm |
| Headset Type | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated |
| Wheel Size | 20" x 1.75" | 20" x 1.75" | 20" x 1.75" | 20" x 1.75" | 20" x 1.75" |
| Vision F1 Carbon | Jr | Expert | Expert XL | Mini |
| A. Top Tube Length | 18.5" | 19.5" | 20" | 17.5" |
| B. Chainstay Length | 12.5" | 13.75" | 14.0" | 12.0" |
| C. Steertube Angle | 73.5° | 74° | 74° | 72° |
| D. Seat Tube Angle | 70° | 70° | 70° | 70° |
| E. Bottom Bracket Height | 10.7" | 10.7" | 10.7" | 10.7" |
| Seat Post Size | 22.2mm | 22.2mm | 22.2mm | 22.2mm |
| Headset Type | Campy Integrated | Campy Integrated | Campy Integrated | Campy Integrated |
| Wheel Size | 20" x 1" | 20" x 1 3/8" | 20" x 1 3/8" | 20" x 1 1/8" |
-
Each Pro chassis contains:
- 1 x Vision F1 Frame
- 1 x Vision F1 matching fork
- 1 x Steering tube top cap
- 1 x 20mm adapters
- 1 x Hydraulic disk brake adapter kit
- 1 x Mechanical disk brake adapter arm
- 2 x Removable V-Brake mounts
- 2 x FLIP/CHIP’s (15mm & 10mm)
- 1 x Chain Idler/Guide
- 1 x Sealed Bearing Headset
*Mini, Junior, Expert & Expert XL Chassis kits only contain 1 set of FLIP/CHIPs for the 10mm axle size. They also use a 10mm front dropout on the fork.
-
This is a Chassis Kit, you will still need,
- Stem
- Spacers
- Bars
- Grips
- Brakes
- Wheels
- Tires & Tubes
- Cranks & BB Kit
- Chain
- Pedals
- Seat
- Seatpost and Seatpost Clamp
We stock most of these parts to be able to help you build it up , or you can swap parts over from your existing bike.
-
Pro size and Larger take a 31.9mm Clamp and a 27.2 Post. The Expert and smaller take a 22.2 post and a 25.4mm clamp. We have all of the posts and clamps in stock for you to finish the build.
-
The Vision F1 accepts 120mm Disc Brakes & All V-Braking systems. Hydraulic and Mechanical. The Hydraulic fit behind the seatstay with the included adapter, the Mechanical will sit above the seatstay with the included adapter.
-
The Vision F1 uses our World Championship winning Supercross BMX Race Geometry that has been refined over 3 decades of BMX racing. Feel free to look above this FAQ and click the geometry tab for a lowdown!
-
