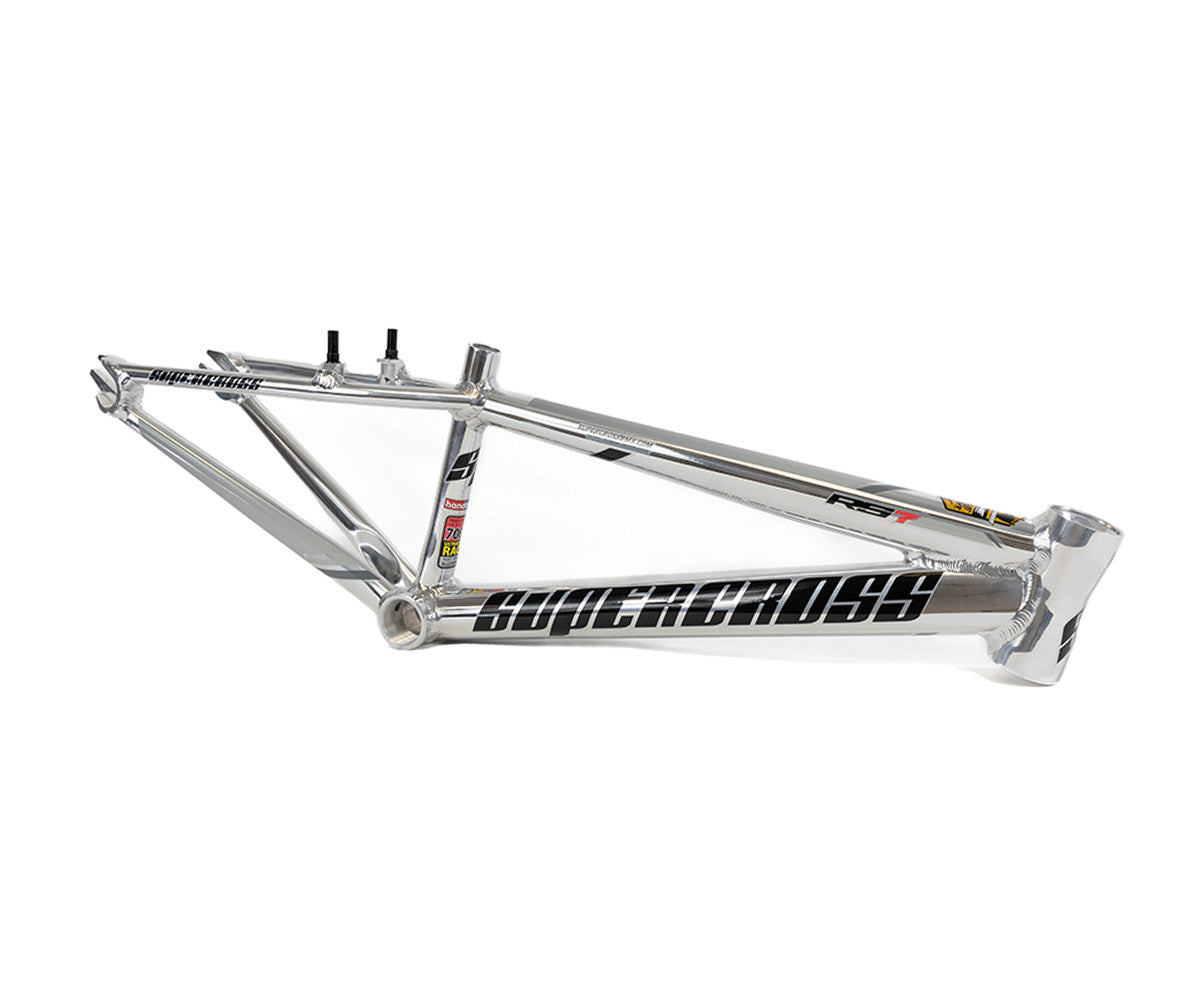

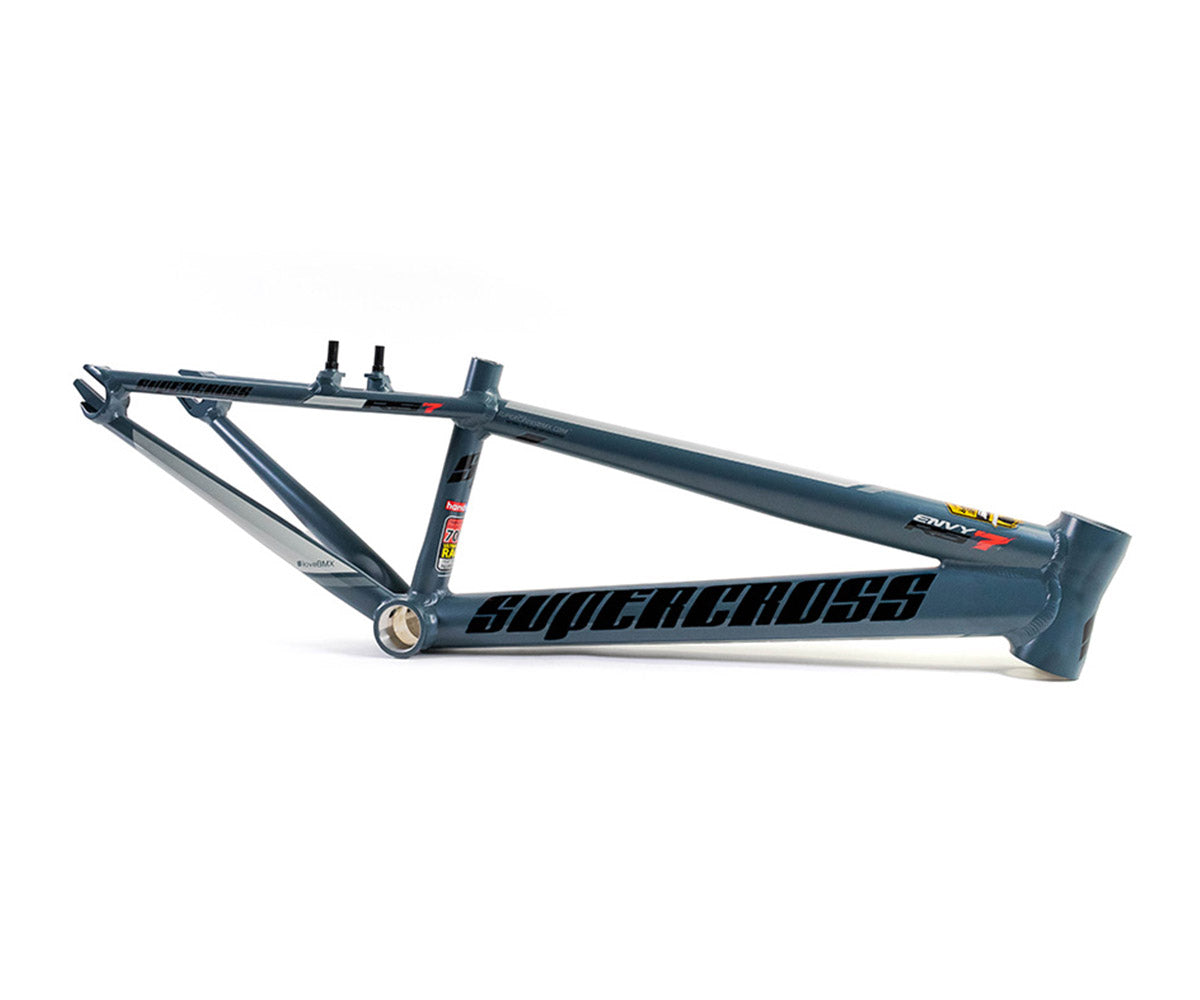

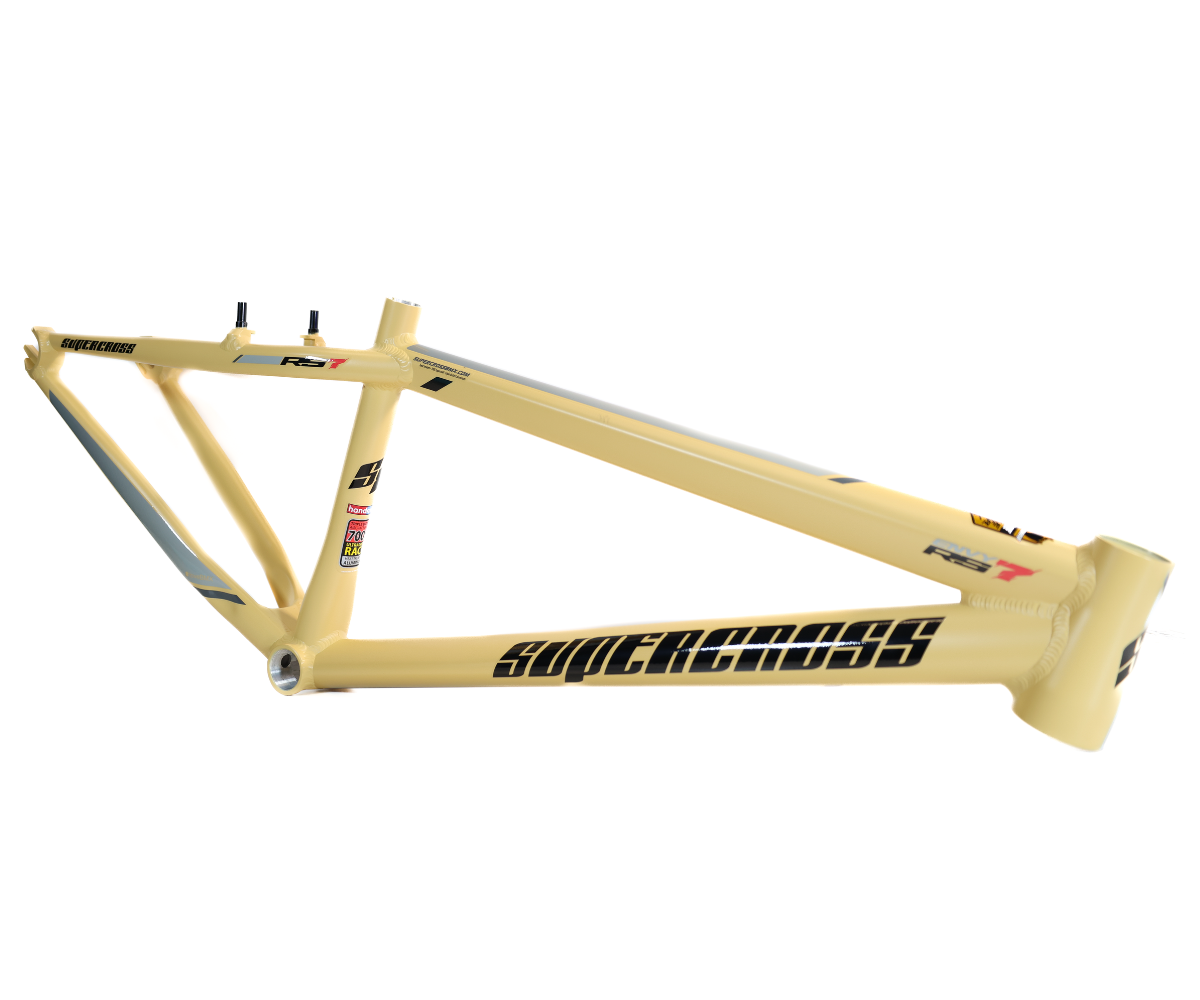

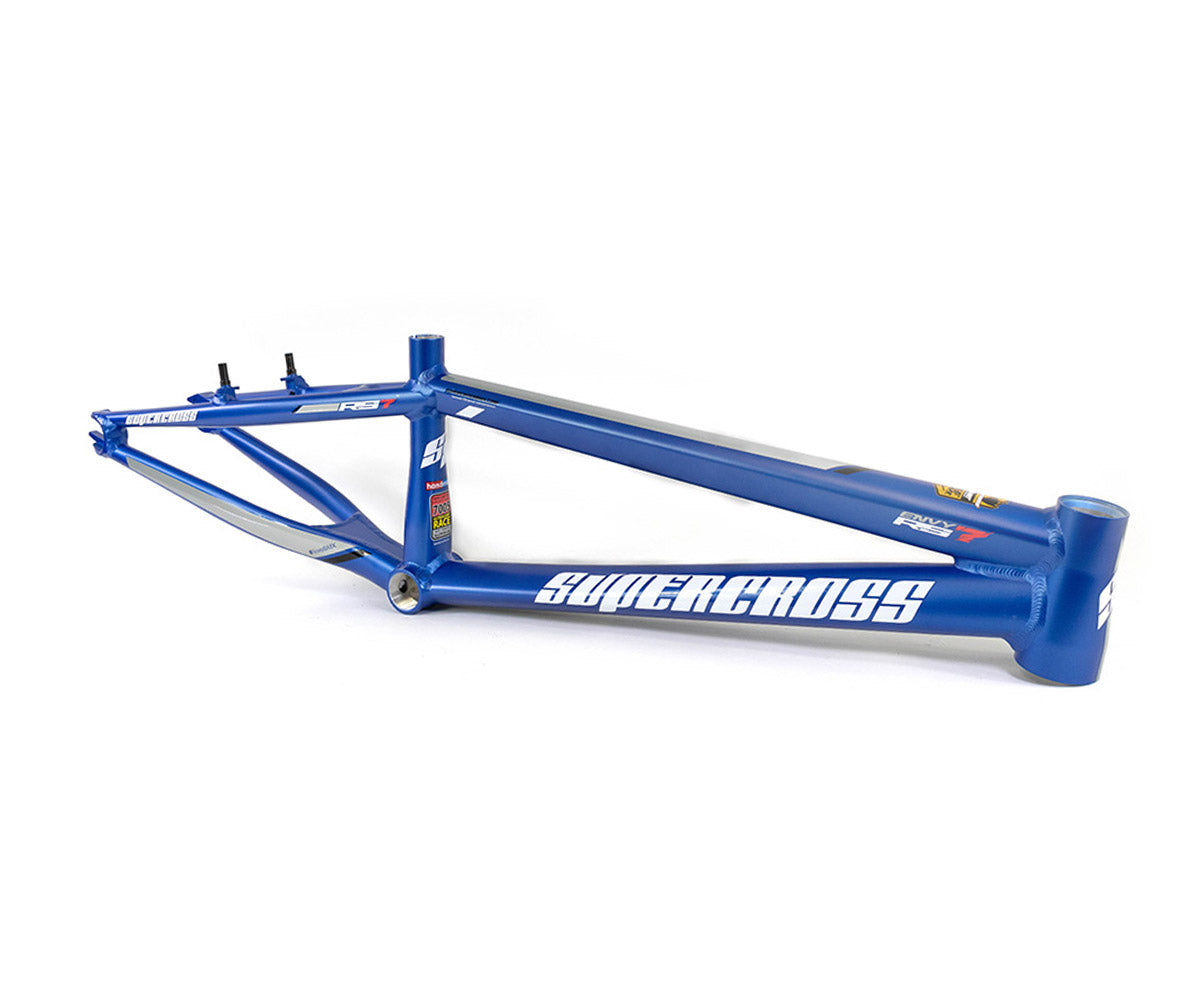

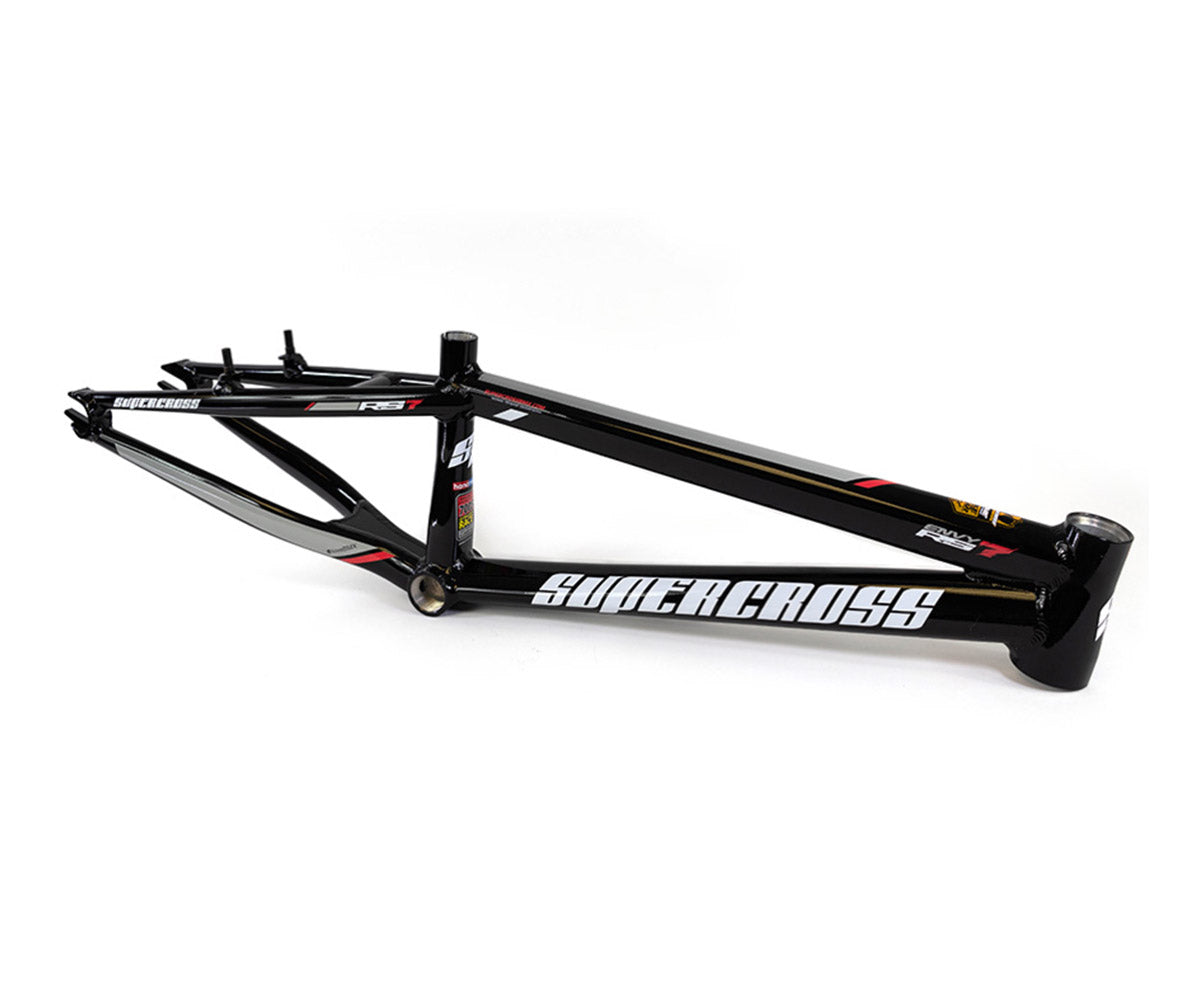

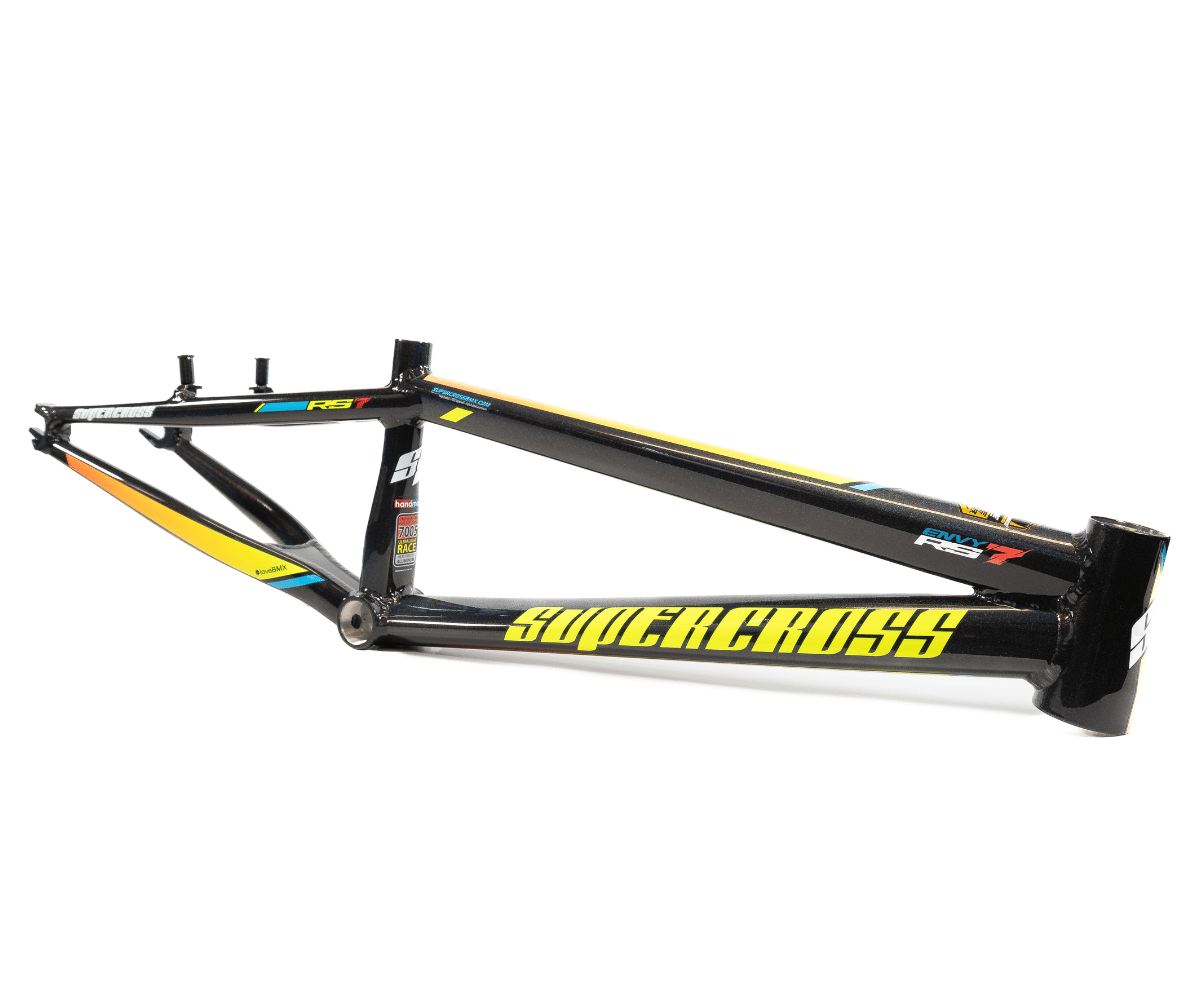

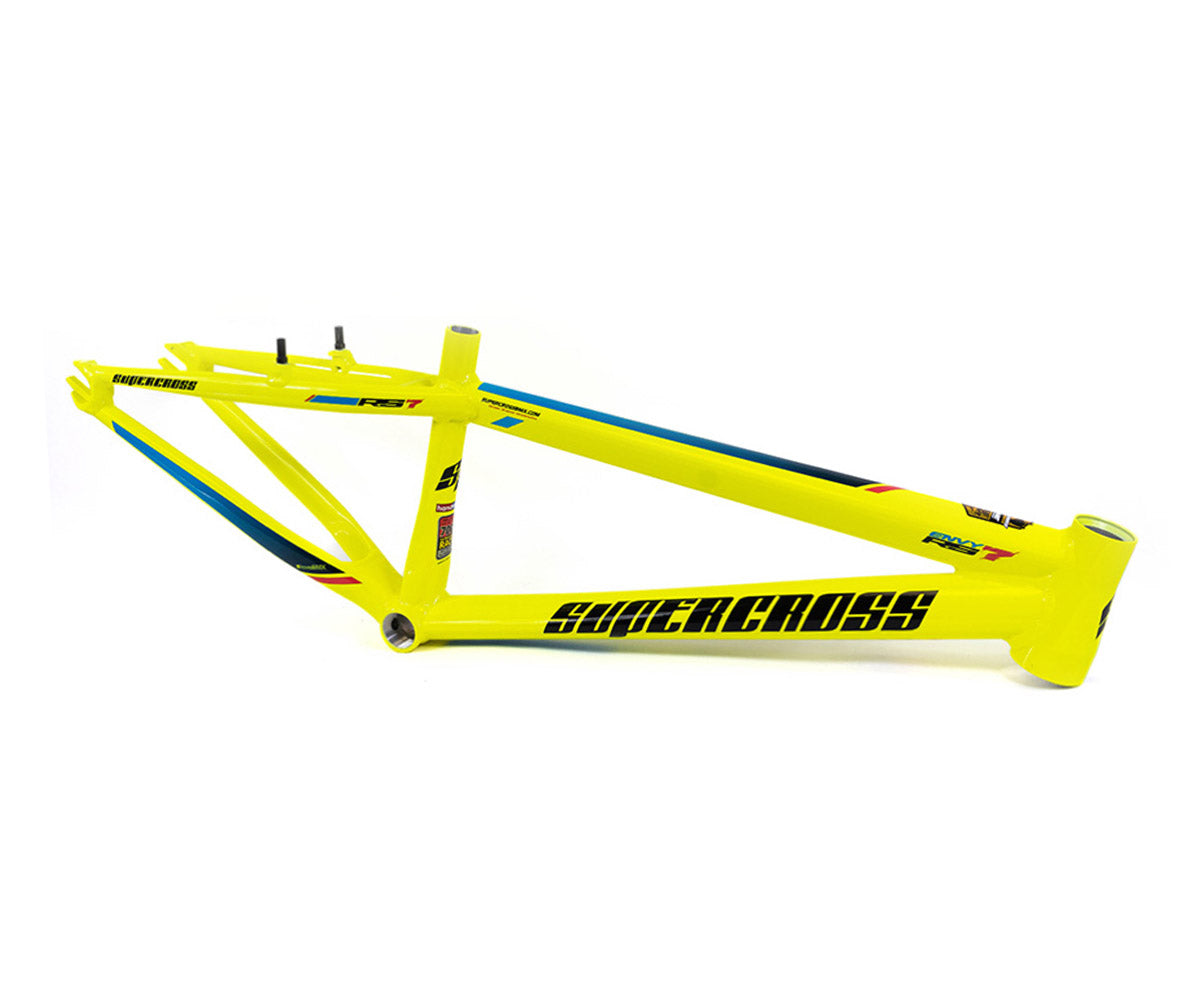

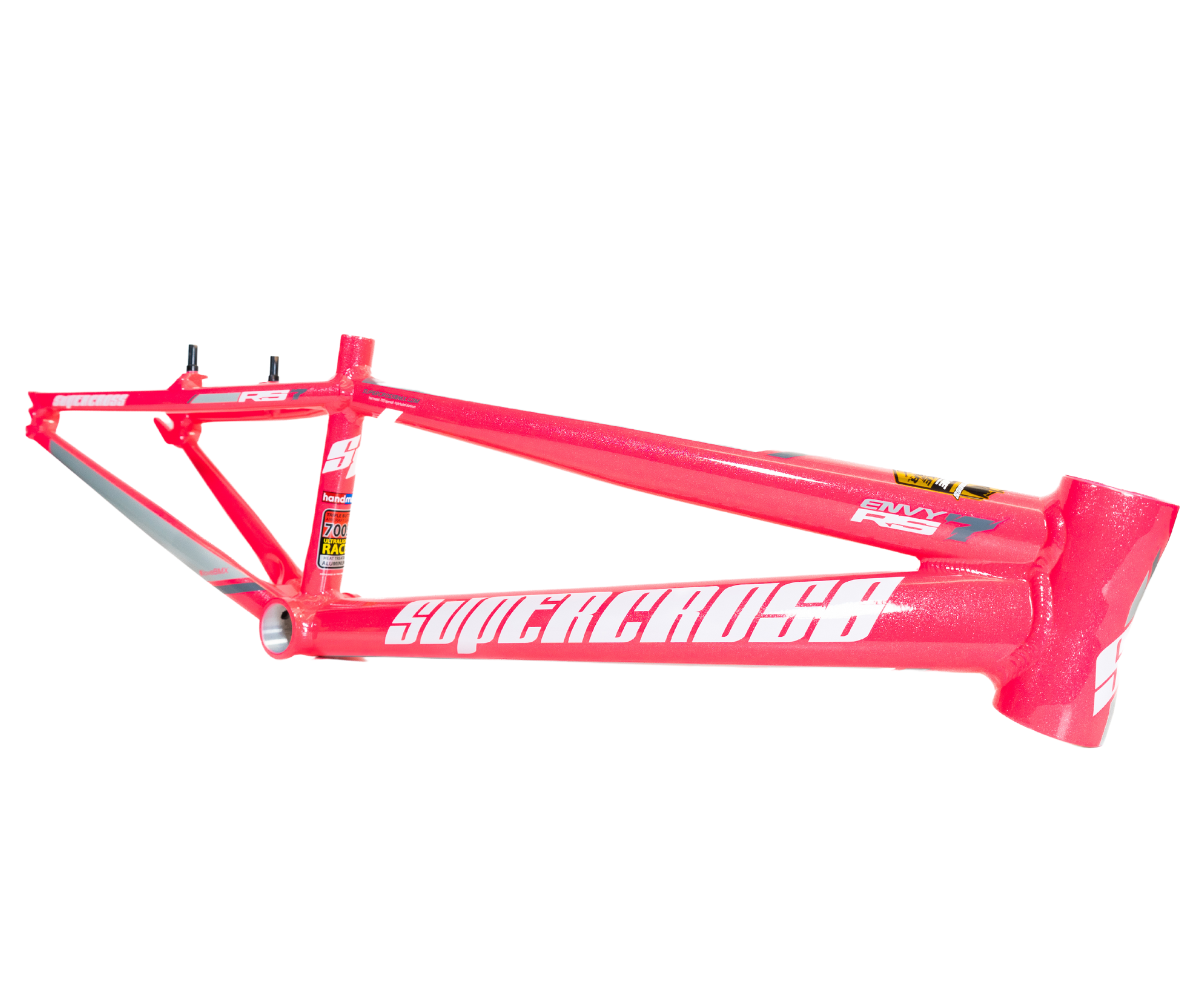

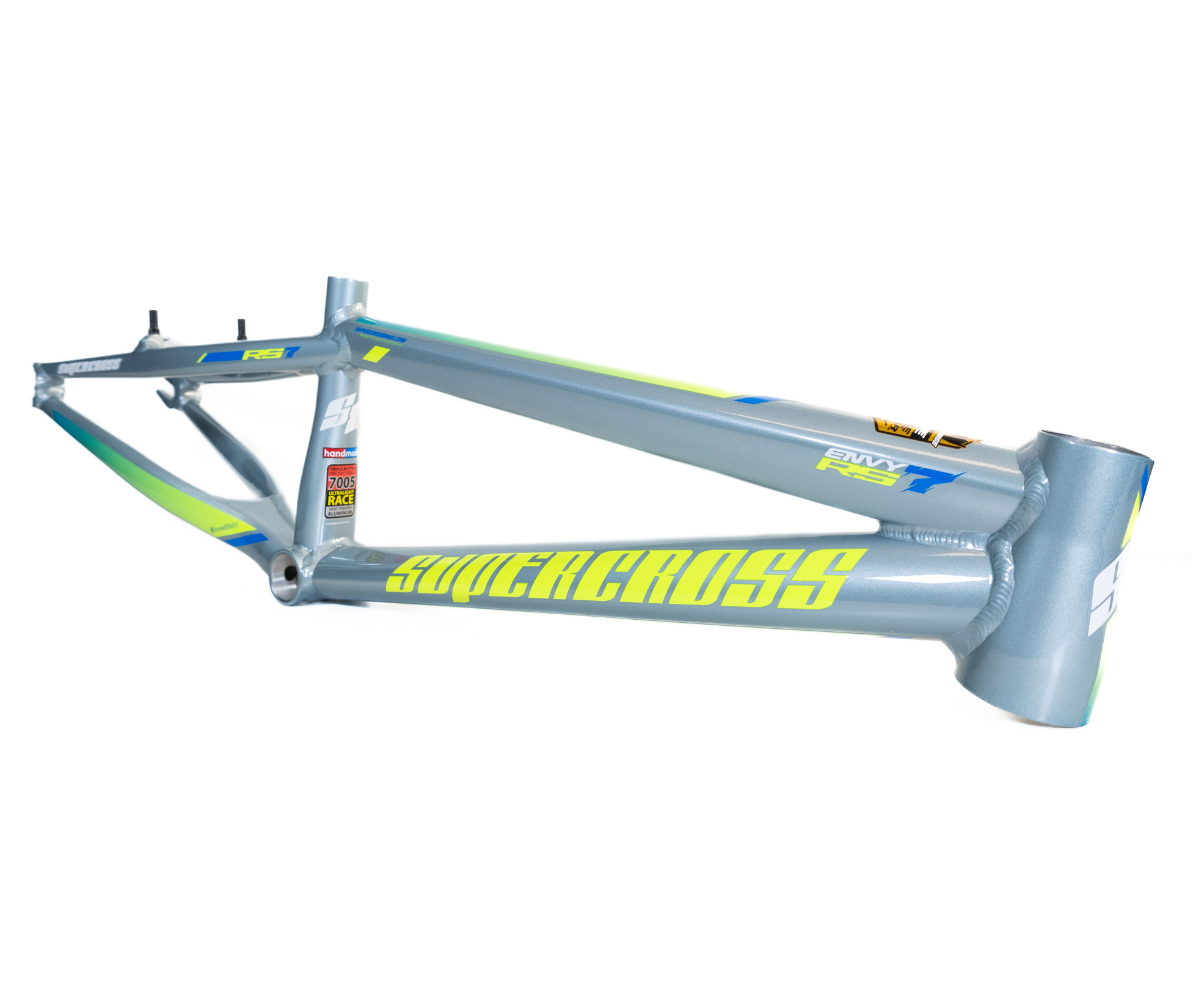

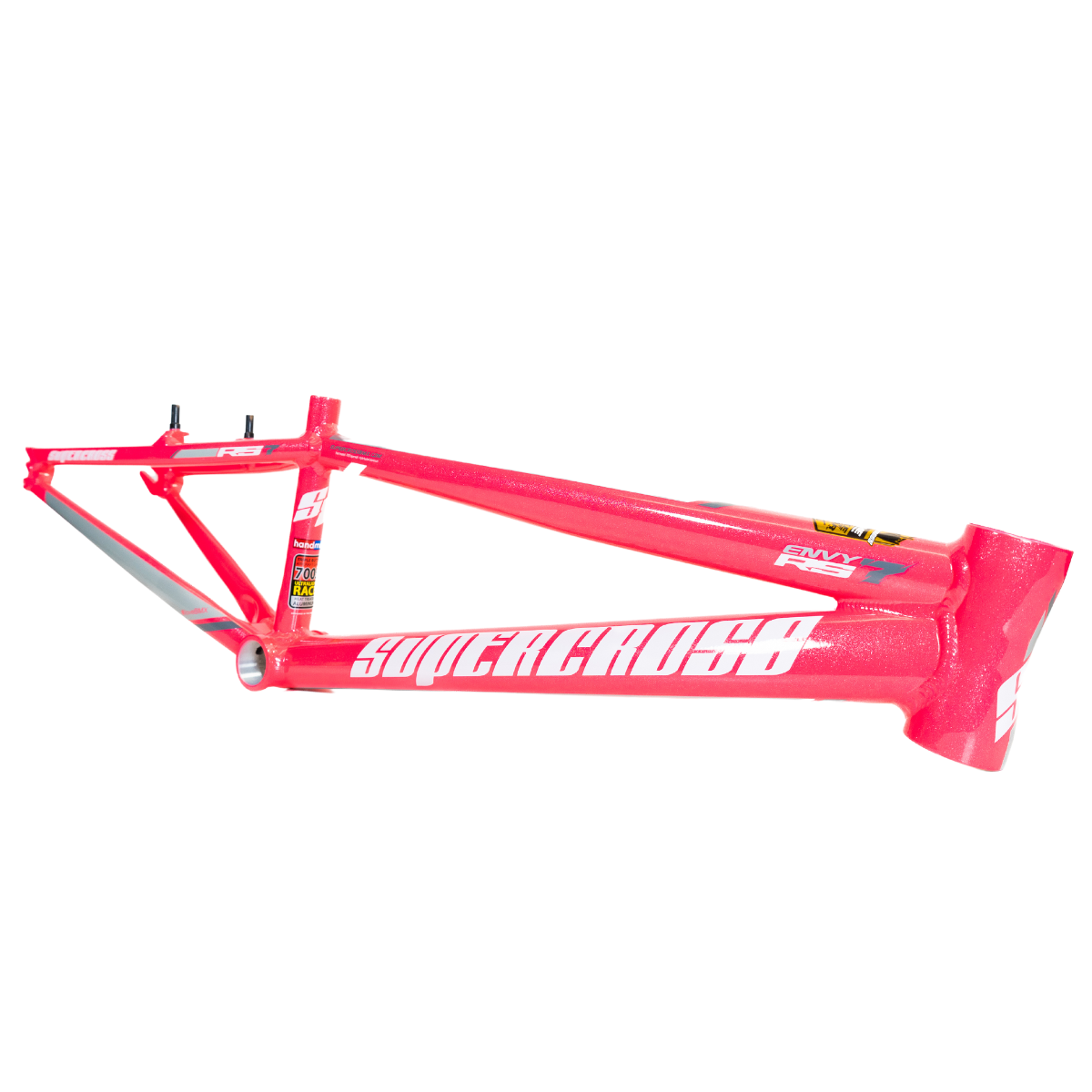

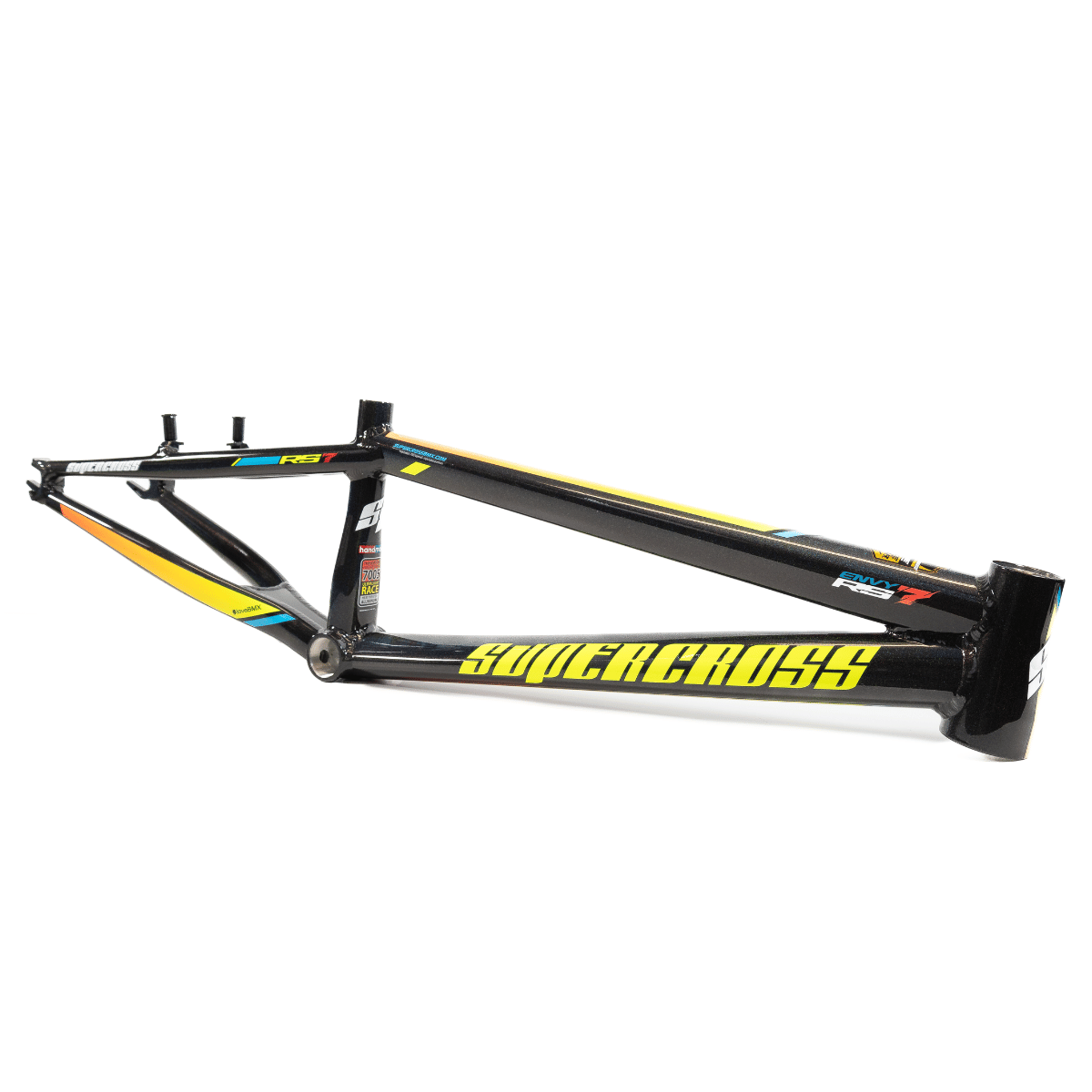

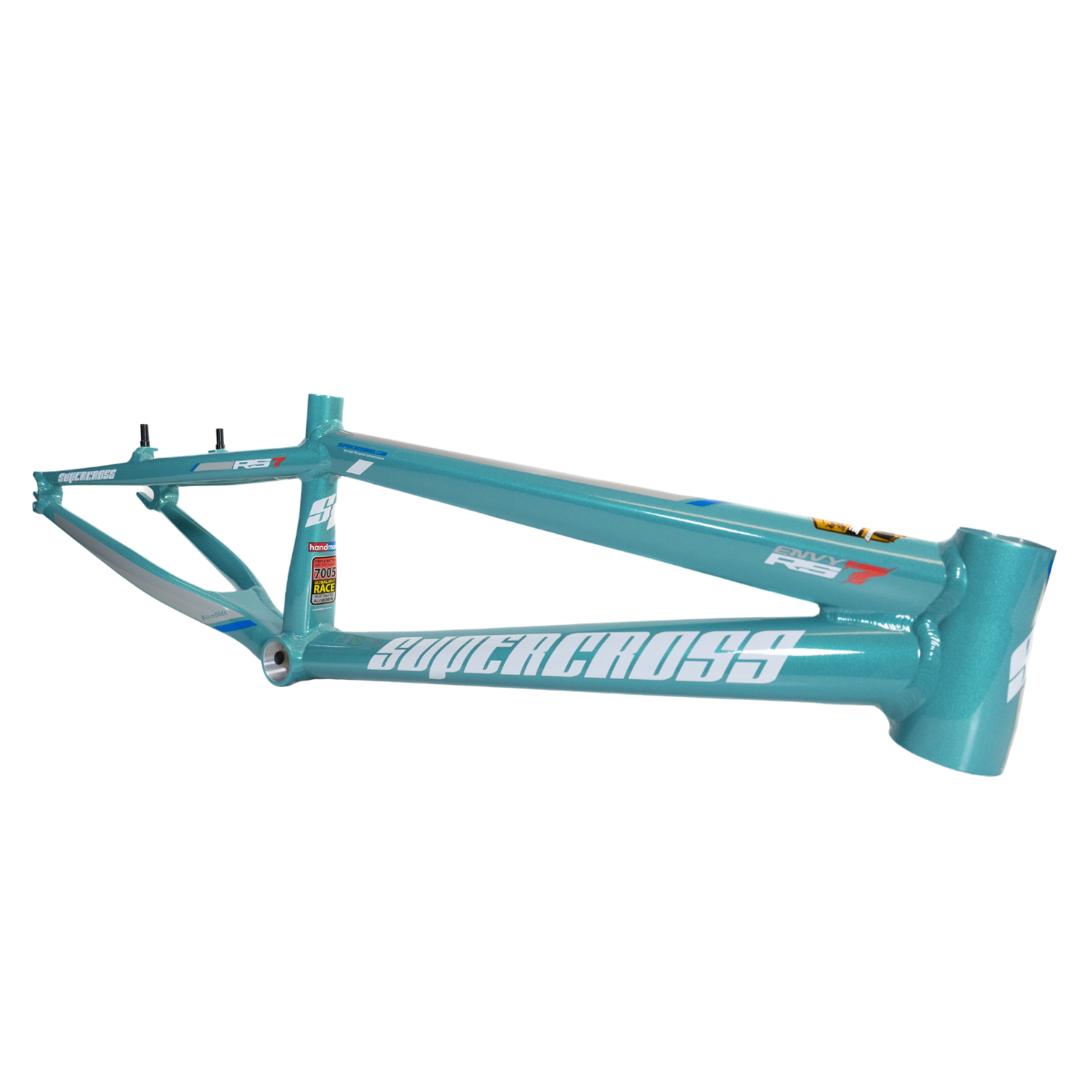

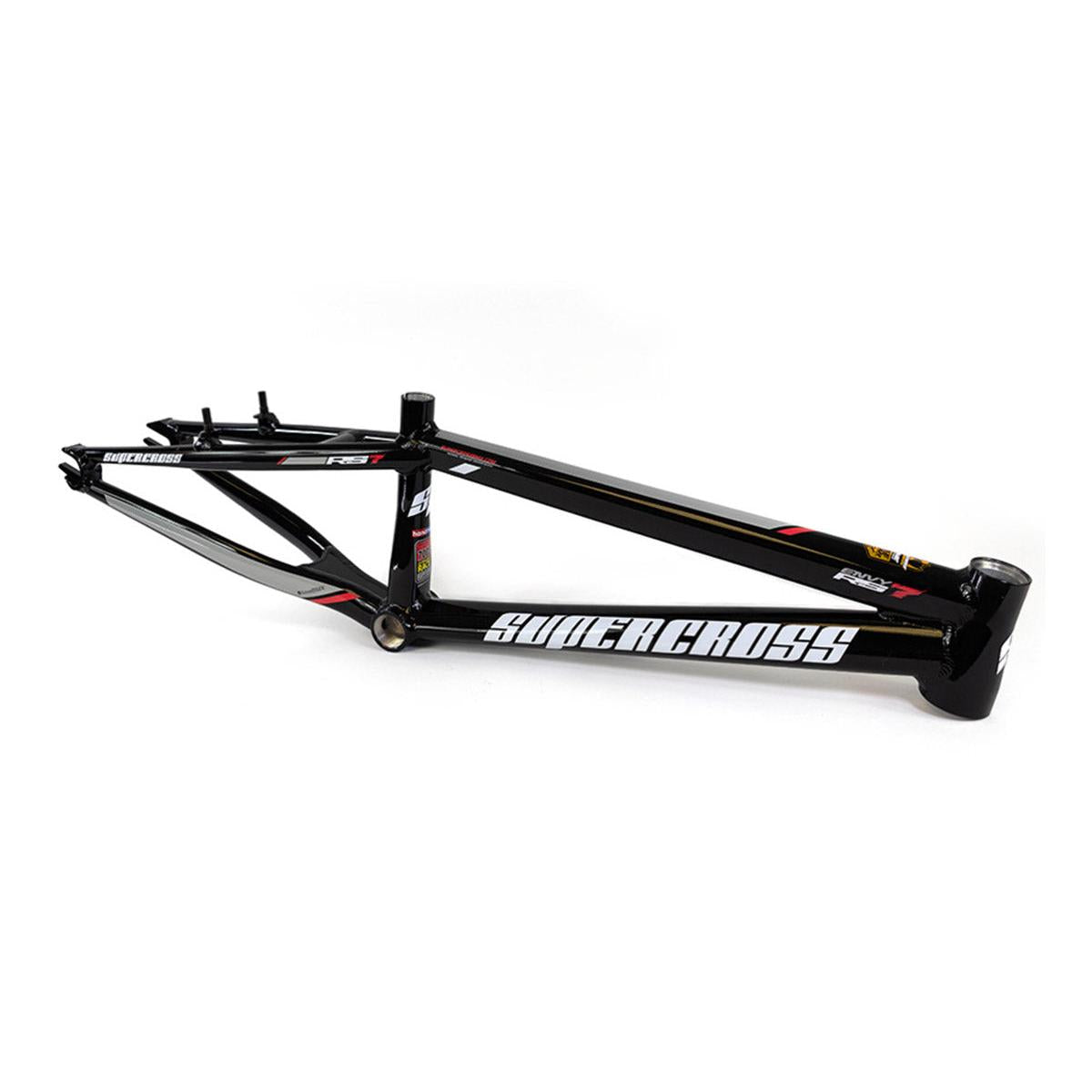

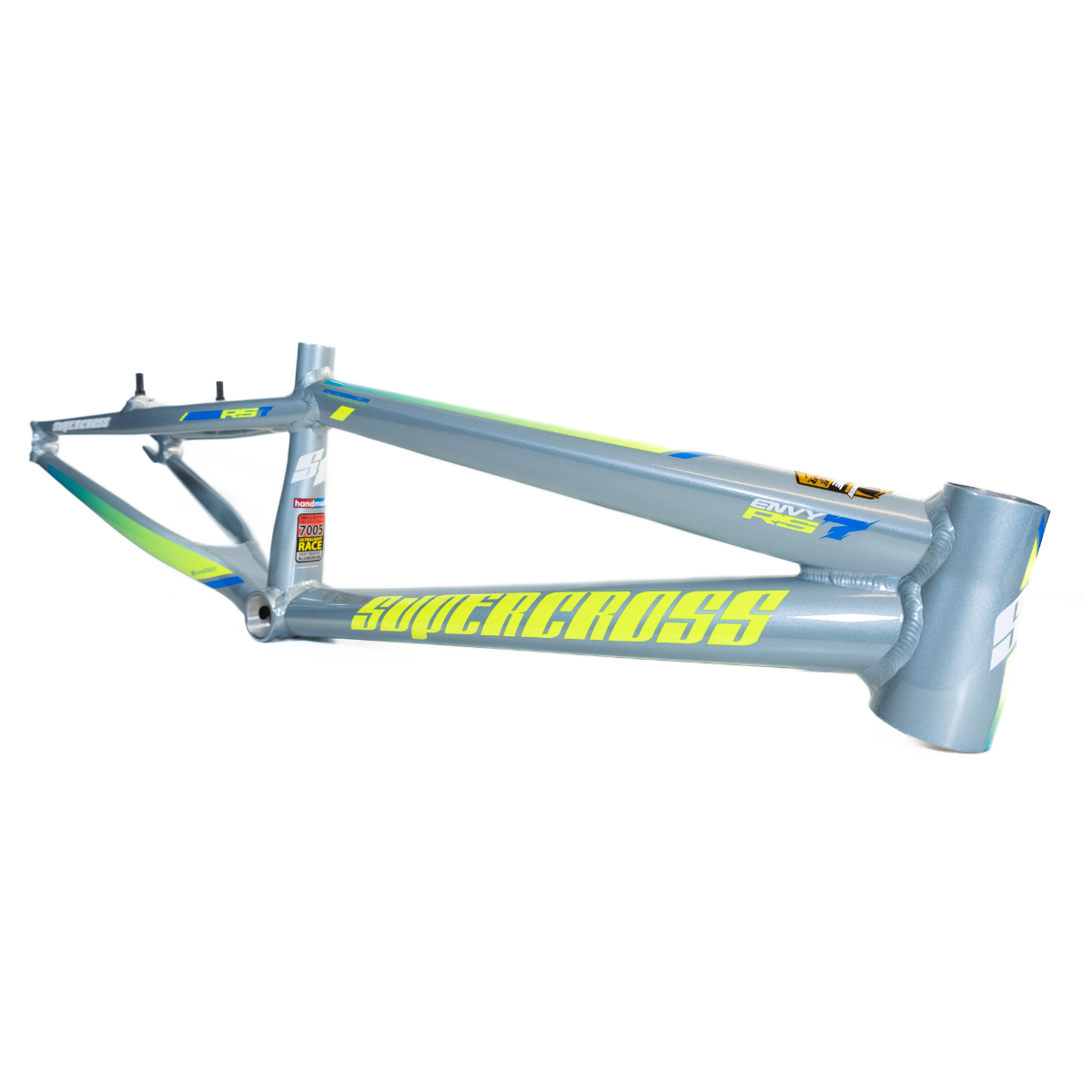

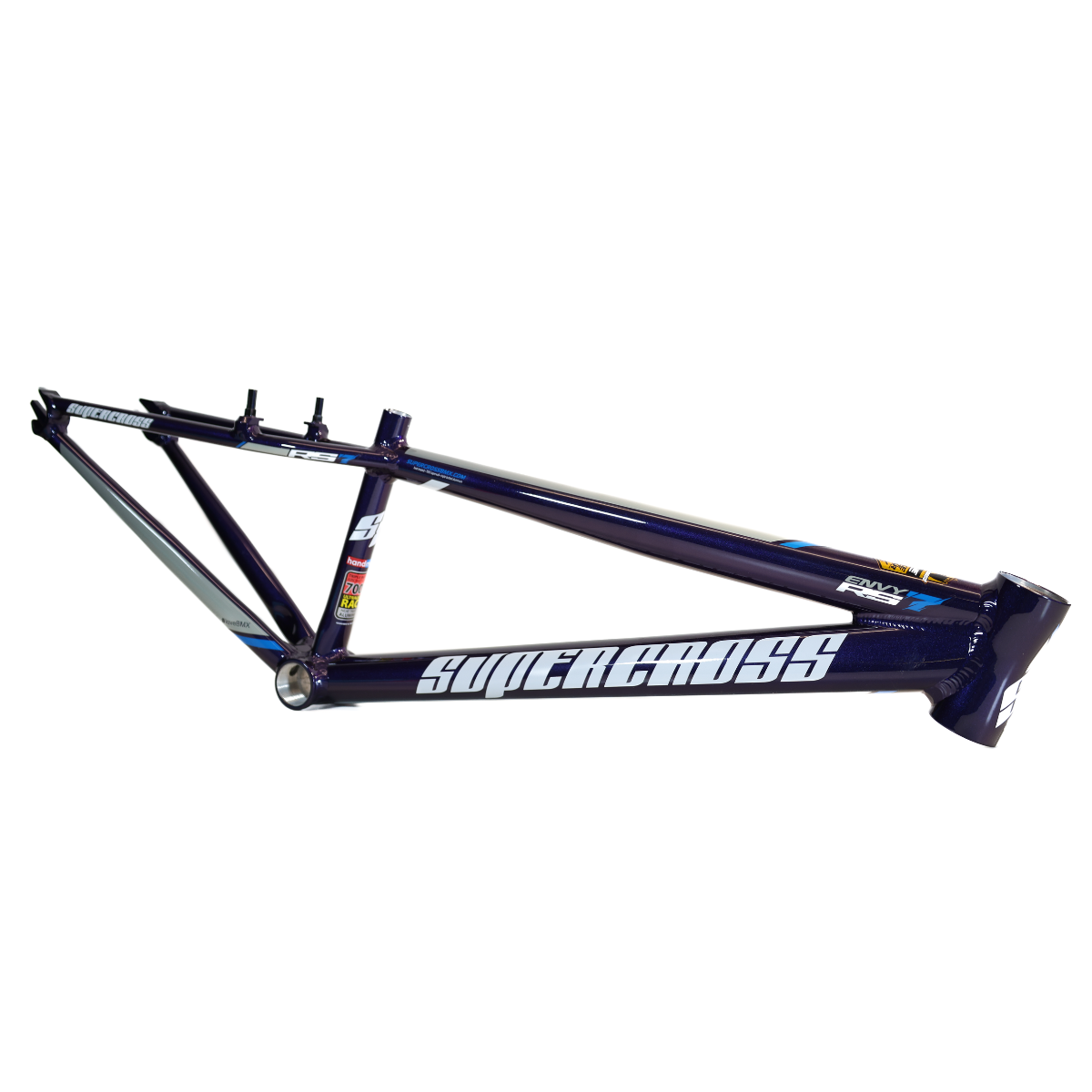

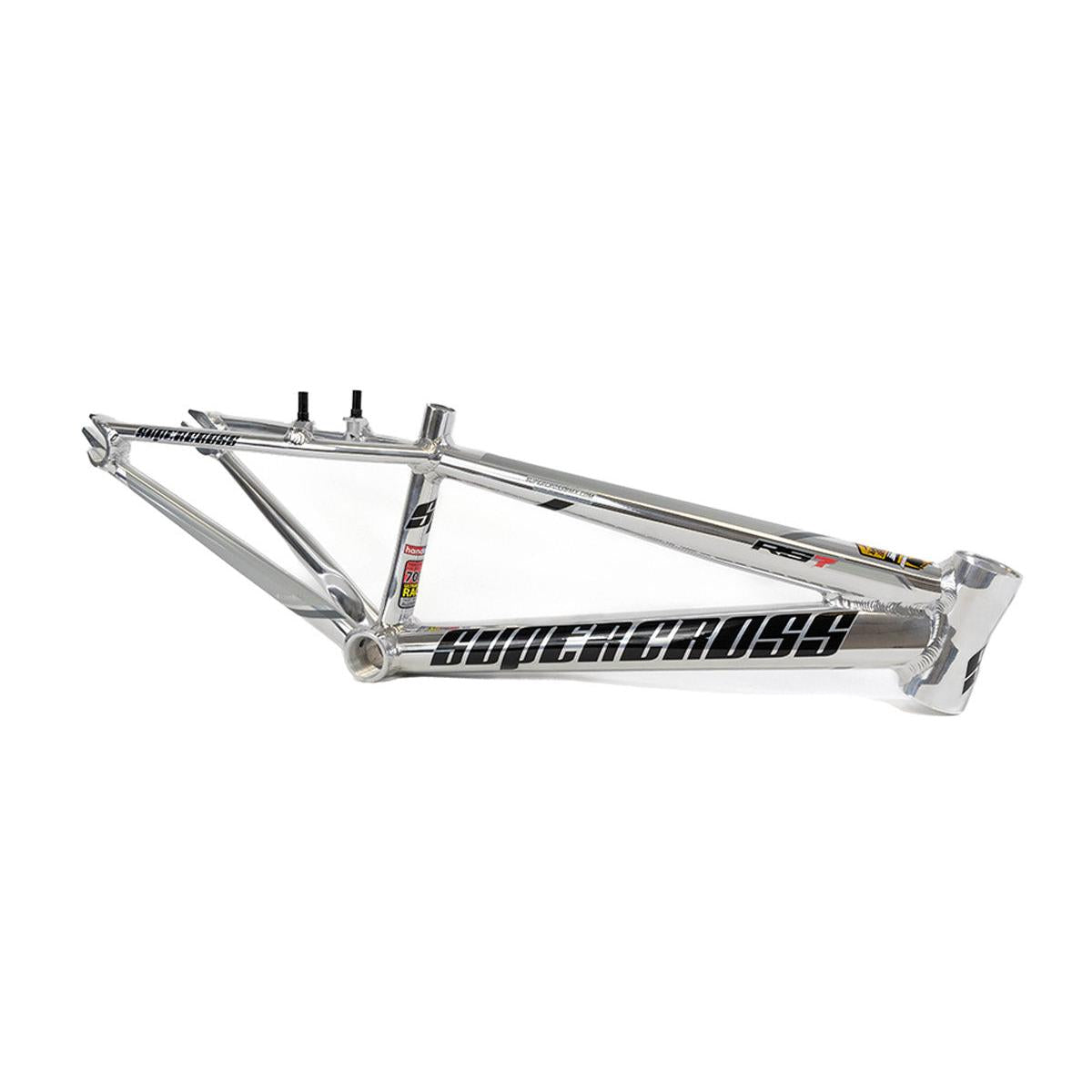

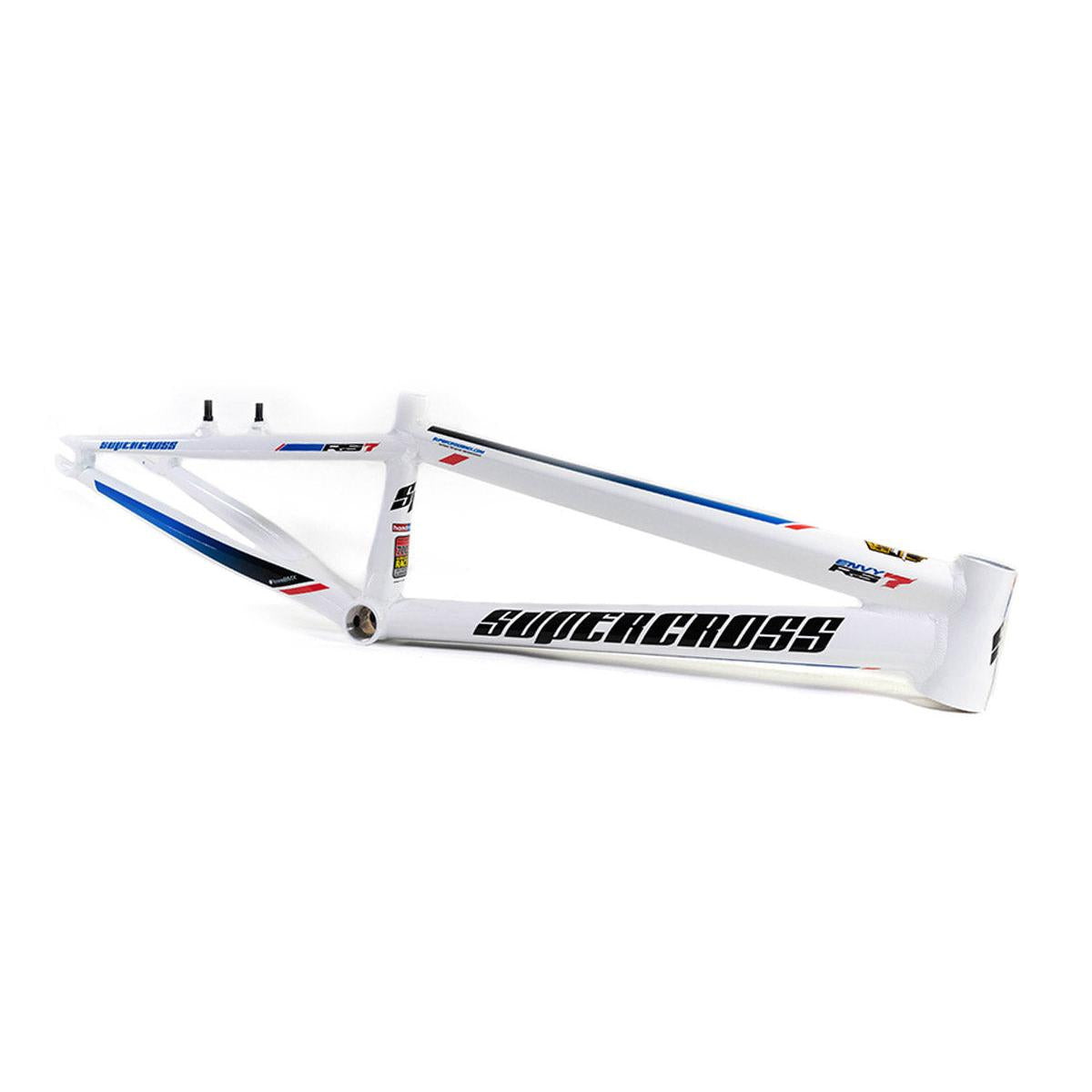

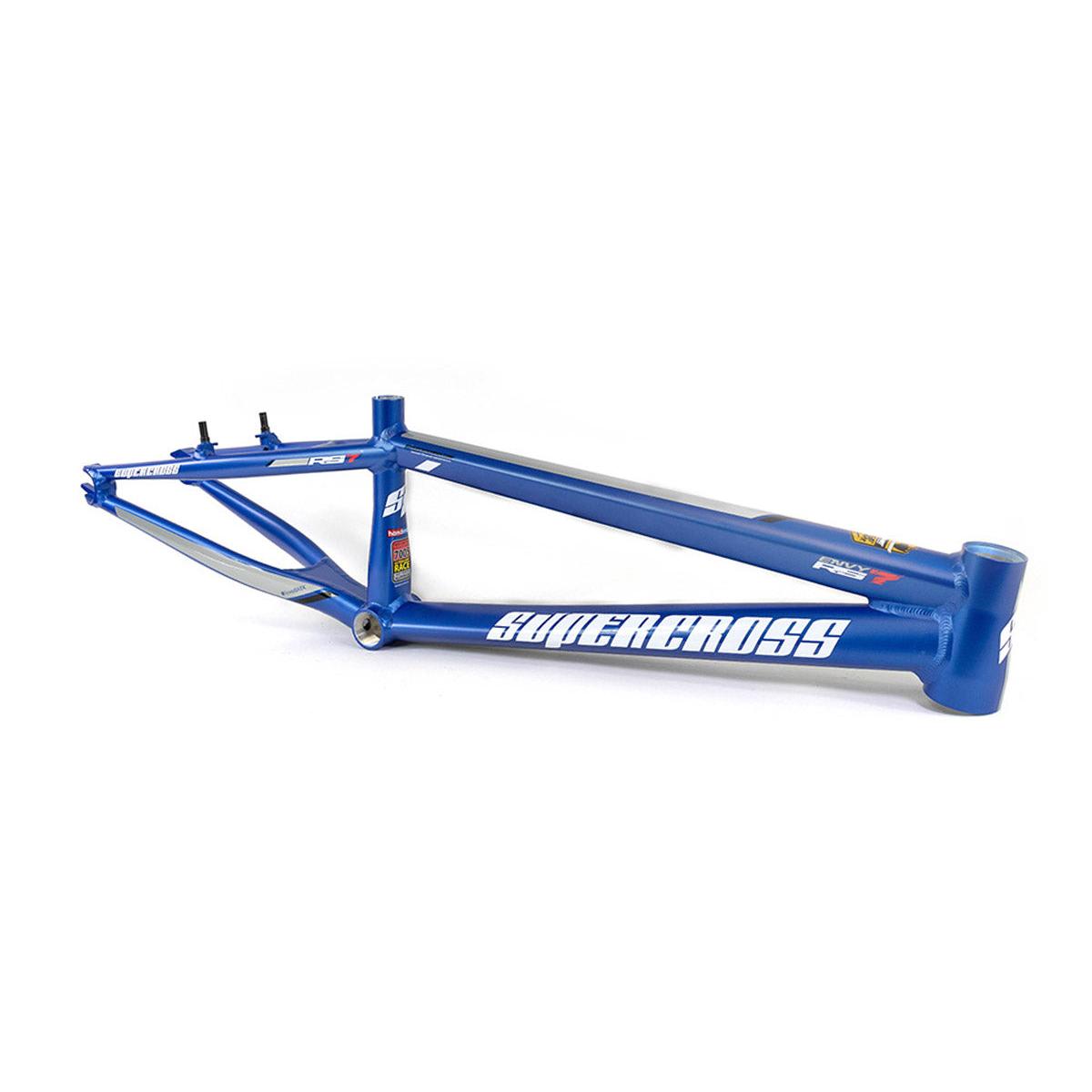

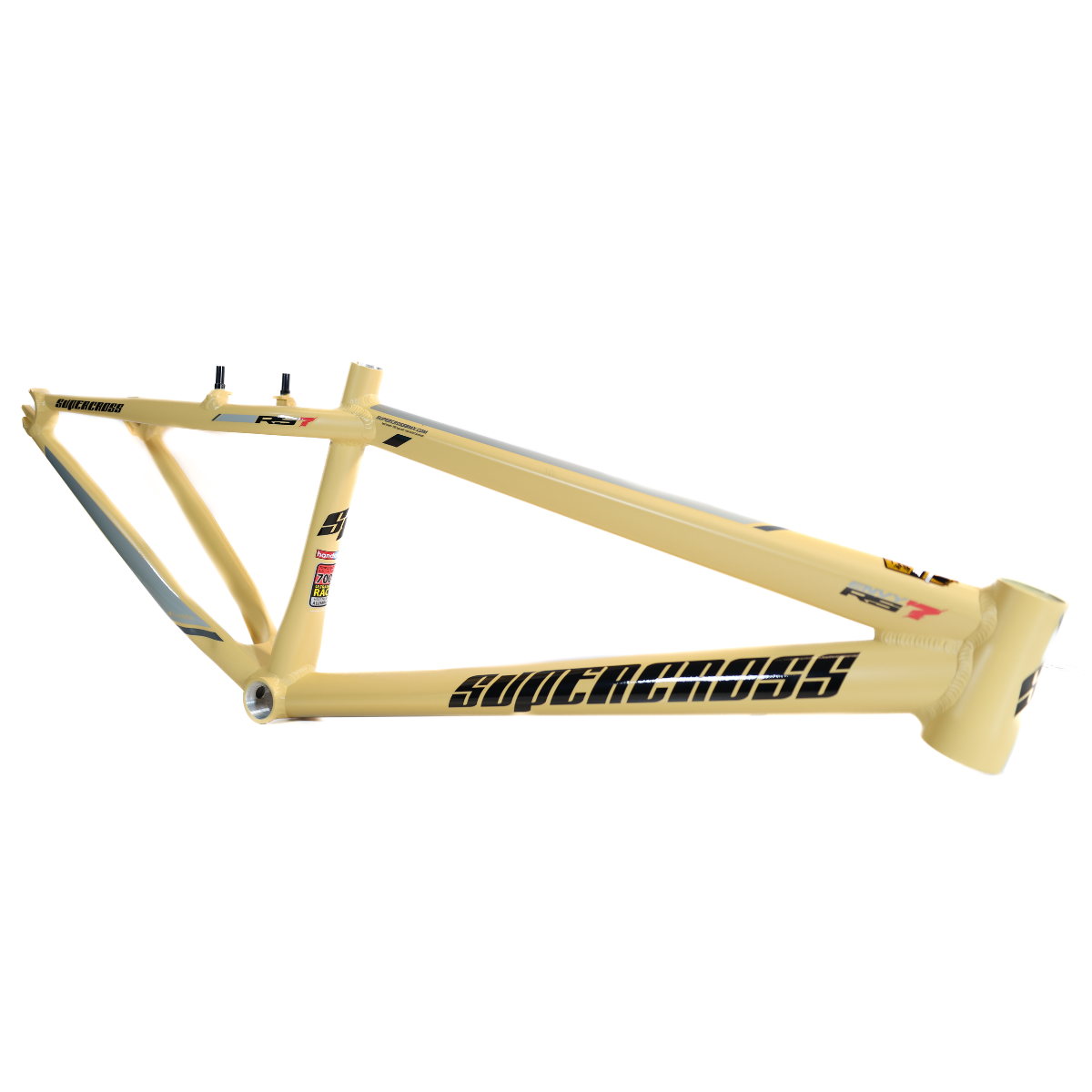

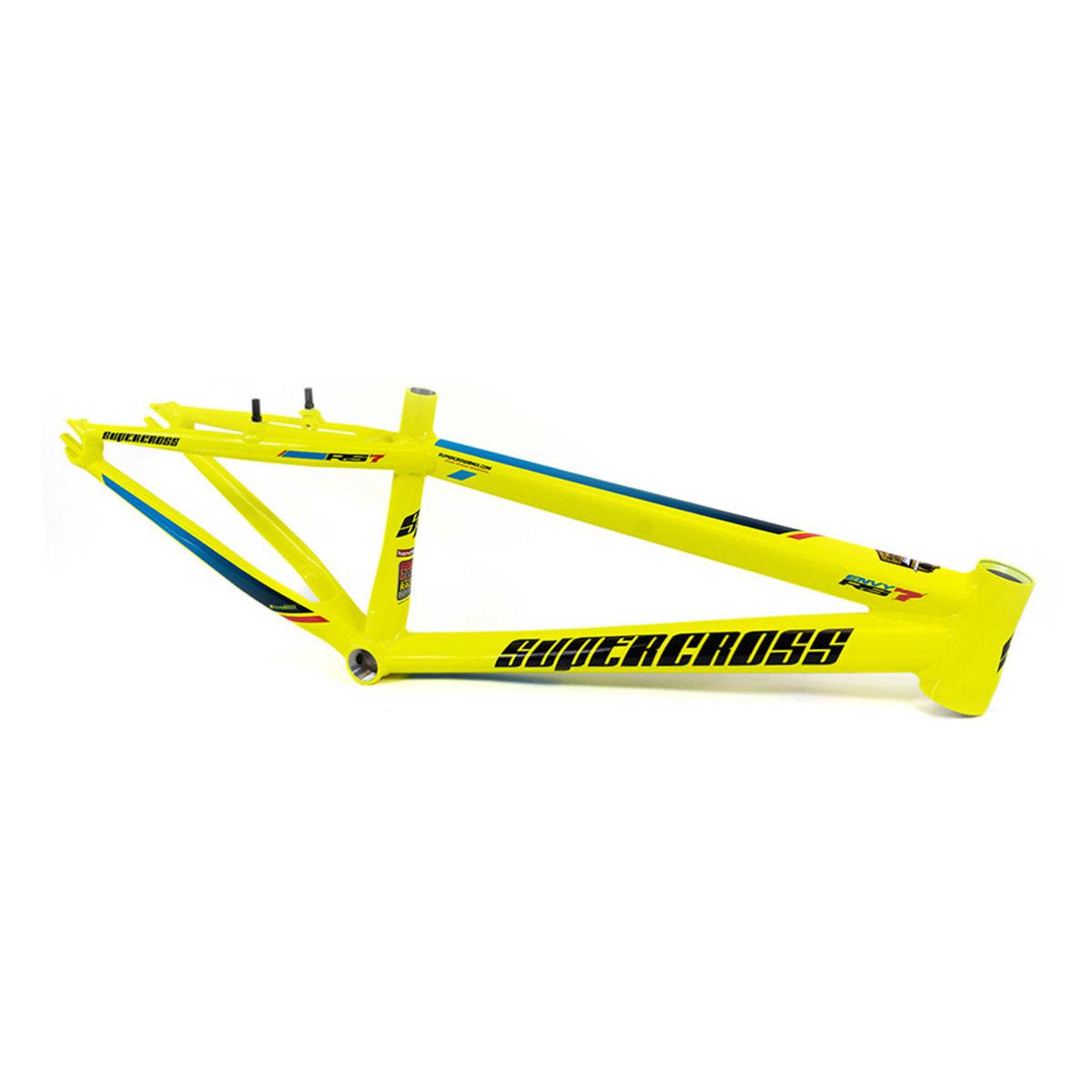

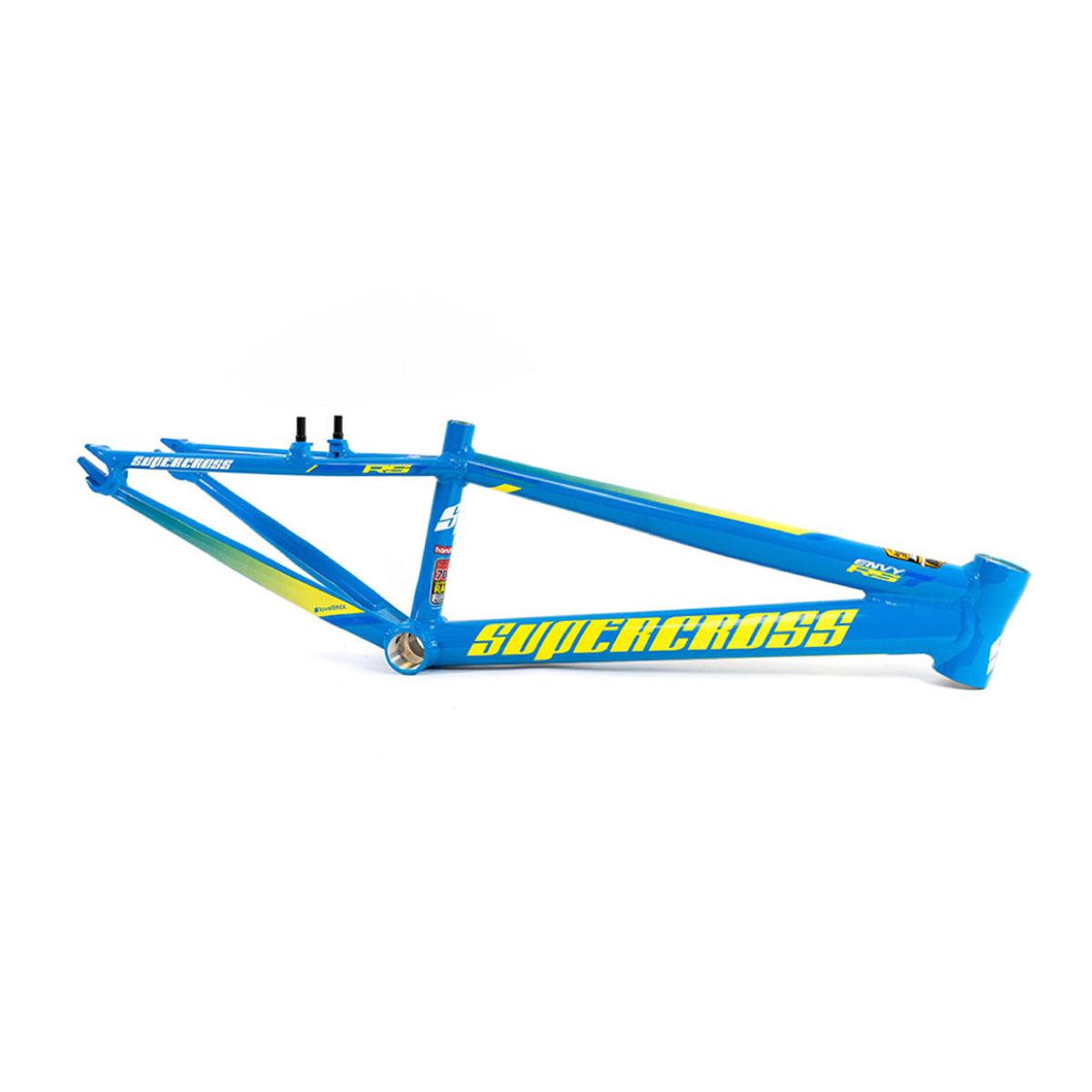

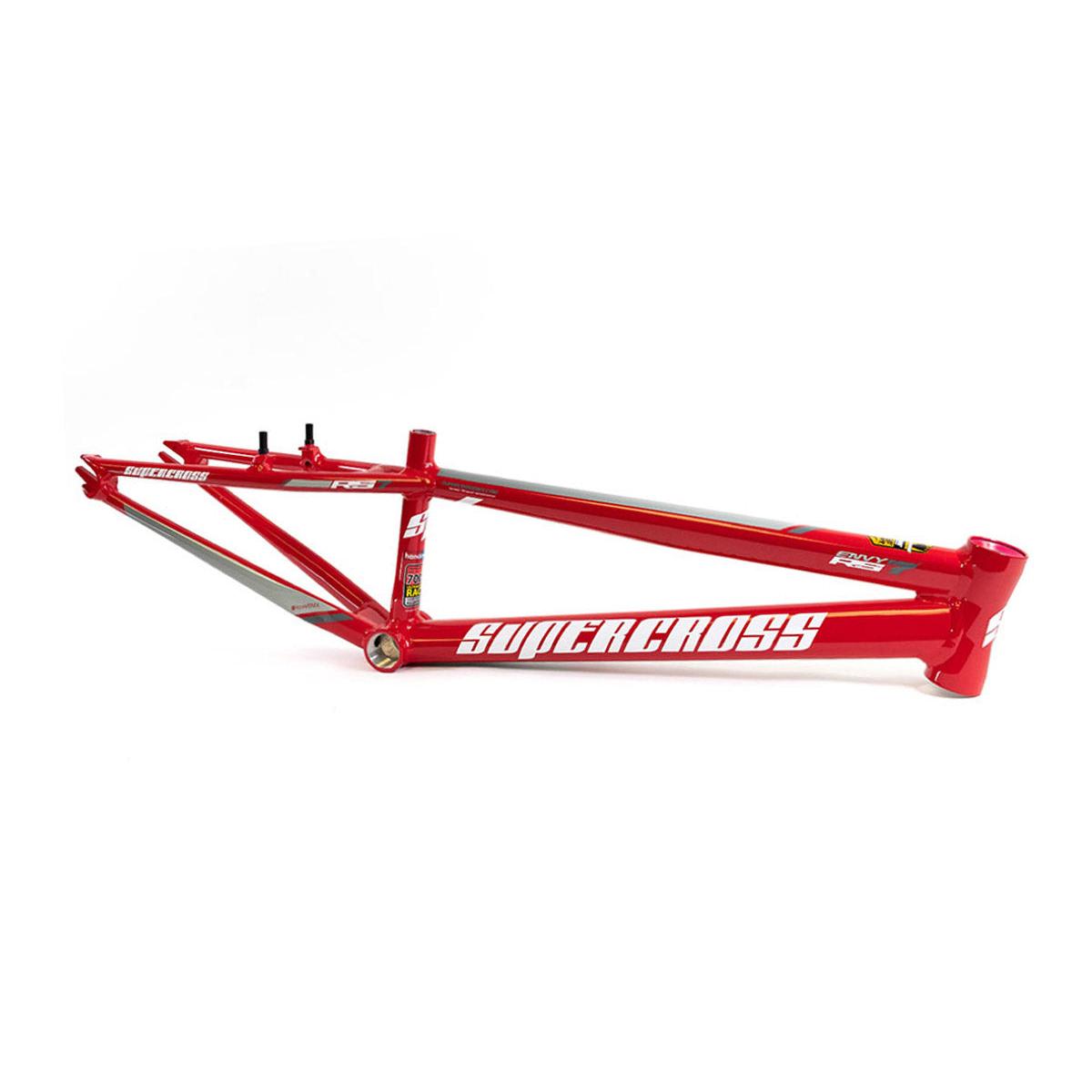

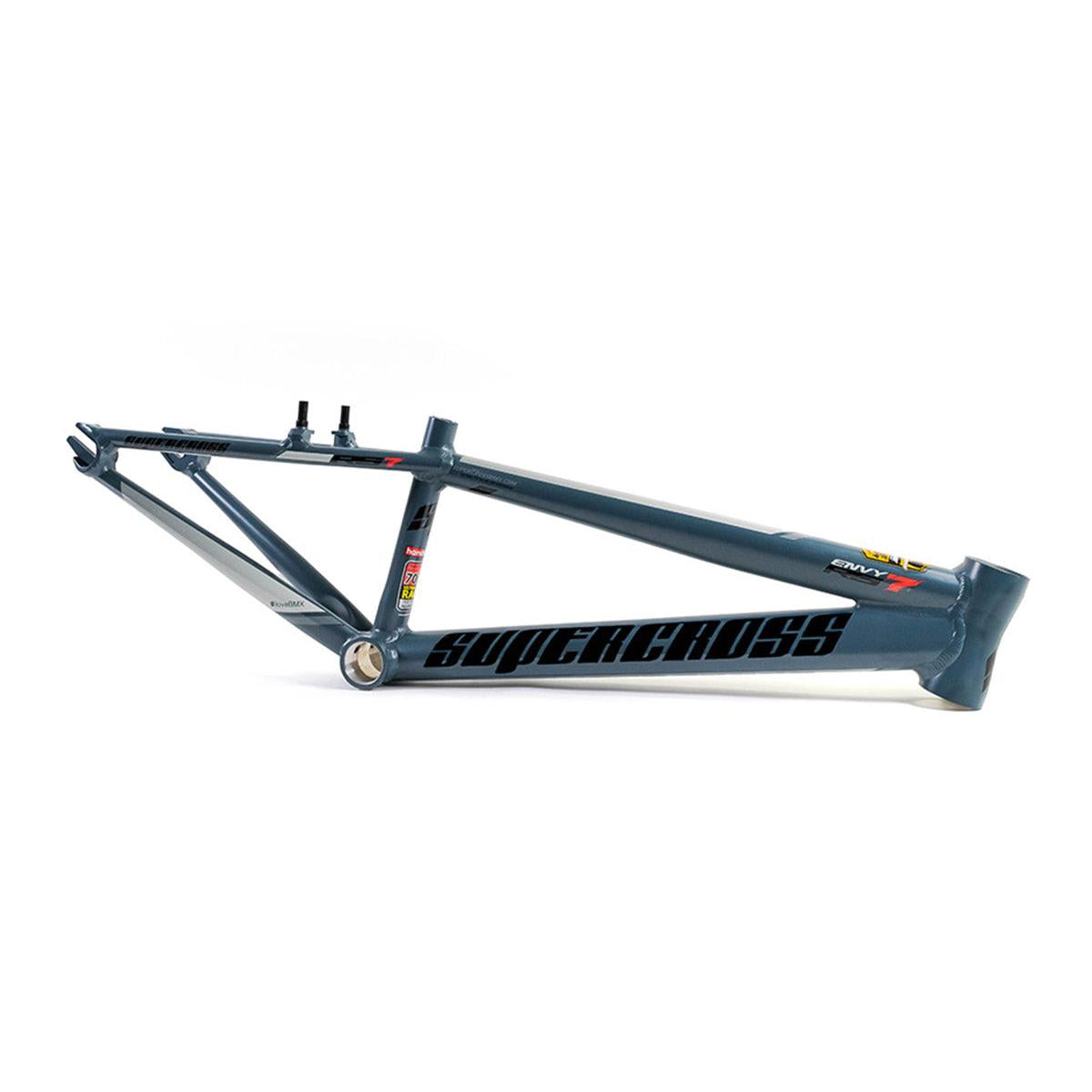

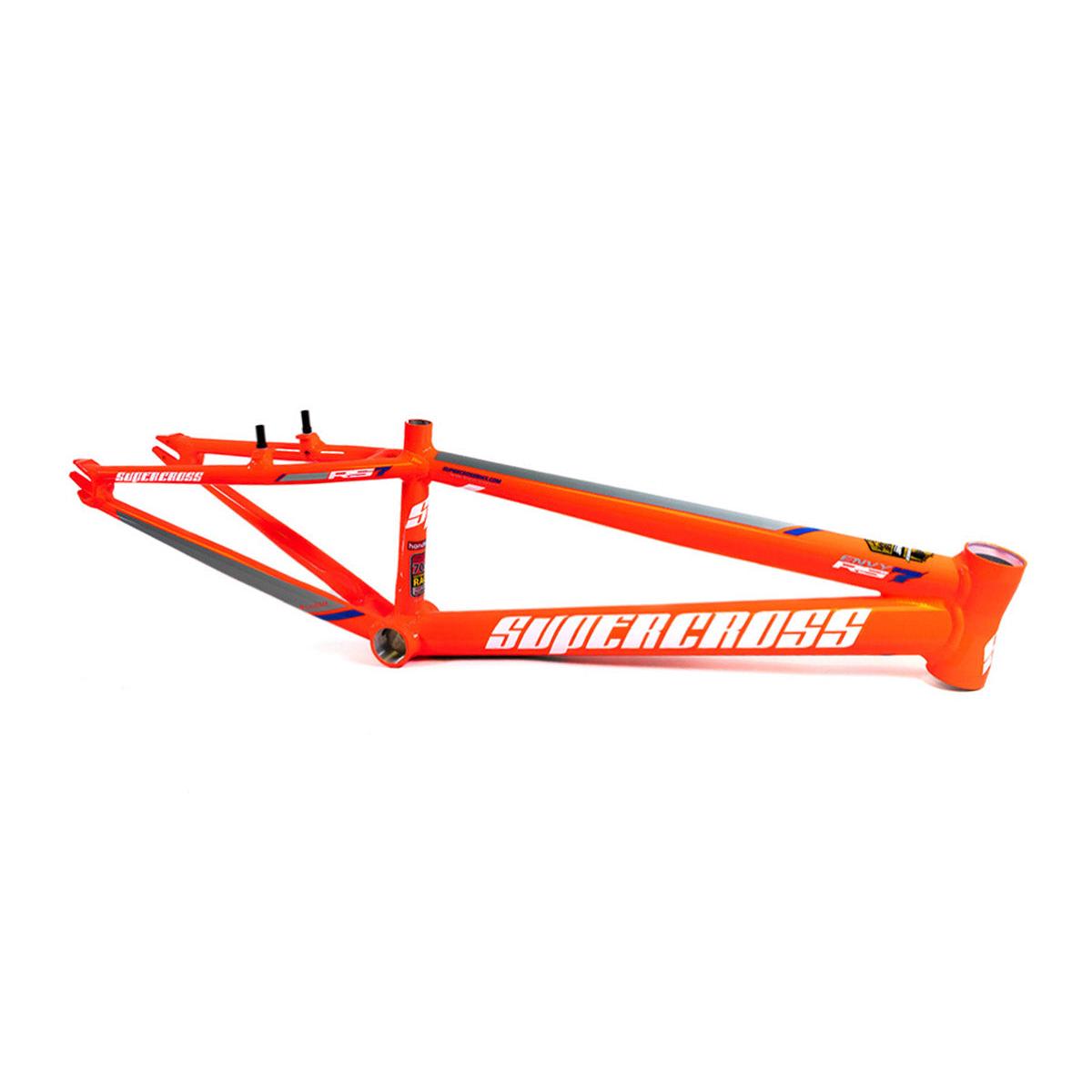

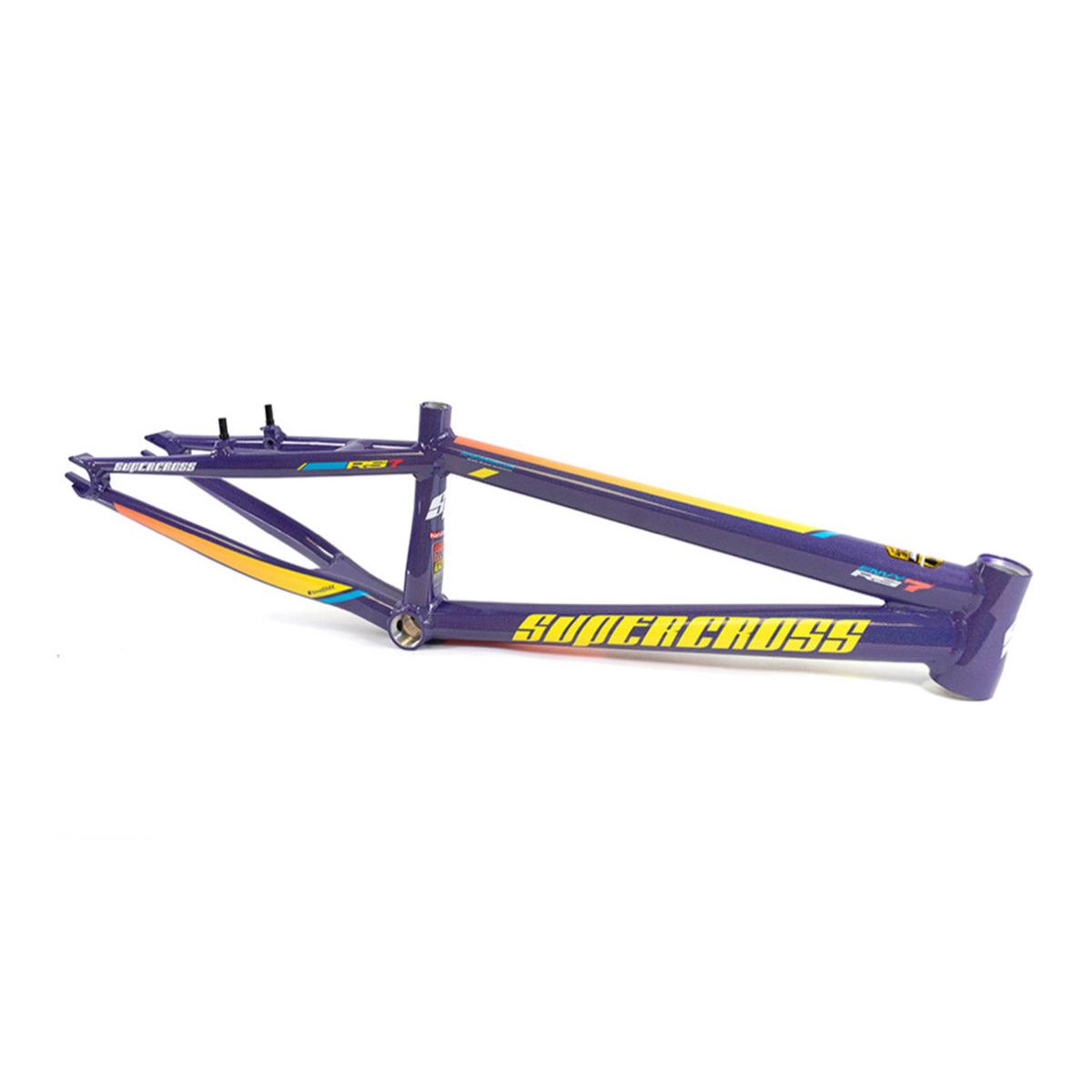

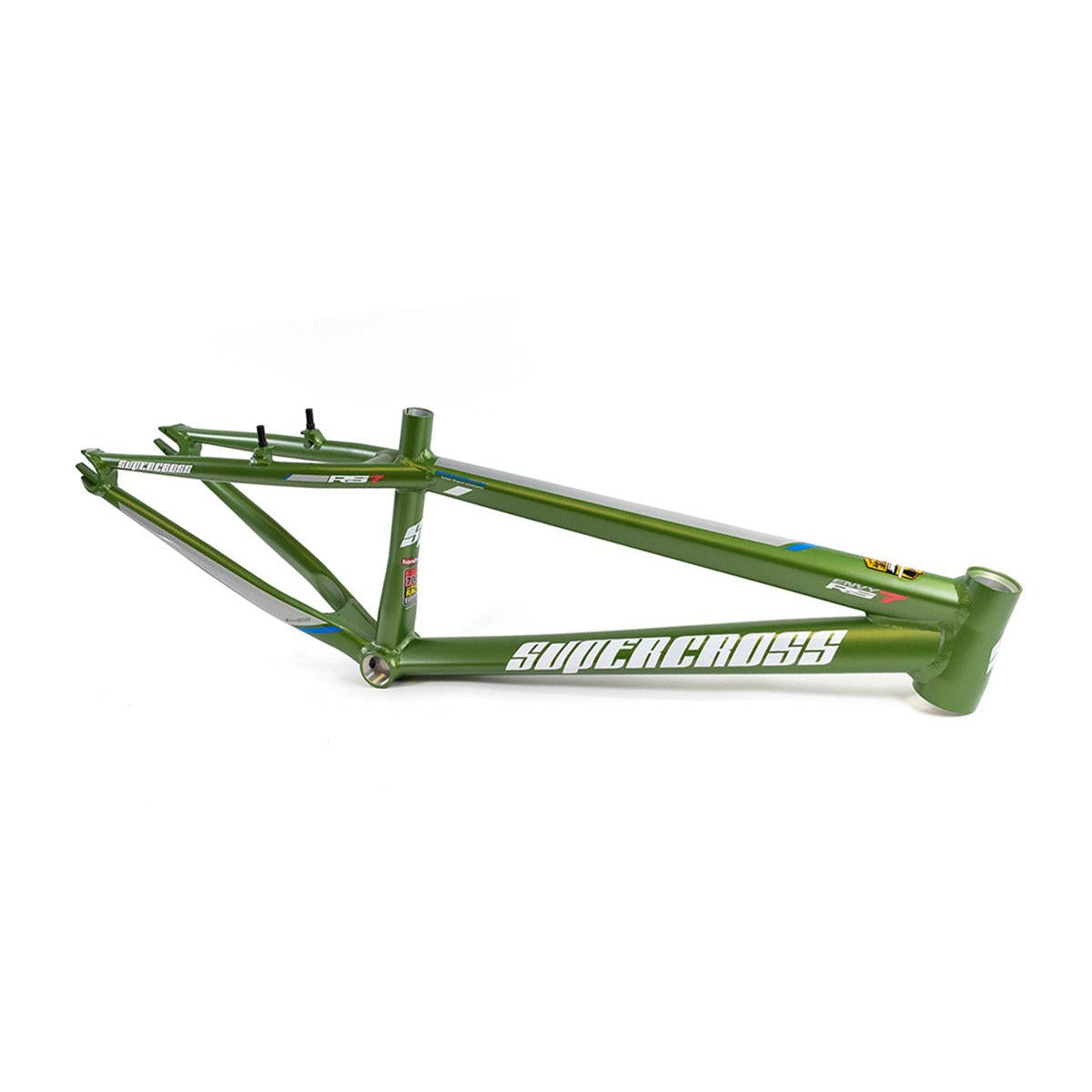

Supercross BMX | ENVY RS7 (Micro-Expert XXL 20") Triple Butted Aluminum BMX Race Frame
$ 699.95 - $ 749.95
- Overview
- Materials
- Geometry
This page is for the Micro - Expert XXL Frames
For the Pro 20" Frames, please click here.
For the 24" Cruisers, please click here.
Its evolutionary, not revolutionary - The Supercross ENVY RS7
7005 URL Ultra Light triple-butted custom-shaped tubing
Enhanced BB support and power transfer
Cold-forged bottom bracket shells with cold-rolled threads
Fine-tuned butting profiles for perfect balance of strength, stiffness and weight
Revamped head tube shaping featuring thicker bearing race seats and walls
3D CNC’d rear dropouts
Fully boxed-in chainstays with 7005 sheet aluminum
Available in 18 different sizes and 12 different stock colors
THE ENVY RS7 IS BUILT WITH THE BEST MATERIALS, KEEPING YOU LOOKING YOUR BEST ON THE TRACK.
The Supercross ENVY RS7 utilizes our special blend of 7005 ULR Ultra Light triple-butted custom-shaped tubing that is a direct result of working with Easton® Tubesets for over a decade. Why 7005 Aluminum, you ask? 7005 has higher strength and yield than 6061 when properly aged and heat treated. Kind of a Superhero of Aluminum. Sound too good to be true? We thought so too, but after a decade of real-world testing, we can tell you that this frame is the real deal. Ultra stiff, yet incredibly light.
Now to you Supercross fans, you will know that the 7005 ULR tubing has been used on all our ENVY Aluminum race frames for the last 10 years, so what makes the RS7 new?
The RS7 is the next evolution of the original ENVY frame. So it shares many of the previous improvements while bringing a few of its own to the party.
SUPERCROSS BMX ENVY RS7 ALUMINUM RACE FRAME GEOMETRY CHART
| Size | A | B | C | D | E | Post Size | Fork | Wheel Size | Weight |
| Micro | 16.75" | 12.0" | 72º | 70º | 10.3" | 22.2mm | 1 Threadless | 20 X 1 | 2lbs |
| Mini | 17.5" | 12.25" | 72º | 70º | 10.7" | 22.2mm | 1 Threadless | 20 X 1 1/8 | 2lbs 1oz |
| Jr. | 18.5" | 12.5" | 73.5º | 70º | 10.7" | 22.2mm | 1 Threadless | 20 X 1 1/8 | 2lbs 2oz |
| Jr. Plus | 19" | 12.5" | 73.5º | 70º | 10.7" | 22.2mm | 1 Threadless | 20 X 1 1/8 | 2lbs 3oz |
| Expert | 19.5" | 13.75" | 74º | 70º | 11.2" | 22.2mm | 1 Threadless | 20 X 1 3/8 | 2lbs 5oz |
| Expert XL | 20" | 14.0" | 74º | 70º | 11.2" | 22.2mm | 1 Threadless | 20 X 1 3/8 | 2lbs 6.5oz |
| Expert XXL | 21" | 14.0" | 74.5º | 70º | 11.2" | 22.2mm | 1 Threadless | 20 X 1 3/8 | 2lbs 8.8oz |
All weights are measured on a UPS Calibrated Scale. Weights will vary depending upon the amount of powdercoat and the amount of filler rod used on a particular frame. Polished Frames and Anodized Frames are the lightest as there is no paint. Weights and Specifications are subject to change without notice.
Please note: Pro Sized and Larger Frames have the LUG behind the BB shell for the increased Stiffness. Smaller Frames, Expert XXL and down, have a tube brace, but the Chain Stays are welded directly to the BB shell without the boxing.
