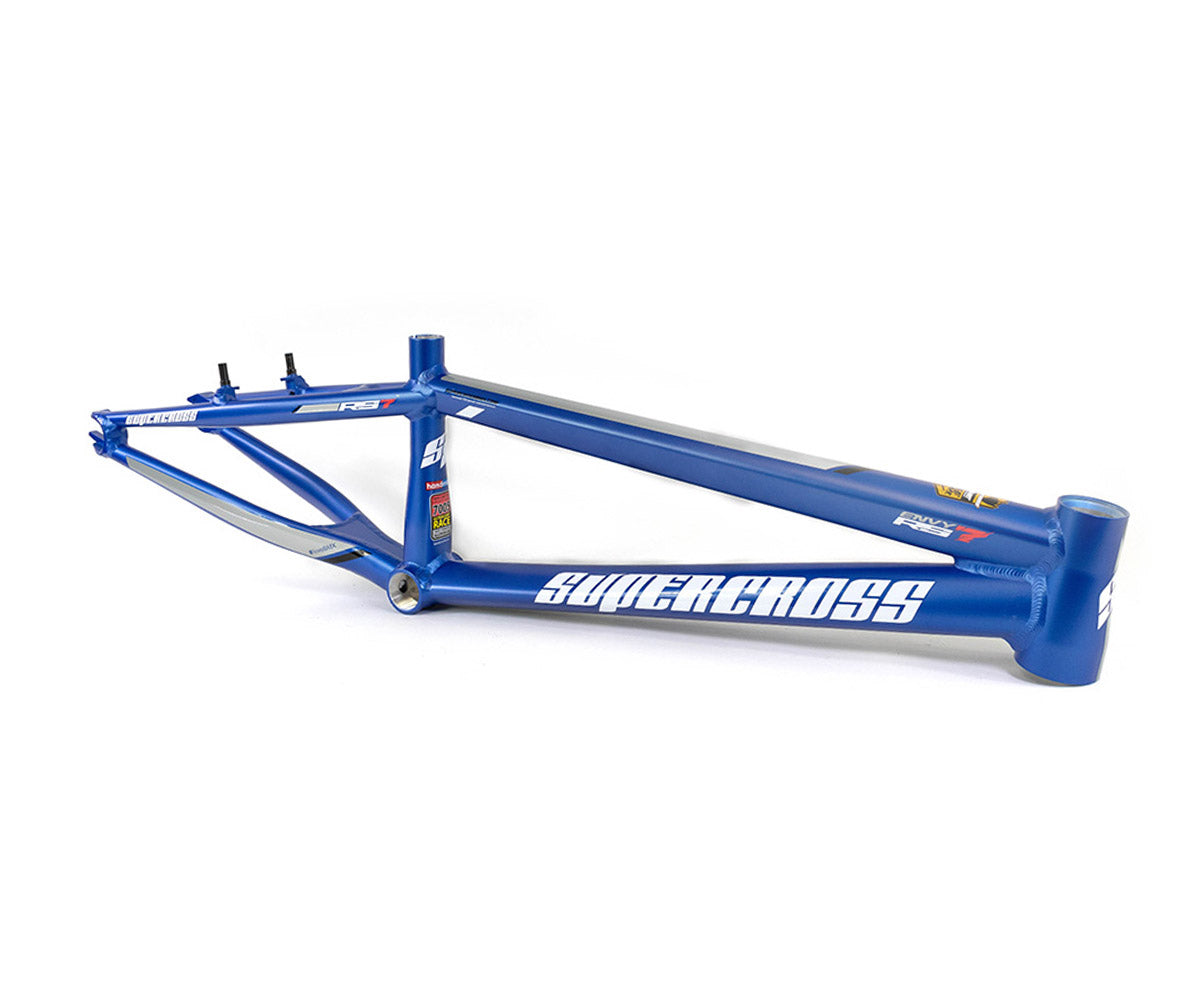

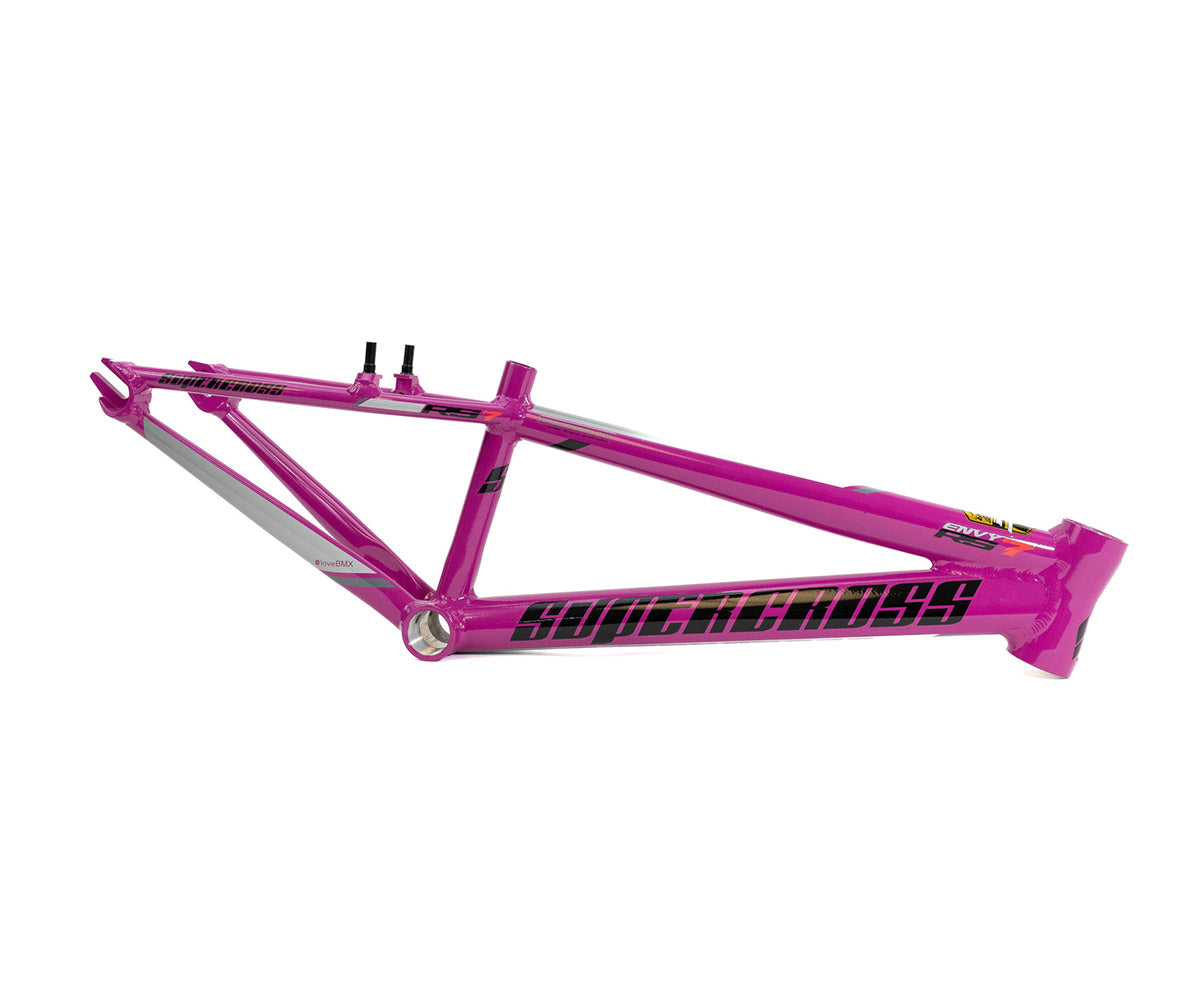

Supercross BMX | The ENVY RS7 Triple Butted Aluminum BMX Race Frame

Arrival Date: Feb 25, 2022

This page is for the 20" Frames. For the 24" Cruisers, please click here.

Its evolutionary, not revolutionary - The Supercross ENVY RS7

10 years ago we created the first BMX Superframe, the Supercross S7. It was developed to be the Ultimate BMX Race frame, and it proved to be just that. It was ultra light, incredibly responsive, super strong, and pretty expensive. But it displayed that you can build a sub 3lb Aluminum race frame that will last for multiple seasons. This Superframe laid the frame work for our ENVY line of race frames and now 10 years later, we introduce you to the latest addition to the Envy line, the Evny RS7!

The Supercross ENVY RS7 utilizes our special blend of 7005 ULR Ultra Light triple butted custom shaped tubing that is a direct result of working with Easton® Tubesets for over a decade. Why 7005 Aluminum you ask? 7005 has a higher strength and yield than 6061 when it is properly aged and heat treated. Kind of a Superhero of Aluminum. The perfect thing for your race bike. Sound too good to be true? Yea we thought so too, but after a decade of real world testing, we can tell you that this frame is the real deal. Ultra stiff, yet incredible light.

Now to you Supercross fans, you will know that the  7005 ULR tubing has been used on all our ENVY Aluminum race frames for the last 10 years, so what makes the RS7 new? Well remember the first line, it's evolutionary, well that's whats new. When we released the ENVY it was a cutting edge for the time, and then we found ways to make it better. So along came the v2, the v3, the v5, and now the RS7.

So the last 3 years while we have been perfecting carbon BMX racing technology with the ENVY BLK, we also took notes, feedback and listened to what the riders around the world have been saying about the ENVY v5. All in the pursuit of building you the perfect aluminum BMX racing frame.

Here’s a running list of the improvements we have made to the Envy line over the years, making the RS7 the best Aluminum Supercross frame to date!

Evolution #1 - Wider flared Seat masts for better BB support and power transfer resulting in faster launching. You will see that all seatmasts from the Micro to the Pro XXXL are of a new forming tool. Each size is optimized for rider weight and strength to maximize gate start launch.

Evolution #2 - Refined butting profiles to maximize strength and stiffness while minimizing weight. Every Supercross ENVY RS7 gets new triple butted 7005 ULR tube sets that are our own custom molds and dies specific for BMX Racing. This allows the frame to be stiffer, stronger and lighter across various areas of the frame.

Evolution #3 - Refined head tube shaping. This may seem like we are being overly critical, but we listened, and during travel, a few people stated they had problems with the airlines denting the head tubes on their ENVY's. We developed a new head tube that more closely mimics the shape of the ENVY BLK head tube and has thicker bearing race seats and walls, and it internally re leaved of the extra Aluminum. It may look like a larger heavier head tube, but it’s actually a heck of a lot stronger and lighter than other head tubes. The RS7 provides the stiffest front end across any of our previous aluminum models.

Evolution #4 - The new ENVY Rs7 also received an updated dropouts. They’re still 3D CNC'd with back side releavement to reduce weight. the dropouts are now cold forged to increase the strength and durability. While we were spending the money on the new cold forging die, we also changed the shape ever so slightly to allow your chain tensioner to work easier by maximizing the contact patch on the end of the dropout for ease of use.

Evolution #5- New Cold Forged Bottom Bracket Shells with cold rolled threads. We have always machined our BB threads after the final heat treating process to ensure the truest and longest lasting threads. But now we are using a new cold forged BB shell with a tighter grain density to better handle the extra power you are putting out. The new threads are rolled rather than cut to increase the life of your frame and ensuring the threads have a longer life.

Evolution #6 -

Are you getting the idea yet. We take the Supercross frames you love and continue to refine it for an even better ride and longer lasting frame over every generation!

Evolution #7 - This may be the largest of the changes, on Pro size and larger frames, we have always had the BB lug, where the chain stays are welded into the BB lug and the Lug welded to the BB shell. By doing this we maximized the weld area vs. having two tubes connect to the BB. Now on the ENVY RS7, we have taken that concept over the edge having the chainstays meet the BB shell at the widest point possible, leaving us with completely boxed in the chainstays with .058 7005 sheet aluminum. The BB area is now a larger box than what we accomplished with the old lug style, and increased your launch out of the gate where it is now nearing the performance of the carbon fiber ENVY BLK. The RS7 is the stiffest aluminum Supercross frame to date!

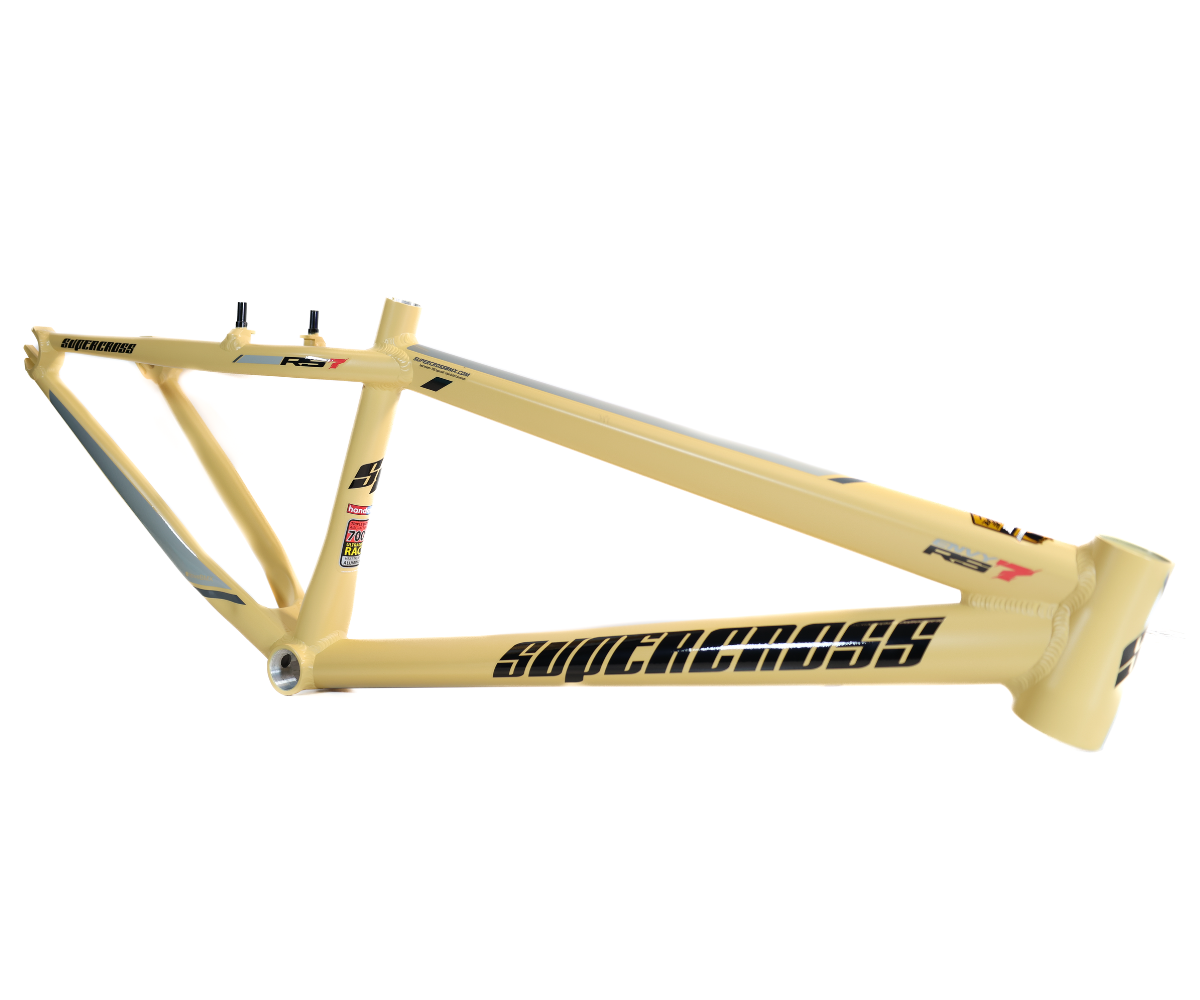

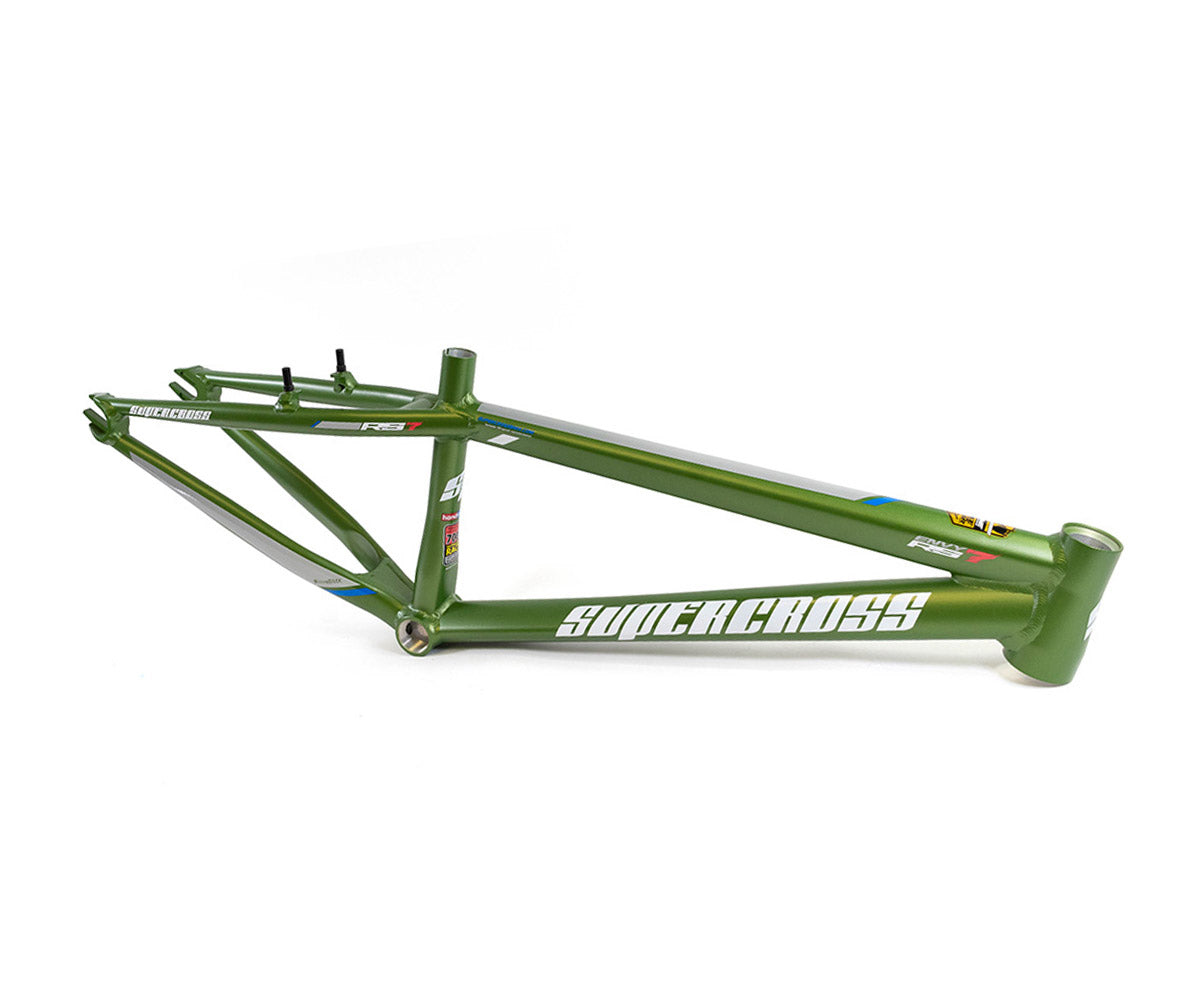

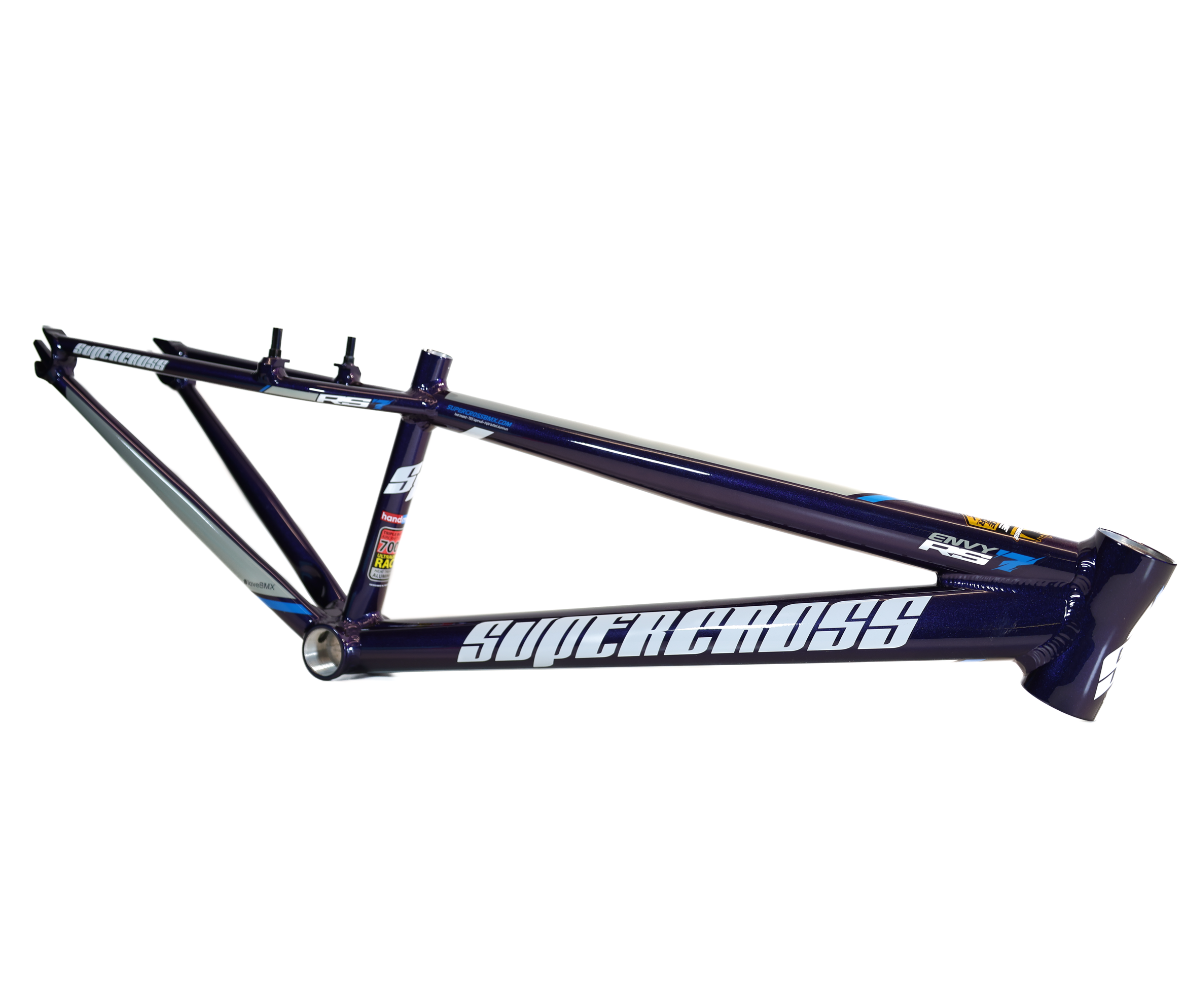

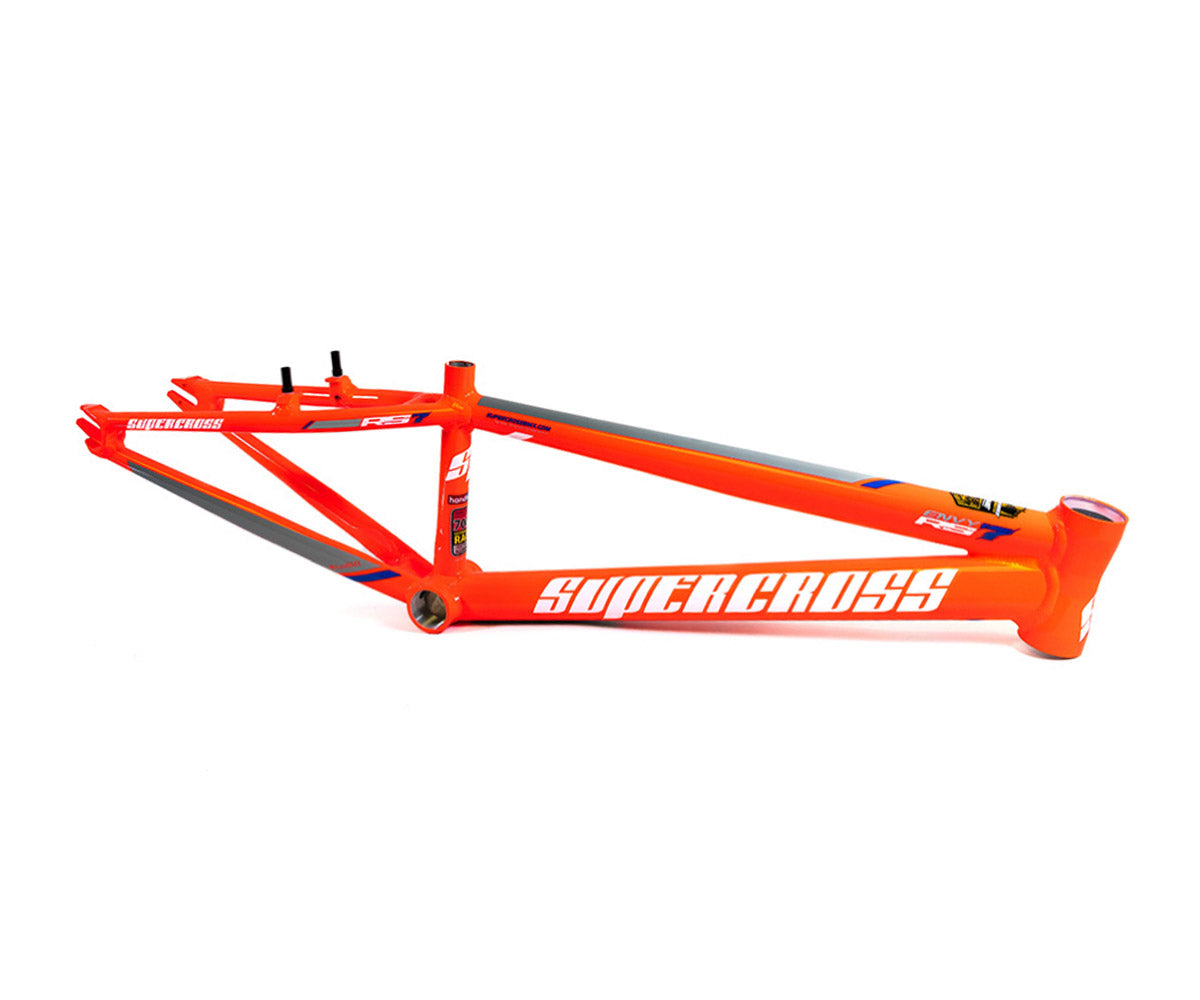

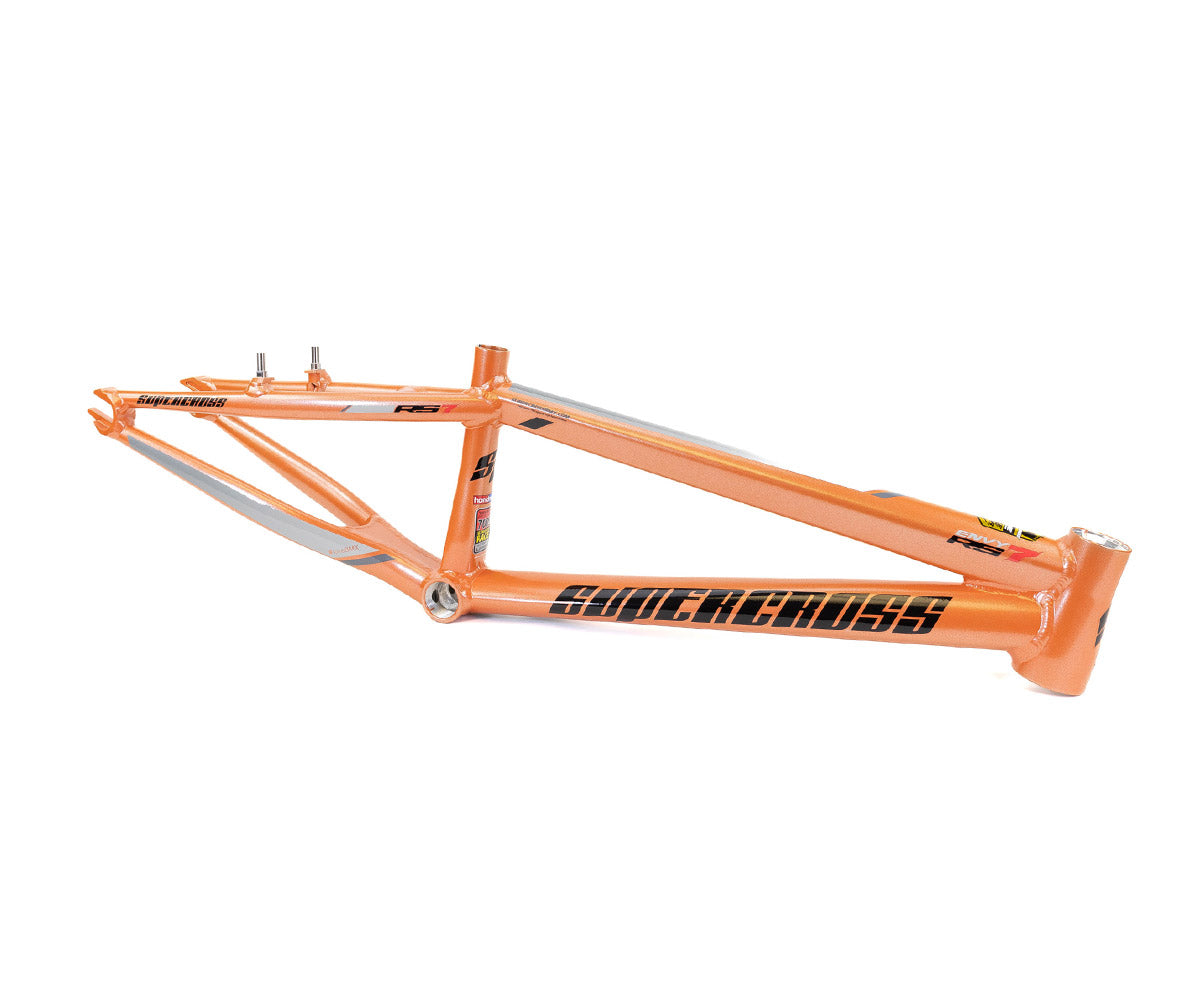

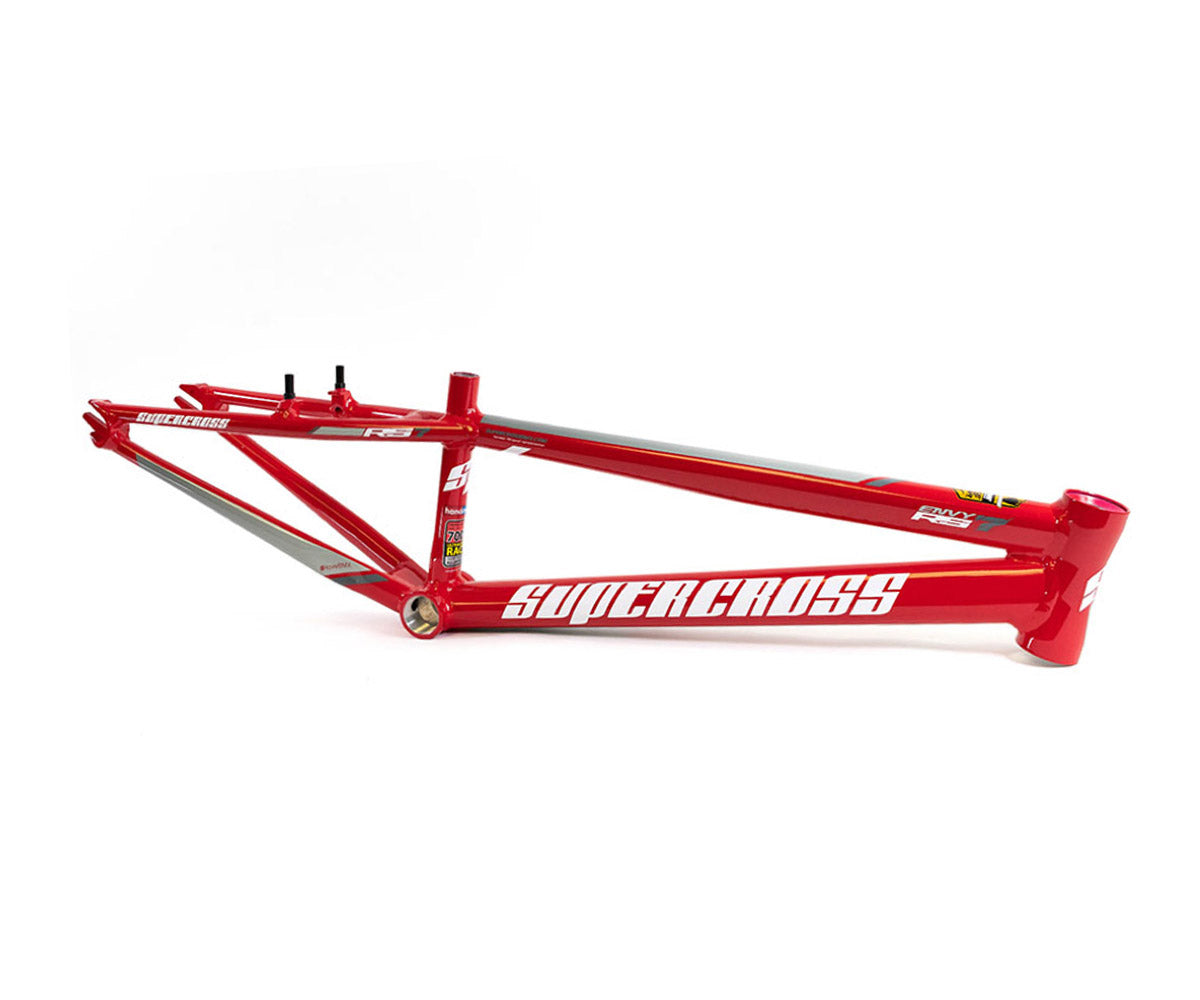

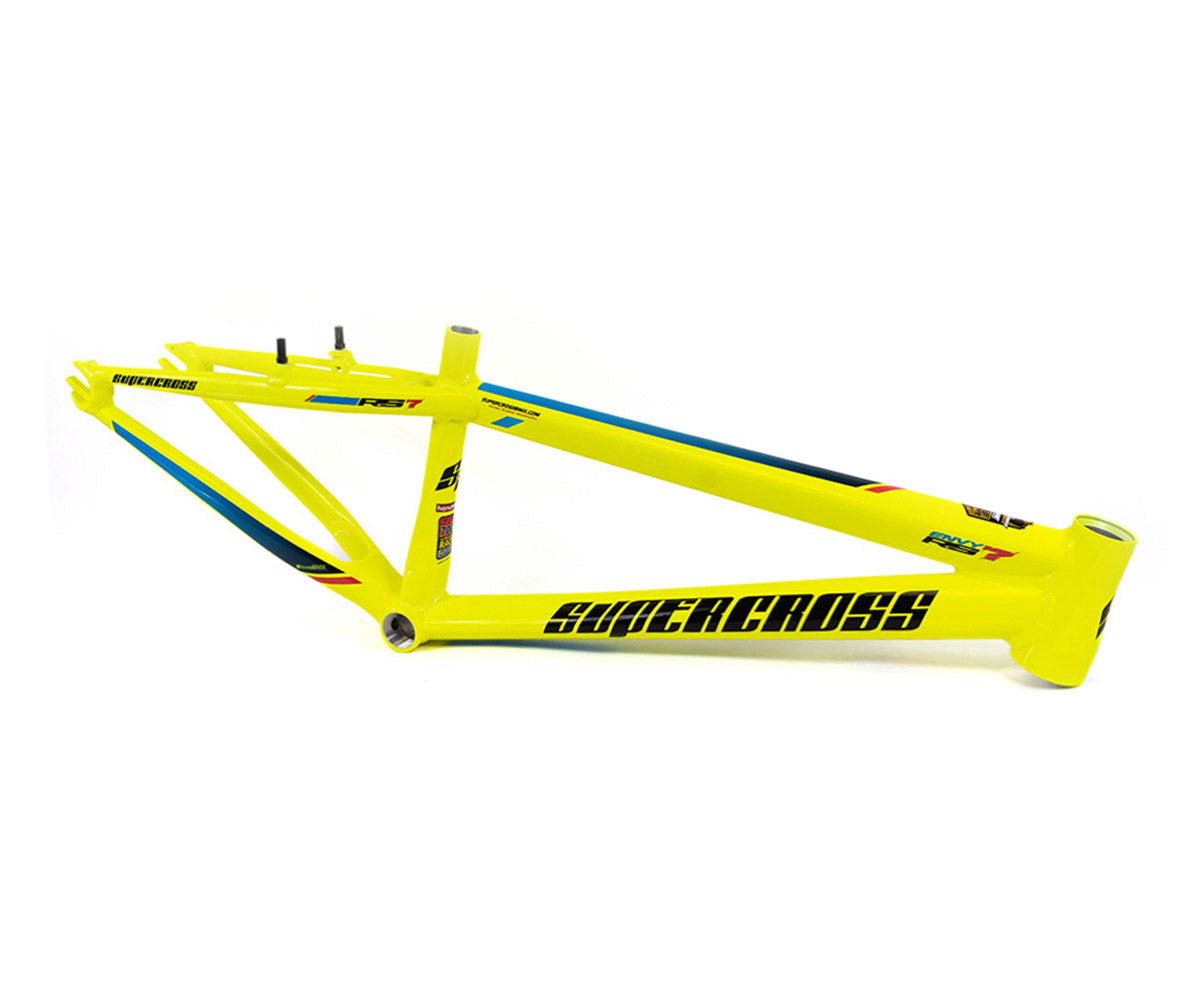

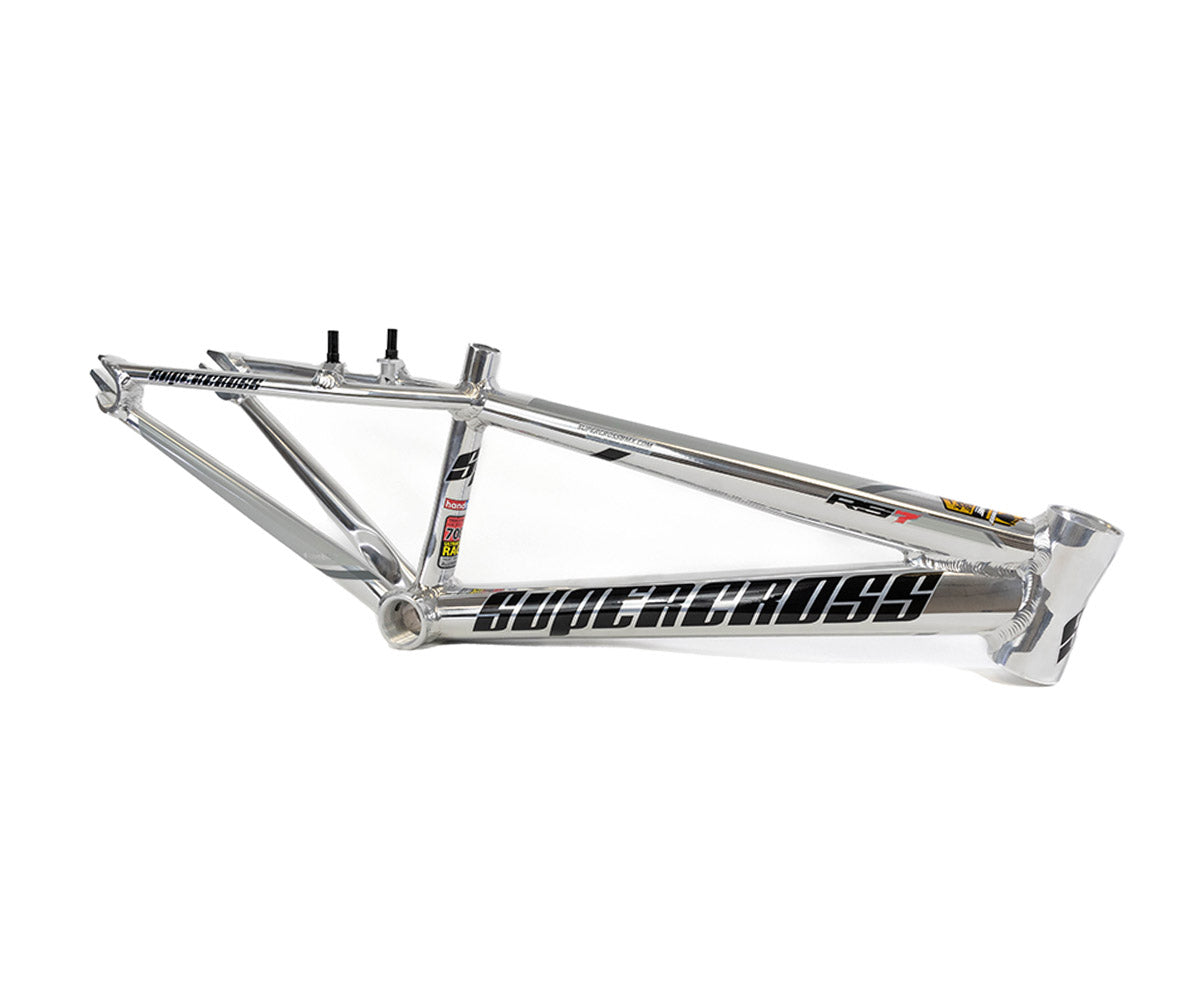

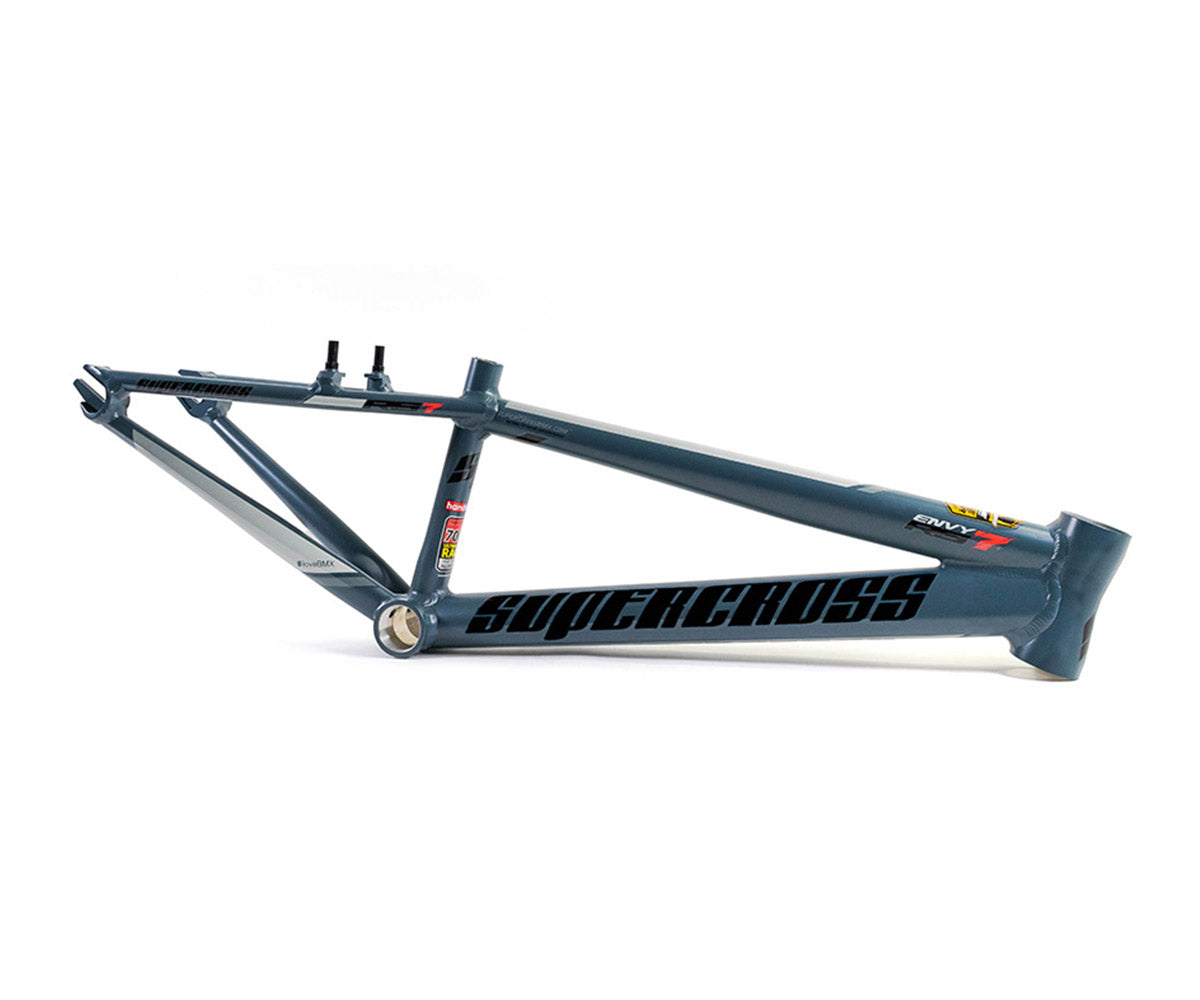

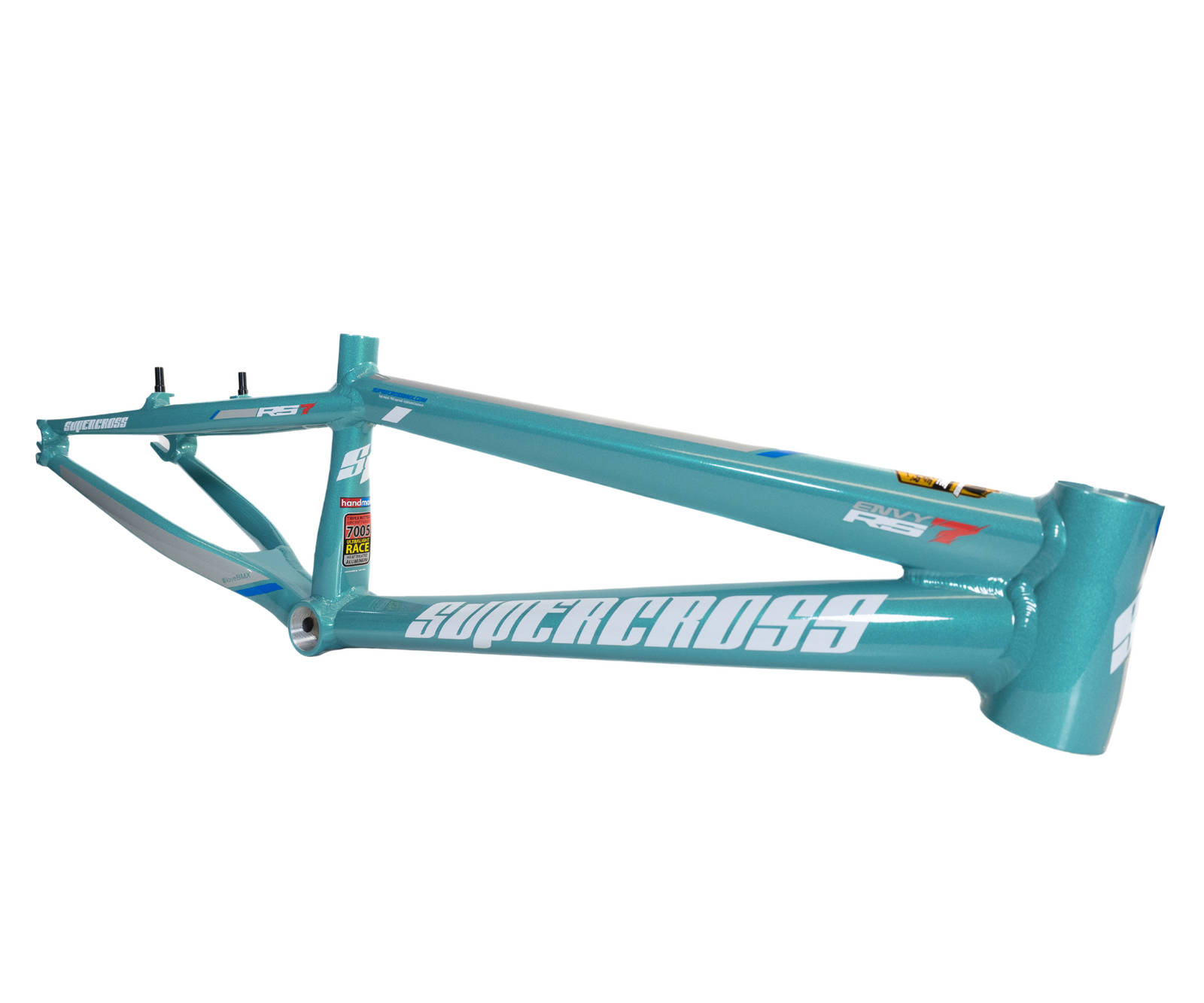

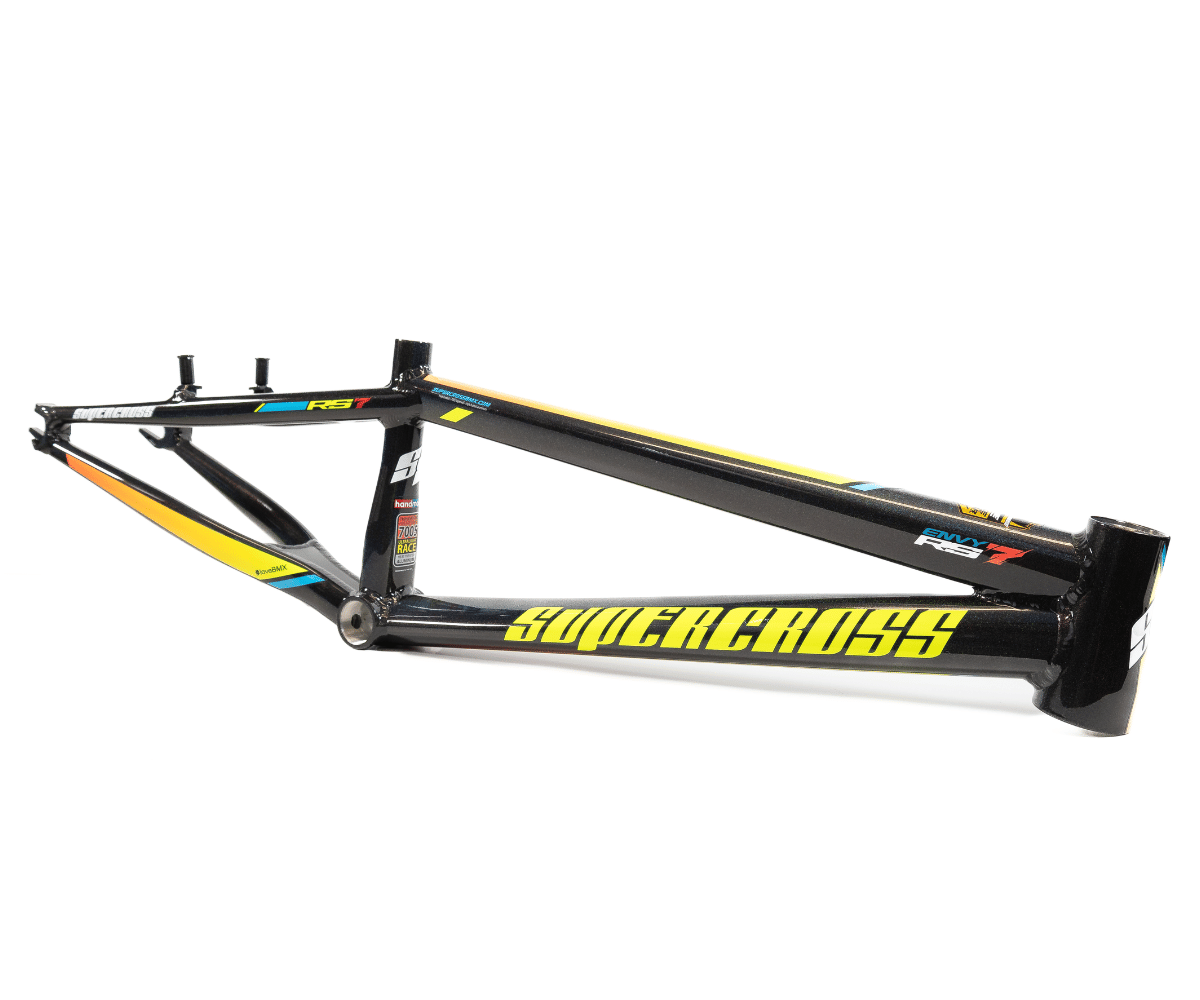

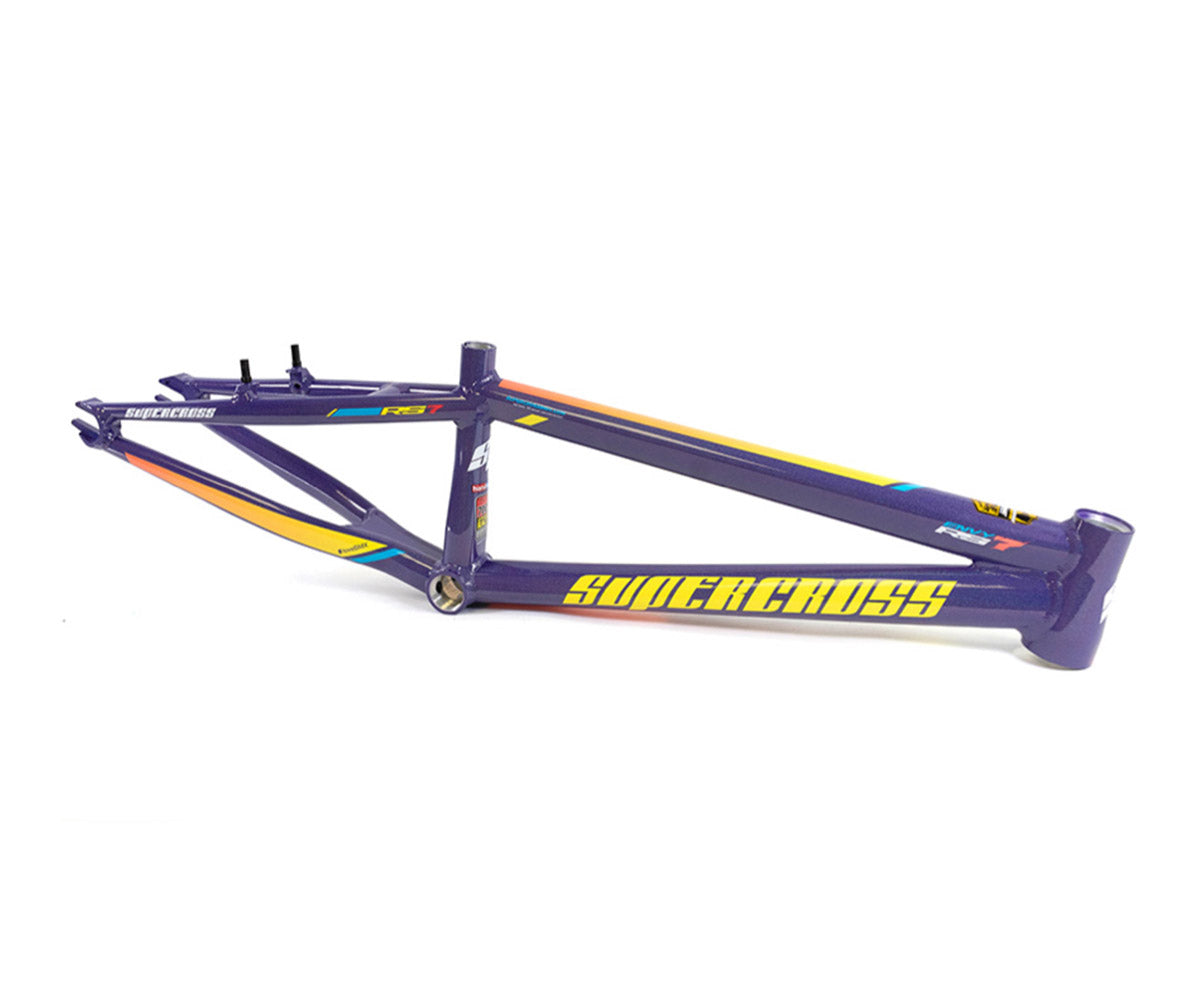

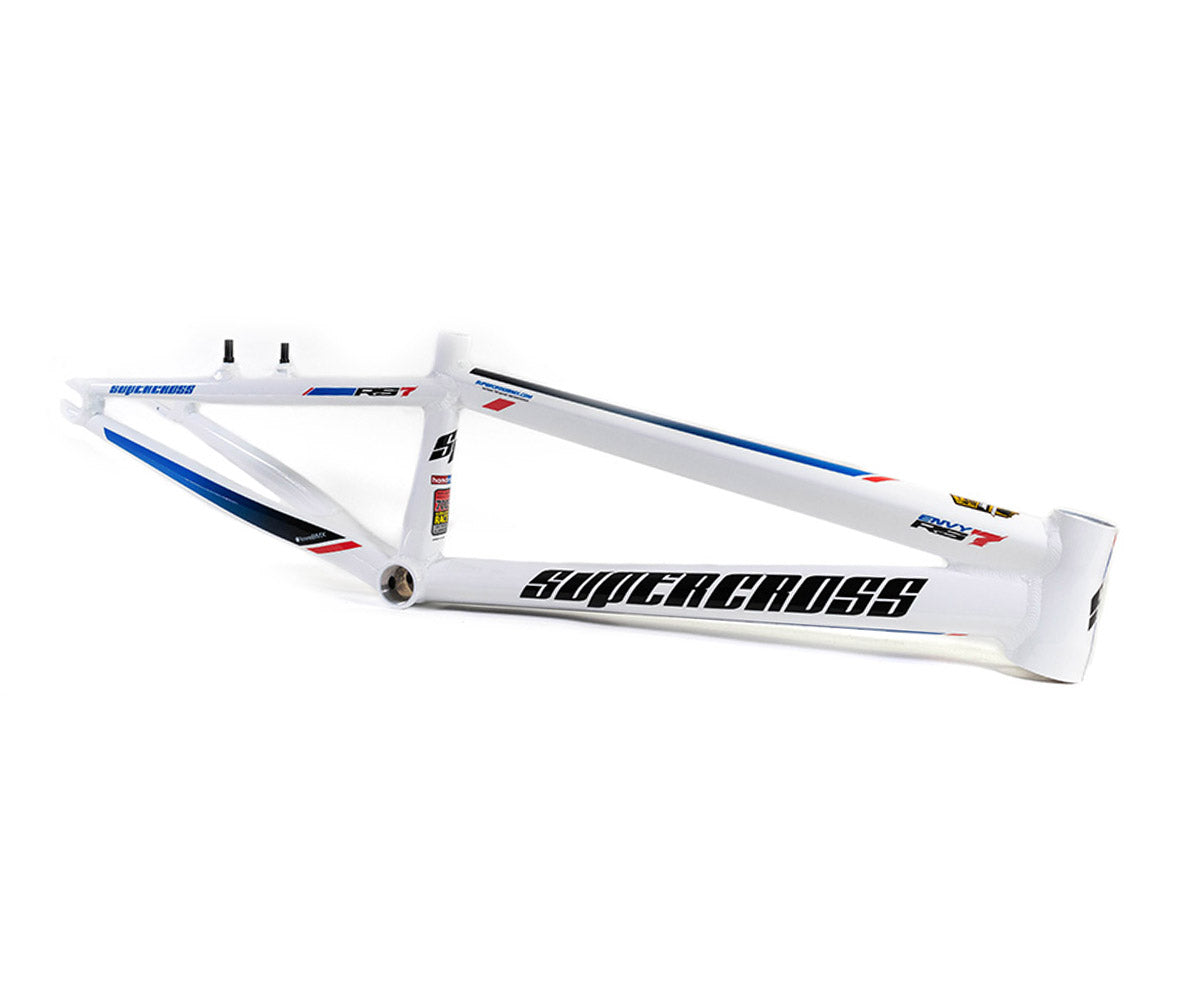

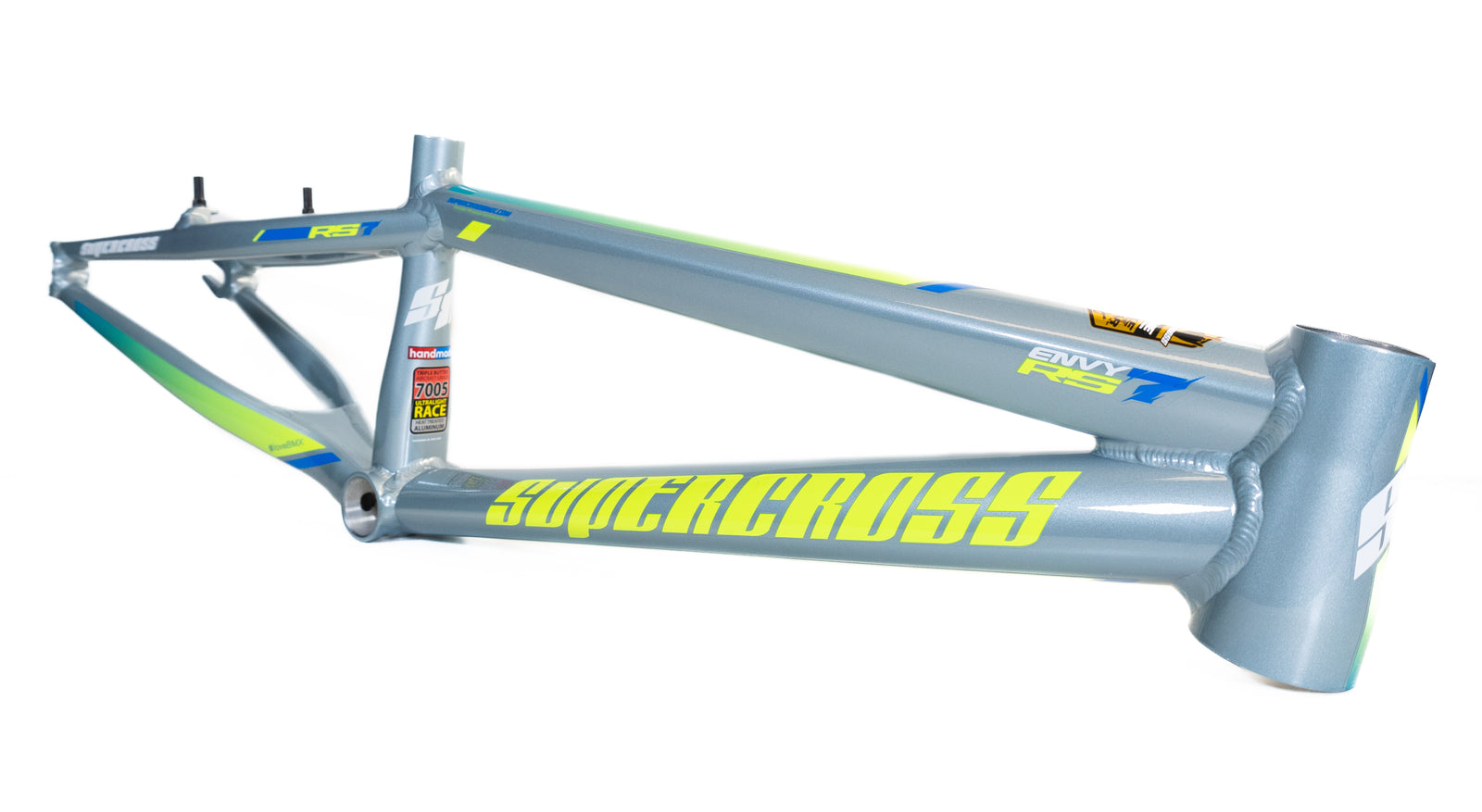

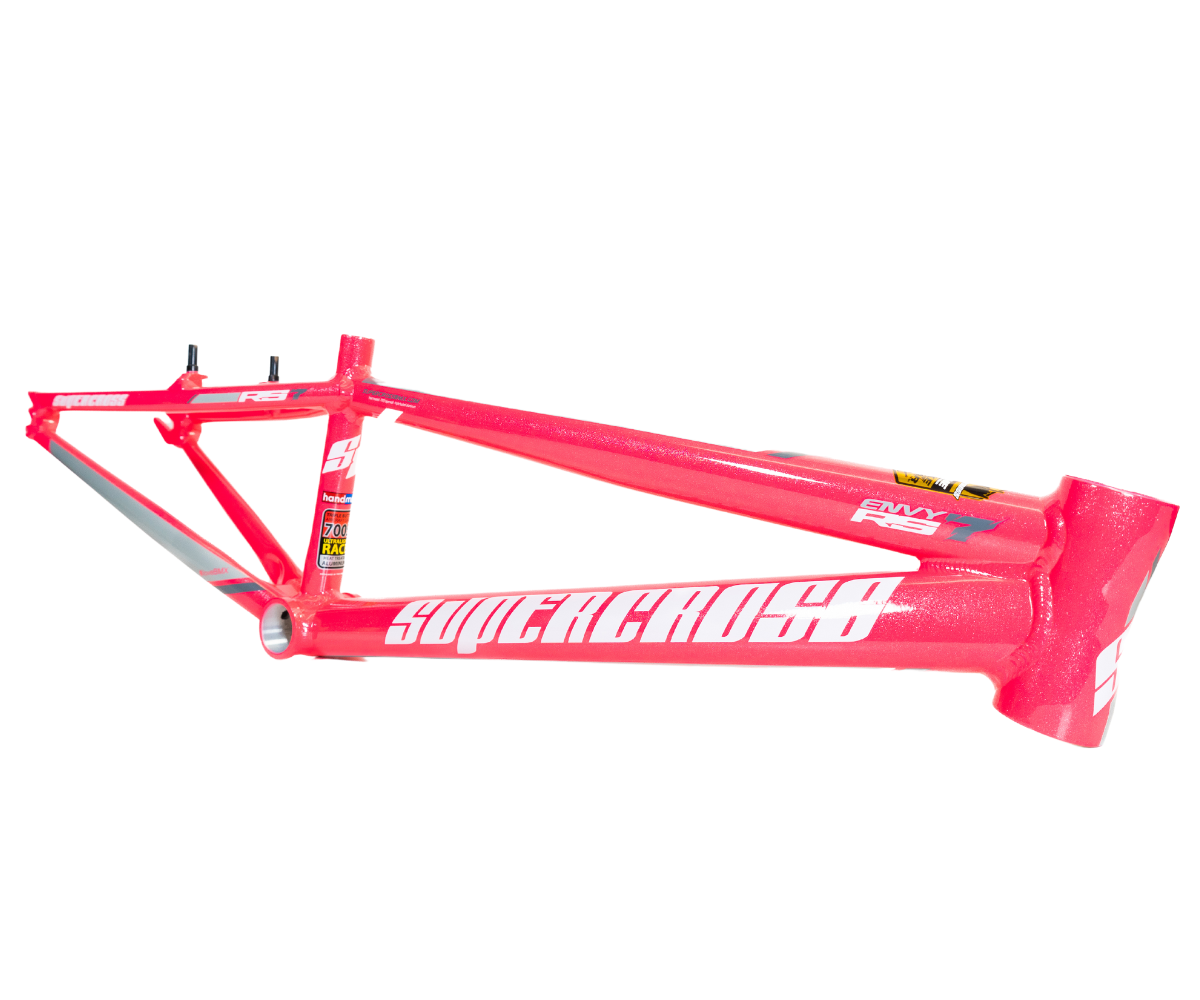

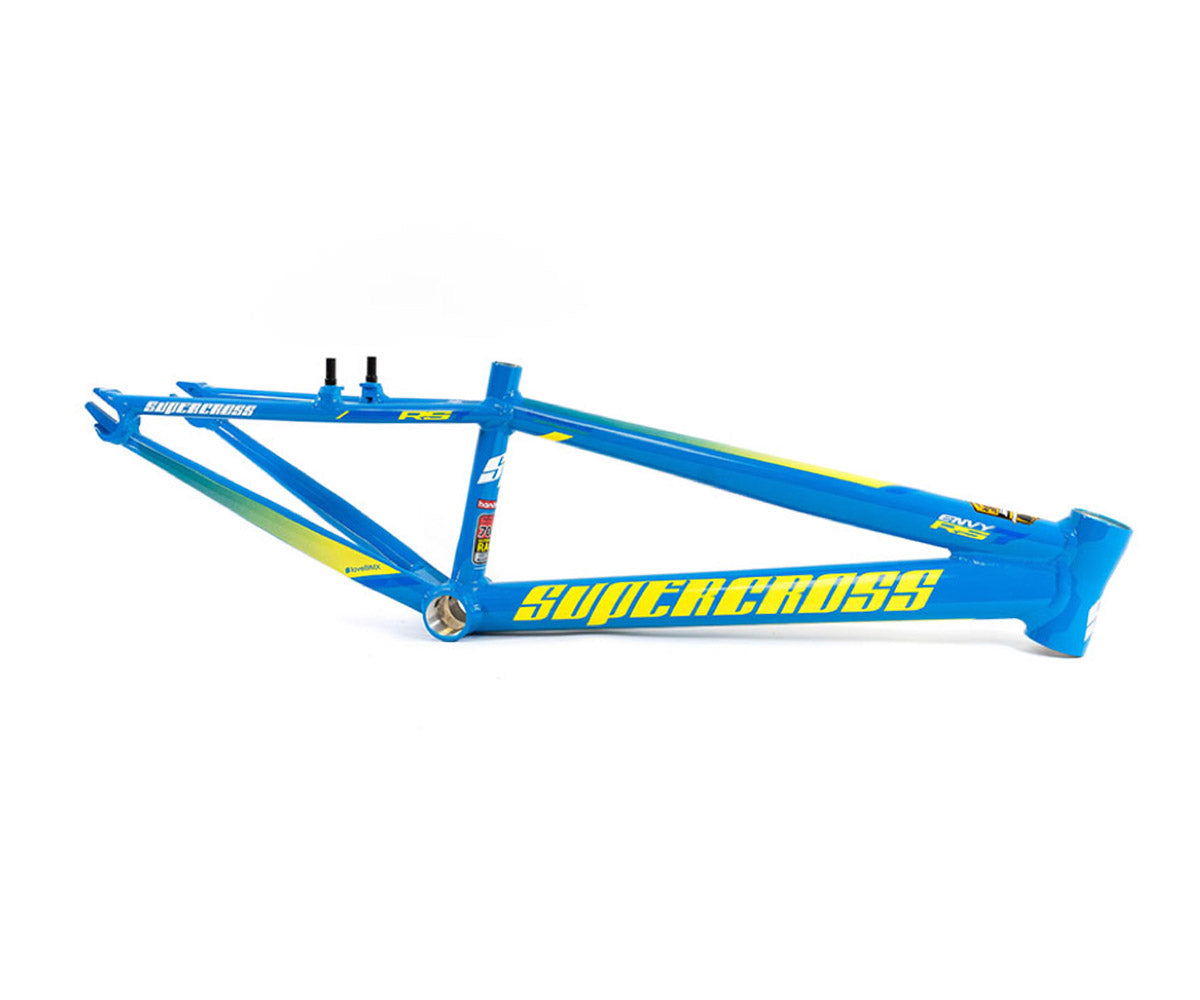

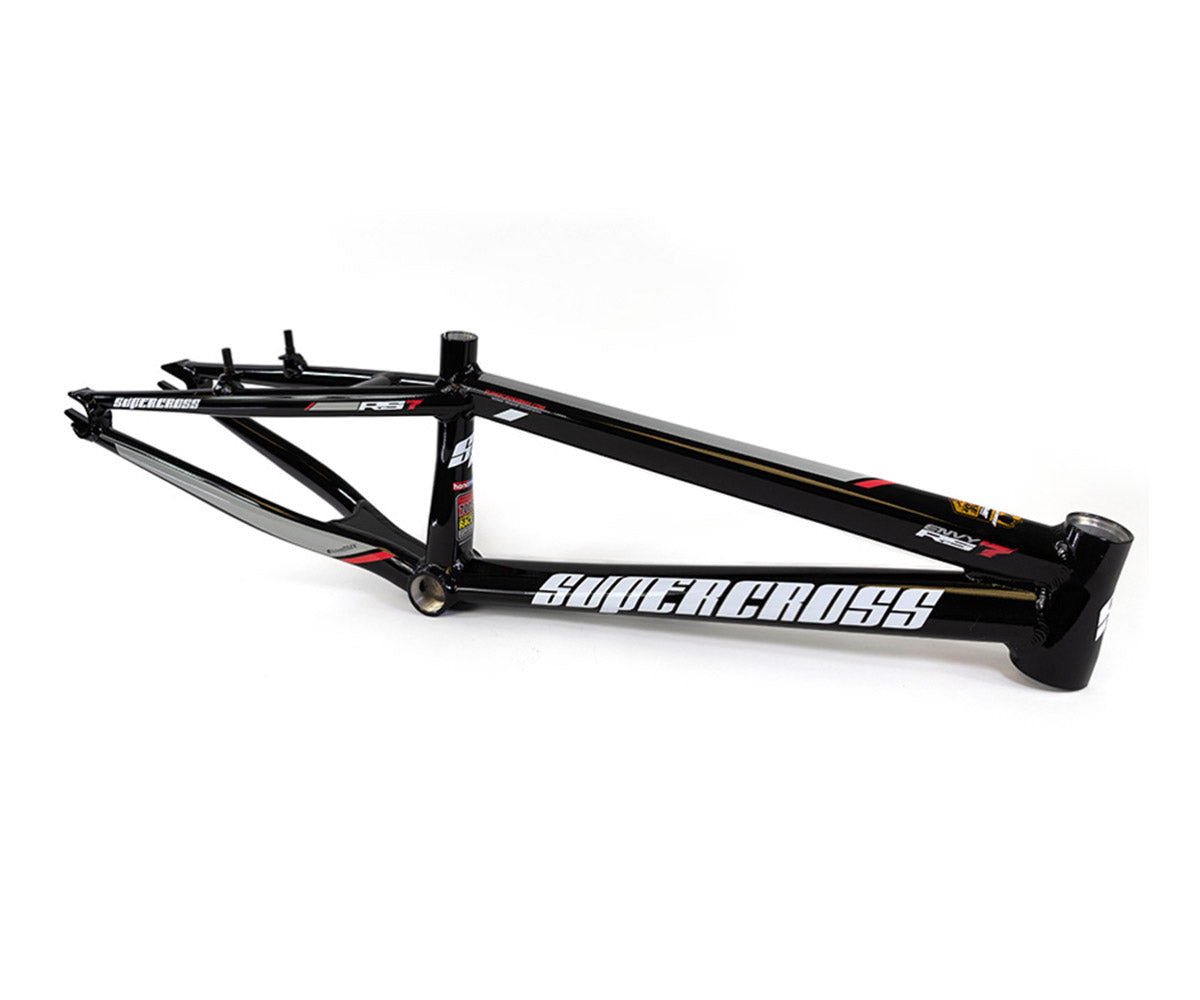

With that you have the new Supercross ENVY RS7 Available in 18 different sizes to fit all riders and 8 stock colors ( Gloss Black, Pearl White, Hi Vis Yellow, Racing Red, Teal Blue, Neon Pink, Matte Black, and Mirror Polished ) and more to come. If one of the 8 stock colors isn't what you want, we still do custom anodize and powdercoat to enable you to truly make your Supercross ENVY RS7, your ride! Give us a call and we will get you hooked up.

GEOMETRY



Supercross BMX ENVY RS7 Race Frame Geometry Chart

Size A B C D E Post Size Fork
Wheel Size Weight
Micro 16.75" 12.0" 72º 70º 10.3" 22.2mm 1 Threadless 20 X 1 2lbs
Mini 17.5" 12.25" 72º 70º 10.7" 22.2mm 1 Threadless 20 X 1 1/8 2lbs 1oz
Jr. 18.5" 12.5" 73.5º 70º 10.7" 22.2mm 1 Threadless 20 X 1 1/8 2lbs 2oz
Jr. Plus 19" 12.5" 73.5º 70º 10.7" 22.2mm 1 Threadless 20 X 1 1/8 2lbs 3oz
Expert 19.5" 13.75" 74º 70º 11.2" 22.2mm 1 Threadless 20 X 1 3/8 2lbs 5oz
Expert XL 20" 14.0" 74º 70º 11.2" 22.2mm 1 Threadless 20 X 1 3/8 2lbs 6.5oz
Expert XXL 21" 14.0" 74.5º 70º 11.2" 22.2mm 1 Threadless 20 X 1 3/8 2lbs 8.8oz
Pro 20.5" 15.0" 74.5º 70º 11.6" 27.2mm 1 1/8" - 1.5" Tapered
20 X 1.75 2lbs 12oz
Pro Plus 20.75" 15.0" 74.5º 70º 11.6" 27.2mm 1 1/8" - 1.5" Tapered
20 X 1.75 2lbs 13oz
Pro XL 21.25" 15.2" 74.5º 70º 11.6" 27.2mm 1 1/8" - 1.5" Tapered
20 X 1.75 2lbs 14.8oz
Pro XXL 21.75" 15.2" 74.5º 70º 11.6" 27.2mm 1 1/8" - 1.5" Tapered
20 X 1.75 2lbs 15.8oz
Pro XXXL 22.25" 15.2" 74.5º 70º 11.6" 27.2mm 1 1/8" - 1.5" Tapered
20 X 1.75 3lbs 4oz
Junior 24" 19.25" 14.2" 73.5º 69.3º 11.2" 22.2mm 1 Threadless 24 X 1 1/8 2lbs 2oz
Expert 24" 20.5" 15" 73.5º 69.3º 11.2" 22.2mm 1 Threadless 24 X 1 3/8 2lbs 8.8oz
Expert XL 24" 21" 14.75" 73.5º 70º 11.6" 22.2mm 1 Threadless 24 X 1 3/8 2lbs 10oz
Pro 24" 21.5" 15.3" 73.5º 70º 11.6" 27.2mm 1 1/8" - 1.5" Tapered
24 X 1.75 2lbs 15.8oz
Pro XL 24" 22" 15.3" 73.5º 70º 11.6" 27.2mm 1 1/8" - 1.5" Tapered
24 X 1.75 3lbs 1.2oz
Pro XXL 24" 22.5" 15.3" 73.5º 70º 11.6" 27.2mm 1 1/8" - 1.5" Tapered
24 X 1.75
* Specifications will vary depending upon your choice of Fork, Tire and Rim selection. Measurements are based off of a Supercross Fork and equal size (ie. 20X1.75 front and rear) tire combination. Specifications subject to change without notice.
All weights are measured on a UPS Calibrated Scale. Weights will vary depending upon the amount of powdercoat and the amount of filler rod used on a particular frame. Polished Frames and Anodized Frames are the lightest as there is no paint. Weights and Specifications are subject to change without notice.

Please note: Pro Sized and Larger Frames have the LUG behind the BB shell for the increased Stiffness. Smaller Frames, Expert XXL and down, have a tube brace, but the Chain Stays are welded directly to the BB shell without the boxing.
How we get it right.
The advances in materials and processes that have cemented Supercross’s reputation as a technology leader would not have been possible without a rigorous and costly research and development program.  Beginning in our in-house laboratories, we use a range of specially fabricated fixtures and robots to test everything we make and the best products offered by our competitors. With the knowledge that comes to life in that process, we develop and test new concepts, the most promising of which we put back in or test lab, out on the road or trail and in the wind tunnel. If results are encouraging and we think we’re on the right track, we put beta versions of our product under the world’s best racers, including two time Olympic Gold Medalist Maris Strombergs. The marketing benefits of having someone like Strombergs on our equipment is obvious to almost anyone, but the information we receive from a rider that experienced and exacting is the only way to know if we’ve gotten it right.
