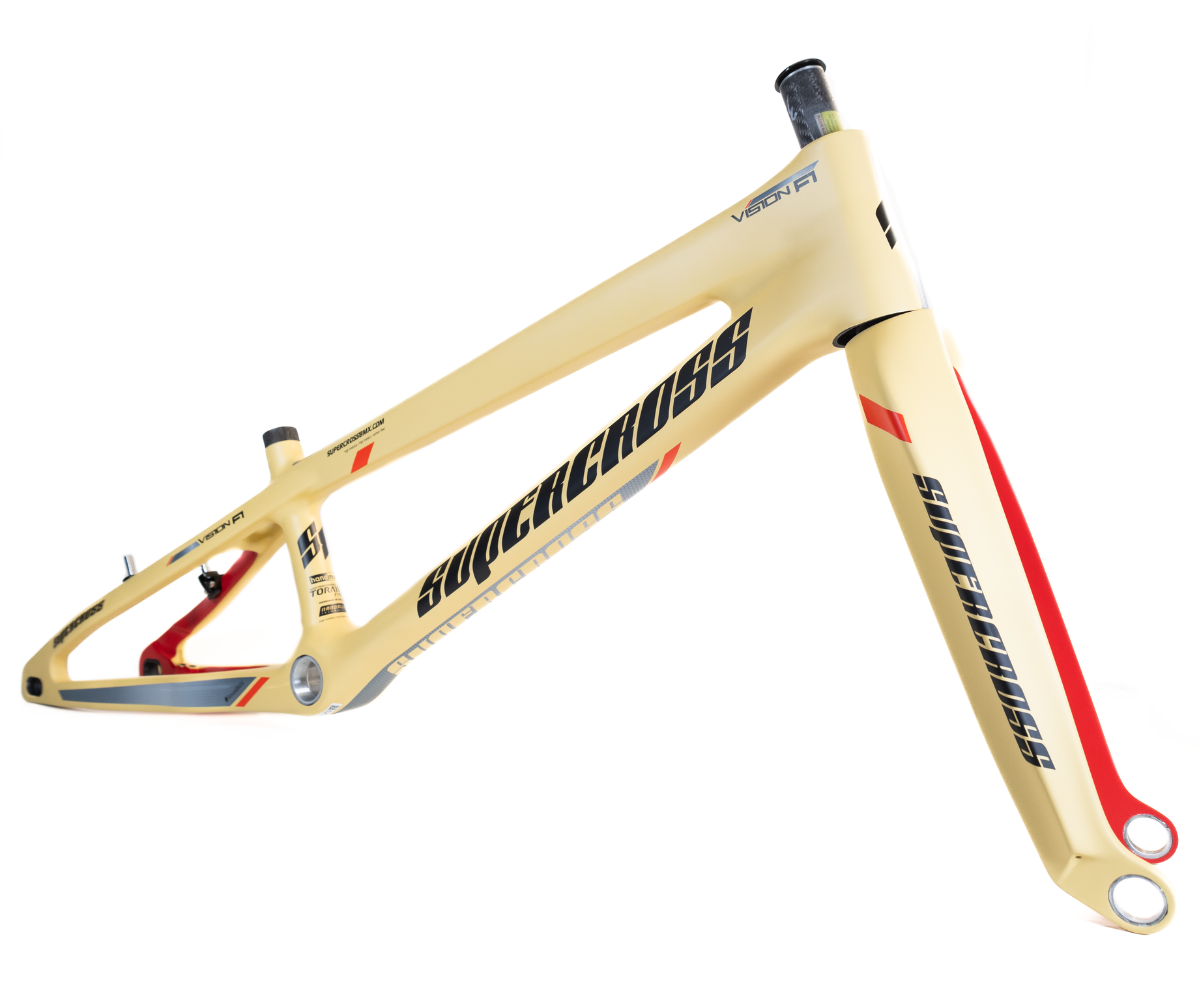

Supercross BMX | Vision F1 - Carbon Fiber Racing Chassis

1 item left

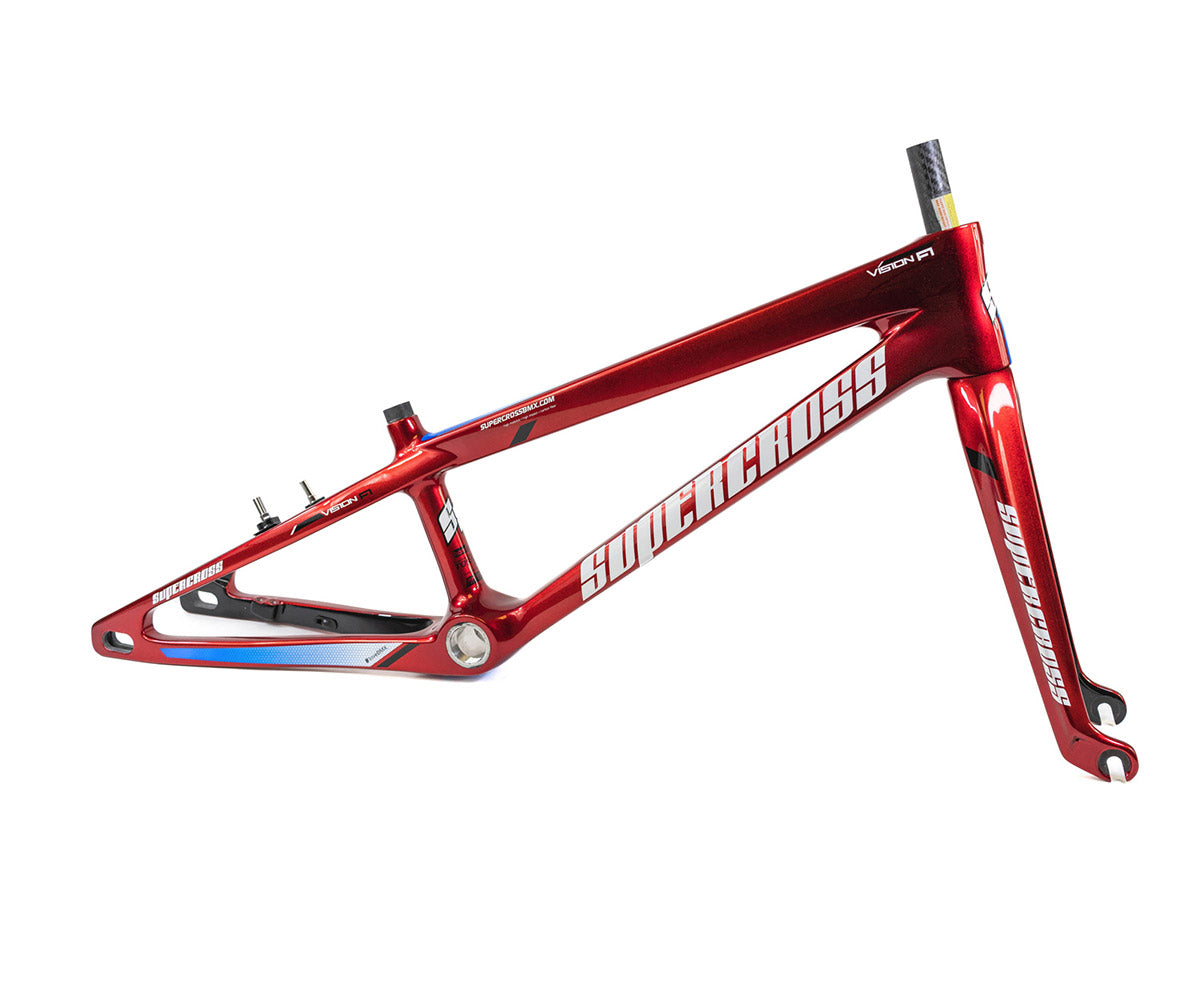

Supercross BMX Vision F1 in Rocket Red

Unveiled from the #SecretLabs of Supercross HQ, The VISION F1 is here! This isn’t your ordinary race frame, rather a complete Carbon Fiber Chassis that sets the standard for the premium frame market. This package includes the VISION F1 frame, Carbon fiber fork, Speedline headset, adapters, and so much more!

The VISION F1 Chassis by Supercross BMX is Lighter, Stronger, and presented in beautiful color-ways, making it a performance beast with the looks to match!

Torayca T1100-KS Specs

Utilizing World Championship-winning geometry of past Supercross frames, the VISION F1 revolutionizes the platform. Unlike its predecessors, the VISION F1 utilizes monocoque construction, also known as one-piece construction. The frame and fork are each constructed of a uniform piece of high-modulus carbon fiber. No joints, no welds, no bonding areas! This construction method is the most efficient and premium way of producing carbon fiber components. We did this while retaining the tried and trued carbon pre-preg material, TORAYCA T1100-KS (frame) and T700S Nano Alloy Resin (Forks).

TORAYCA T1100-KS allows us to reduce the frame’s weight another 6% while simultaneously increasing stiffness and power transfer. The efficiency of monocoque construction paired with T1100-KS allowed us to reduce material in less stressed regions and apply it to areas of extreme power transfer. The VISION F1 launches like no other! The Chart depicted above is a product of TORAYCA's in-house testing. T1100-KS is used on fighter jets and Formula 1 cars, and now you get to ride it! The VISION F1 is the fastest platform in BMX Racing, retaining every bit of that confidence-inducing feel of a Supercross BMX frame.

Supercross BMX Vision F1 Disc Brake Mounts

The VISION F1 is forward-thinking as it’s designed for not only today’s needs but the needs of tomorrow! Every VISION F1 accepts 120mm Disc Brake rotors AND all V-Braking systems. Both mounting systems are fully removable, ensuring proper clearance while producing the cleanest look. We also molded internal cable ports for the upper V-Brake routing and lower DISC routing to avoid any extreme bends hindering cable lines. As a result, the VISION F1 platform maximizes braking efficiency regardless of your preferred setup.

Supercross BMX Vision F1 V Brake Mounts



2 Disc Brake Mounts are included with the Chassis Kit. One for all Shimano® Hydraulic Disc Systems utilizing the lower mounting and routing systems. This design ensures the caliper is protected from damage. The second adapter is for mechanical calipers and uses the upper cable routing. Both systems are fully captive on the axle and locked into the frame.

For the Disc Brake riders, we added a full captive rear dropout. With the axle fully encased, we eliminated the horseshoe effect that traditional frames develop when running a Disc. This system ensures the wheel is always straight, producing a perfect chain line and disc positioning every time. The Supercross BMX FLIP/CHIP allows for easy installation of 15mm or 10mm ( 3/8 ) axles. Depending on the axle size, the FLIP/CHIP can be swapped to accommodate proper sizing. The FLIP/CHIP also lets you choose between a rear positioning or front positioning depending on your preferred rear end length.

You may be wondering about the Chain Tension, Right? The VISION F1 has a built-in Idler/Guide that will take out chain slack.

If you don't want to run the Idler/ Guide, that's totally fine! The FLIP/CHIPs that come with the VISION F1 provide sufficient chain tension for a 44/16 gearing with a 1/2 link chain without needing the Idler/ Guide (across all pro-sized models). We plan to release more sizes of the FLIP/CHIP's in the near future that will accommodate other popular gearing ratios.

If you want to run something other than a 44/16, the Idler/ Guide allows you to do just that! The VISION F1 will accept up to a 52-tooth chainring (Pro-sized models). There's plenty of space to run any gearing you want!

Supercross BMX Flip/Chip with 44/16 Gear

To eliminate the dreaded creaking of press-fit bottom brackets, the VISION F1 retains the traditional threaded Euro BB Shell across all models. This technology is proven to be the most effective and dependable BB interface, which is why we’re sticking with it.

The dropouts are solid Carbon fiber, and we mean SOLID! The VISION F1 Dropouts are 15mm thick, almost twice the thickness of other Carbon or Aluminum frames on the market. Thanks to the increased thickness, the rear end can handle all the torque and braking power you can throw at it.

The head tubes use fully molded Carbon Fiber bearing races to provide the strongest head tube on the market. With the VISION F1, you’ll notice heightened front-end responsiveness allowing for quicker turn-in and tighter cornering lines. The Mini thru Expert XXL uses a Campy Std. Size for 1" or 1 1/8" steer tube forks, depending upon which bearing kit you use.

Pro sizes feature Tapered Integrated head tubes that accept 1 1/8" - 1.5" steer tube forks. The VISION F1 accepts a traditional 1 1/8" straight steer tube with the assistance of an adapter included in the headset.

Each Pro size Supercross BMX VISION F1 Chassis Kit Contains a VISION F1 Frame, Matching Fork, Steer Tube Top Cap, 20mm Adapters, Hydraulic Disk Brake Adapter Kit, Mechanical Disk Brake Adapter Arm, Removable V- Brake Mounts, 2 Sets of FLIP/CHIP's ( 1-15mm set and 1-10mm ( 3/8" ) set ) a Chain Idler / Guide and a Sealed Bearing Headset.

The Mini, Junior, Expert and Expert XL, only contain 1 set of Flip Chips for the 10mm Axle size. They also use a 10mm front dropout on the Fork.

This is a complete Racing Chassis ready to replace your current bike or become a base for an entirely new build!


GEOMETRY



Supercross BMX VISION F1 Carbon Race Frame Geometry Chart



VISION F1 Carbon Pro Pro Plus Pro XL Pro XXL Pro XXXL
A. Top Tube Length 20.5" 20.75" 21.25" 21.75" 22.25"
B. Chainstay Length 15.0" 15.0" 15.2" 15.2" 15.2"
C. Steertube Angle 74.5º 74.5º 74.5º 74.5º 74.5º
D. Seat Tube Angle 70º 70º 70º 70º 70º
E. Bottom Bracket Height 11.6" 11.6" 11.6" 11.6" 11.6"
Seat Post Size 27.2mm 27.2mm 27.2mm 27.2mm 27.2mm
Headset Type 1 1/8" - 1.5" Integrated 1 1/8" - 1.5" Integrated 1 1/8" - 1.5" Integrated 1 1/8" - 1.5" Integrated 1 1/8" - 1.5" Integrated
Wheel Size 20" X 1.75" 20" X 1.75" 20" X 1.75" 20" X 1.75" 20" X 1.75"



VISION F1 Carbon Junior Expert Expert XL Mini
A. Top Tube Length 18.5" 19.5" 20" 17.5
B. Chainstay length 12.5" 13.75" 14.0" 12.0
C. Steertube Angle 73.5º 74º 74º 72º
D. Seat Tube Angle 70º 70º 70º 70º
E. Bottom Bracket Height 10.7" 11.2" 11.2" 10.7"
Seat Post Size 22.2mm 22.2mm 22.2mm 22.2mm
Headset Type Campy Integrated Campy Integrated Campy Integrated Campy Integrated
Wheel Size 20" X 1" 20" X 1 3/8" 20" X 1 3/8" 20" X 1 1/8"

* Specifications will vary depending upon your choice of Fork, Tire and Rim selection. Measurements are based off of a Supercross Fork and equal size (ie. 20X1.75 front and rear) tire combination. Specifications subject to change without notice.
All weights are measured on a UPS Calibrated Scale. Weights will vary depending upon the amount of powdercoat and the amount of filler rod used on a particular frame. Polished Frames and Anodized Frames are the lightest as there is no paint. Weights and Specifications are subject to change without notice.
