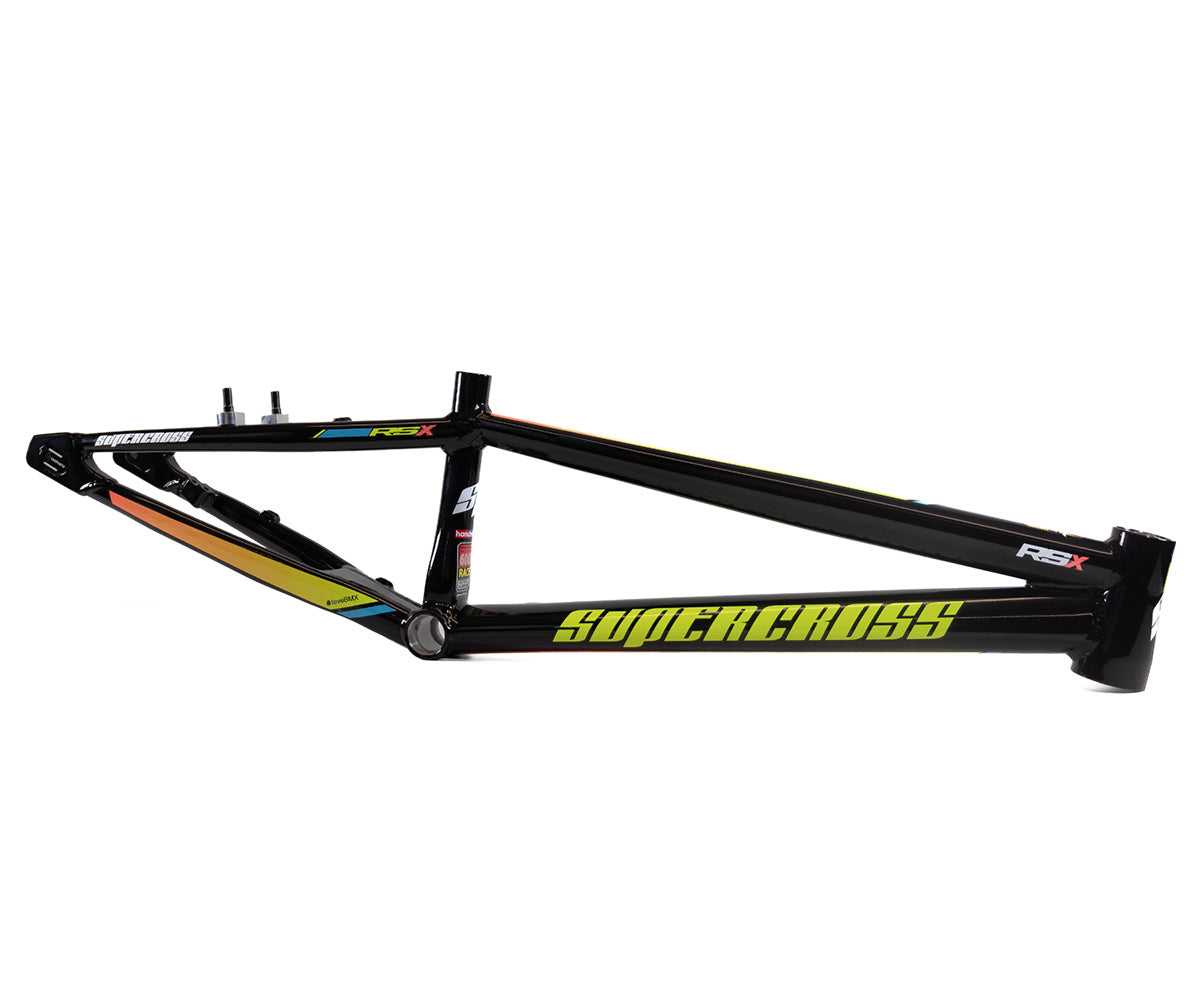

Supercross BMX | Vision RSX - Aluminum BMX Race Frame Scratch and Dent

1 item left

Unveiled from the #SecretLabs of Supercross HQ, The VISION RSX is here!

Utilizing World Championship winning geometry of past Supercross frames, the VISION RSX revolutionizes the platform. Taking all the preconcieved notions of aluminum racing frames and tossing it on end. It is a Taper wall 6000 series aluminum frame, hollow CNC'd dropouts, Disc and V Brake Compatible, and affordable. It is the fastest way to get from the gate to the podium. The feel of Carbon for 1/2 the price.

The VISION RSX is forward-thinking as it’s designed for not only today’s needs but the needs of tomorrow!



  • Taper wall 6000 series aluminum frame
  • Every VISION RSX accepts 120mm Disc Brake rotors AND all V-Braking systems
  • Molded internal cable ports for both the upper V-Brake routing and lower DISC routing to avoid any extreme bends that would hinder the cable lines
  • Full captive rear dropout, with the axle fully encased
  • FLIP/CHIP allows for easy installation of 15mm or 10mm ( 3/8 ) axles, able to be mounted rear or front and swappable to accomodate proper sizing.
  • Built-in Idler/Guide that will take out chain slack
  • Traditional threaded Euro BB Shell across all models
  • CNC'd Hollow 6061 T-6 Billet Aluminum Dropouts
  • Head tubes use full CNC'd Aluminum Bearing Races
  • Pro and Larger sizes feature Tapered Integrated head tubes that accept 1 1/8" - 1.5" steer tube forks
  • Accepts a traditional 1 1/8" straight steer tube through the assistance of an adapter
  • Expert XL uses a Campy Std. Size for 1" or 1 1/8" steer tube forks depending upon which bearing kit you use



Each Pro size Supercross BMX VISION RSX Frame Contains a Hydraulic Disk Brake Adapter Kit, Removable V-Brake Mounts, 2 Sets of FLIP/CHIP's (1-15mm set and 1-10mm ( 3/8") set) Expert XL, only contain 1 set of Flip Chips for the 10mm Axle size.

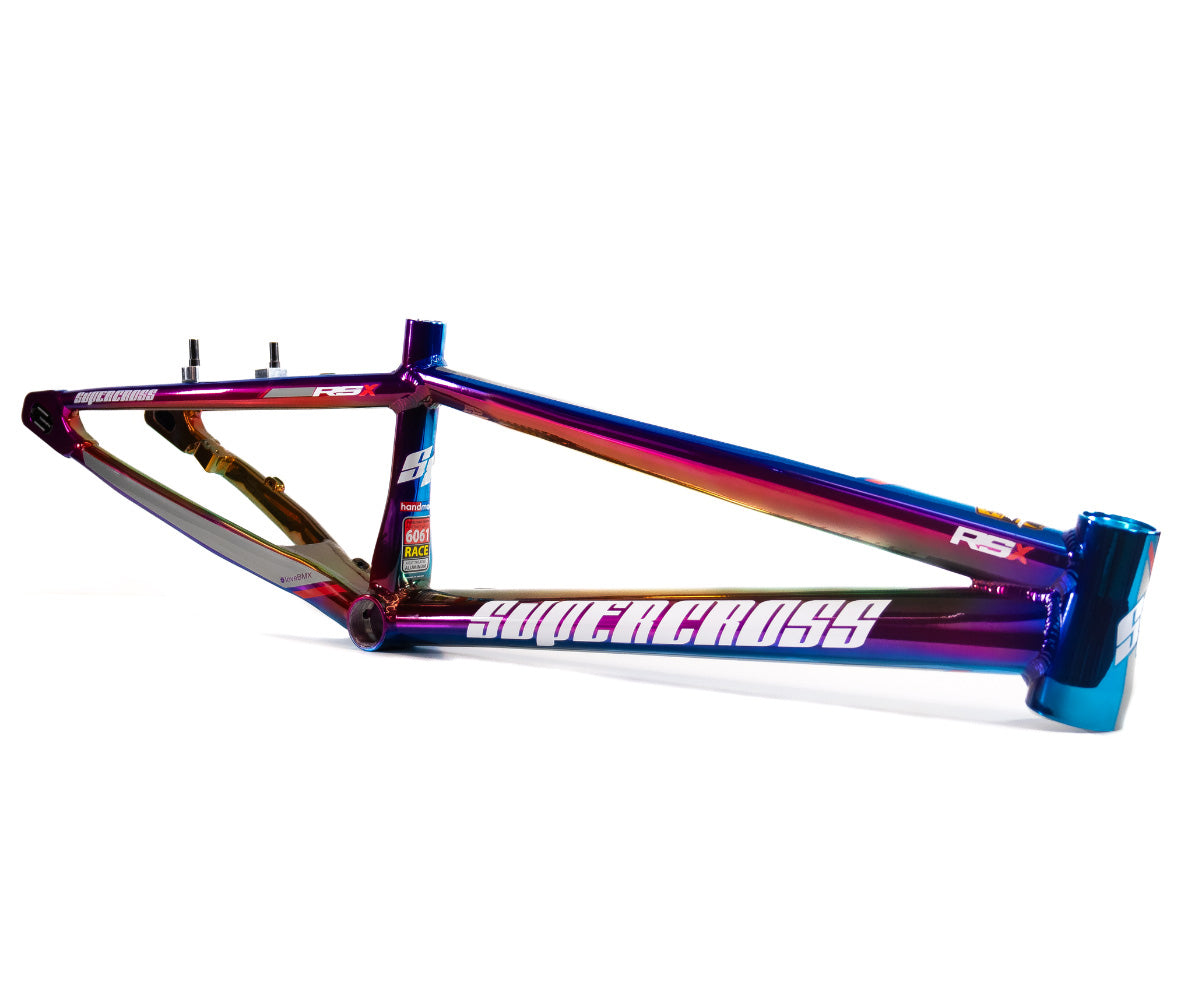

Please note - Due to the way Jet Fuel Finishes are applied, please note there will be small imperfections in the finish. If you are not OK with these small imperfections, please choose another color.

The ENVY RSX is built with the best materials, keeping you looking your best on the track.

Utilizing World Championship winning geometry of past Supercross frames, the VISION RSX revolutionizes the platform. Taking all the preconcieved notions of aluminum racing frames and tossing it on end. It is a Taper wall 6000 series aluminum frame, hollow CNC'd dropouts, Disc and V Brake Compatible, and affordable. It is the fastest way to get from the gate to the podium. The feel of Carbon for 1/2 the price.

SUPERCROSS BMX ENVY RS7 ALUMINUM RACE FRAME GEOMETRY CHART

VISION RSX Expert XL Pro Pro XL Pro XXL Pro XXXL 24" Pro XL
A. Top Tube Length 20" 20.5" 21.25" 21.75" 22.25" 22"
B. Chainstay length 14.0" 15.0" 15.2" 15.2" 15.2" 15.3"
C. Steertube Angle 74º 74.5º 74.5º 74.5º 74.5º 73.5º
D. Seat Tube Angle 70º 70º 70º 70º 70º 70º
E. Bottom Bracket Height 11.2" 11.6" 11.6" 11.6" 11.6" 11.6"
Seat Post Size 22.2mm 27.2mm 27.2mm 27.2mm 27.2mm 27.2mm
Headset Type 1 1/8"" Integrated 1 1/8" - 1.5" Integrated 1 1/8" - 1.5" Integrated 1 1/8" - 1.5" Integrated 1 1/8" - 1.5" Integrated 1 1/8" - 1.5" Integrated
Wheel Size 20" X 1 3/8" 20" X 1.75" 20" X 1.75" 20" X 1.75" 20" X 1.75" 24" x 1.75"



* Specifications will vary depending upon your choice of Fork, Tire and Rim selection. Measurements are based off of a Supercross Fork and equal size (ie. 20X1.75 front and rear) tire combination. Specifications subject to change without notice.

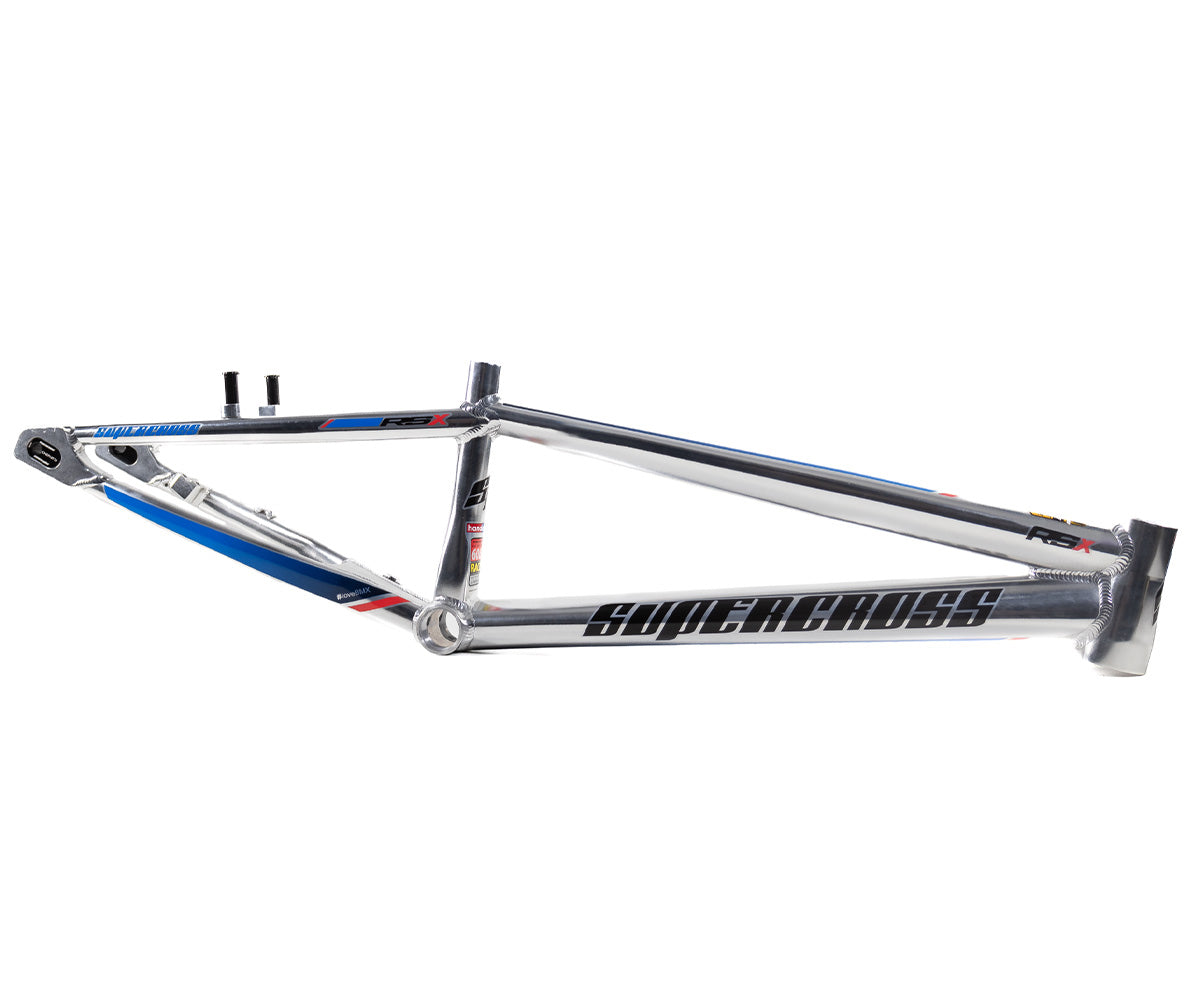

All weights are measured on a UPS Calibrated Scale. Weights will vary depending upon the amount of powdercoat and the amount of filler rod used on a particular frame. Polished Frames and Anodized Frames are the lightest as there is no paint. Weights and Specifications are subject to change without notice.

The Supercross Vision RSX comes with the Frame , Flip Chips, V-Brake Mounts, and Disc Brake Adapters. You need to purchase the Idler of your choice with the Frame.

The Supercross Vision RSX takes a Campy® Style Integrated Headset - 1 1 /8" on the Expert XL and a Tapered 1 1/8" - 1.5" on the Pro and Larger.

The Supercross Vision RSX takes a 25.4 Clamp and 22.2 Post on the Expert XL and a 27.2 Post and a 31.9 Clamp on the pro and Larger Frames.

The Supercross Vision RSX is a Frame, so you will need everything else.

We stock most of these parts to be able to help you build it up , or you can swap parts over from your existing bike.

The Supercross Vision RSX is part of our Future thinking program and is able to take traditional V-Brakes and the more Modern Disc Brakes so you have both options available to you on one frame. The Choice is yours on how you see your racing needs.

The Supercross Vision RSX is the same World Championship winning Supercross Geometry found on the Vision F1 and the ENVY RS7 Race Frames.

Unfortunately we do not sell team jerseys, but you can rep the RSX with any of our Lifestyle apparel
