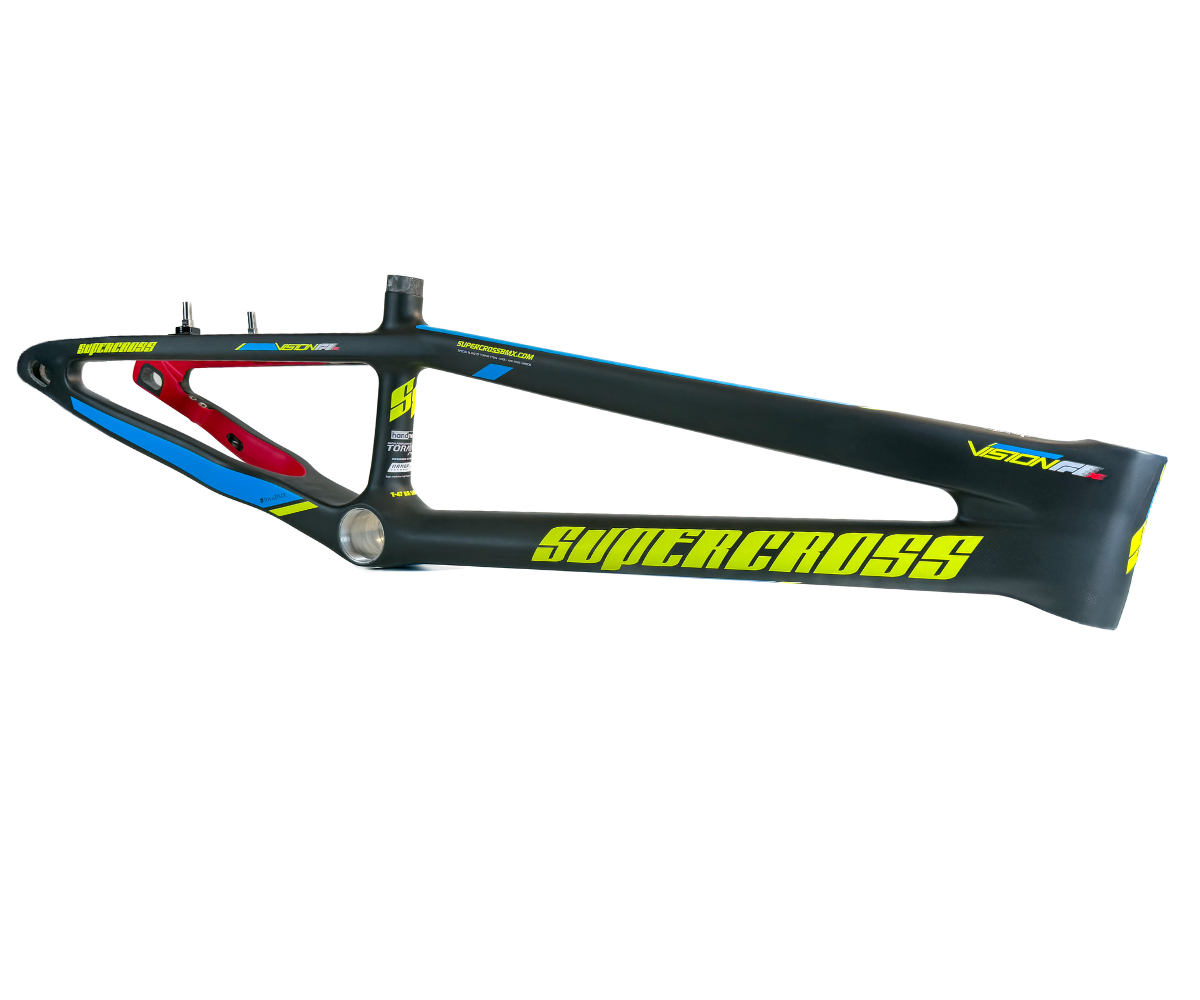

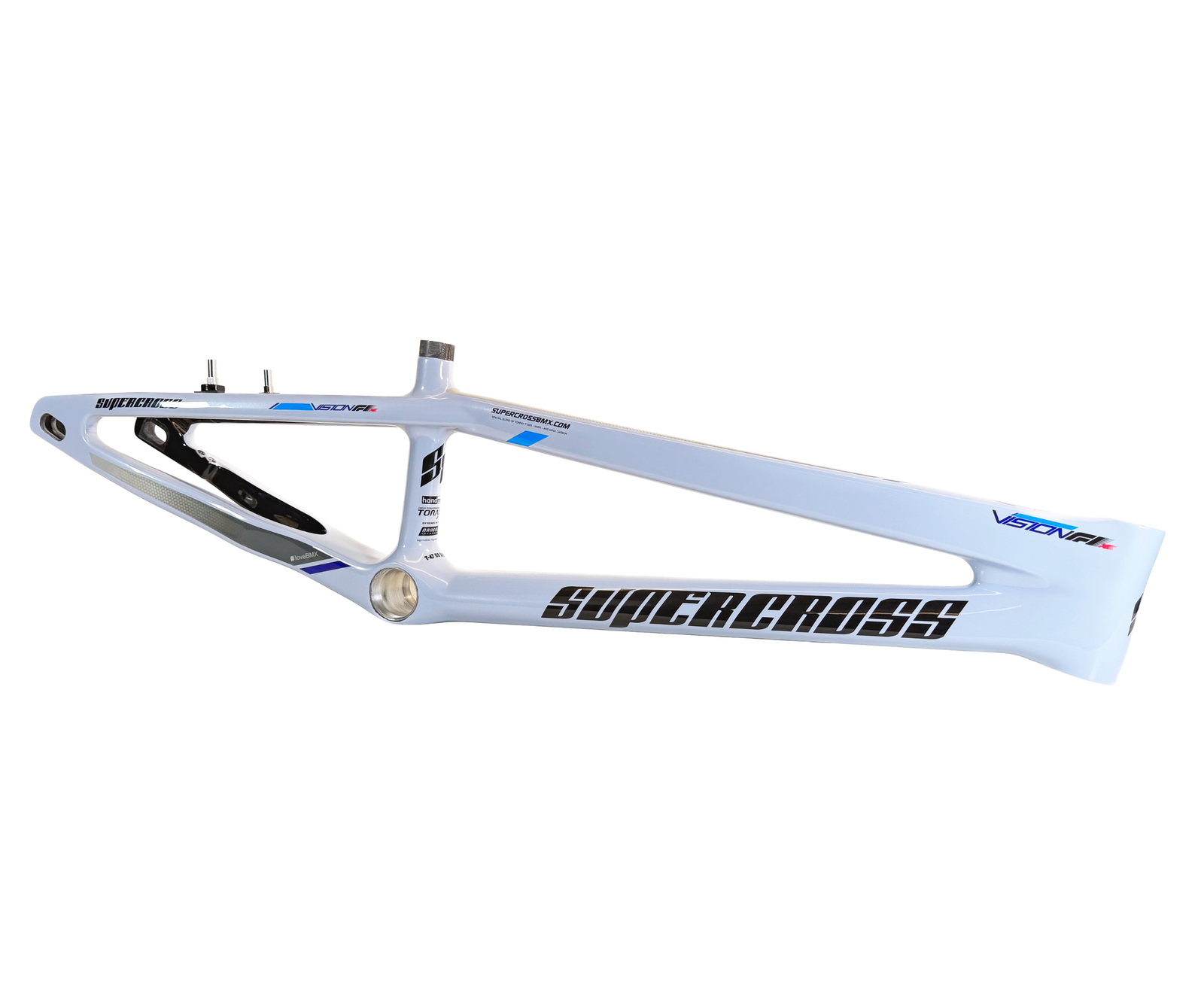

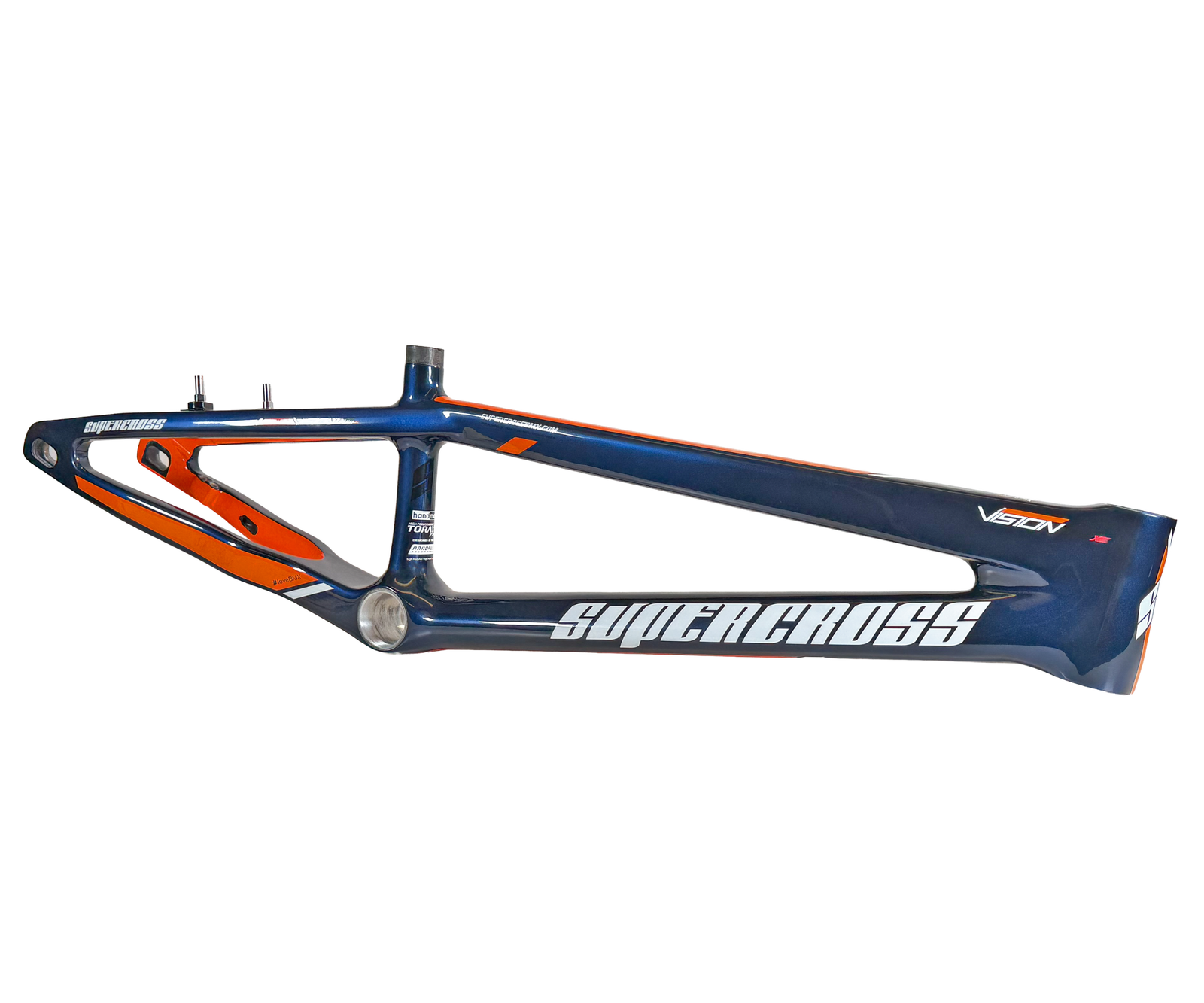

Supercross BMX | Vision F1x
$ 2,399.95 - $ 2,495.95
VISION F1X IS SOLD AS A FRAME ONLY. FORK SOLD SEPARATELY.
THE 'X' FACTOR
Next-Gen Carbon Technology
The F1x isn't just an update; it is a material transformation. We have upgraded the monocoque chassis from the previous T1100 KS to a cutting-edge blend of Toray M40X and M46X Carbon Fiber with Nano Alloy Resin.
Lighter: The superior properties of M-Series carbon allow us to reduce wall thickness without sacrificing structural integrity.
Stiffer: The high-modulus M40X and M46X fibers provide instant power transfer. When you snap out of the gate, the F1x reacts immediately.
Stronger: The Nano Alloy Resin prepreg system binds the fibers on a molecular level, creating a chassis that is as durable as it is fast.
The New Standard
The Vision F1 changed the game as the world’s first Monocoque (one-piece) Carbon Fiber BMX Racing Frame. The Vision F1x perfects it.
Engineered for the elite, the F1x takes our unitized one-piece construction to the absolute limit of materials science. By eliminating weak bonding points and heavy lugs, we created a chassis that was already fast. Now, thanks to a revolutionary new carbon layup, it is lighter, stiffer, and stronger than ever before.
Optimized Fork & Chassis Integration
Frame: Full Monocoque Toray M40X/M46X Blend with Nano Alloy Resin.
Fork: A specifically tuned blend of Toray fibers reinforced with Nano Alloy Resin to match the stiffness profile of the new F1x frame, ensuring precise handling and unmatched durability.
Versatile Brake & Axle Options
The Vision F1x retains the forward-thinking flexibility you love, ensuring it fits your specific setup:
Braking: Compatible with V-Brakes or Disc Brakes (removable mounts included).
Axles: Choice of 10mm or 15mm axles (Pro size and larger feature both options; smaller frames use 10mm only).
Component Standards & Geometry
Pro Size & Larger: Features a 1 1/8” to 1.5” Integrated Headtube and the T47 Bottom Bracket Standard. This allows for larger bearings and stiff 30mm spindles while keeping the precision and creak-free reliability of a threaded BB shell.
Expert XL & Smaller: Utilizes a Campy Integrated headset with a traditional 68mm European BB shell to keep weight optimized for younger riders.
What’s Included in Each F1x Kit
Vision F1x Monocoque Carbon Fiber Frame
Removeable V-Brake Mounts
Removable Disk Brake Mounts
(Note: Mini, Junior, Expert & Expert XL Chassis kits contain 1 set of FLIP/CHIPs for the 10mm axle size and utilize a 10mm front dropout).
Please note, Forks, Disc adapters, Headsets, are all sold separately per the links on this page.
The Vision F1 changed the game as the world’s first Monocoque (one-piece) Carbon Fiber BMX Racing Frame. The Vision F1x perfects it.
Engineered for the elite, the F1x takes our unitized one-piece construction to the absolute limit of materials science. By eliminating weak bonding points and heavy lugs, we created a chassis that was already fast. Now, thanks to a revolutionary new carbon layup, it is lighter, stiffer, and stronger than ever before.
The F1x isn't just an update; it is a material transformation. We have upgraded the monocoque chassis from the previous T1100 KS to a cutting-edge blend of Toray M40X and M46X Carbon Fiber with Nano Alloy Resin.
Lighter: The superior properties of M-Series carbon allow us to reduce wall thickness without sacrificing structural integrity.
Stiffer: The high-modulus M40X and M46X fibers provide instant power transfer. When you snap out of the gate, the F1x reacts immediately.
Stronger: The Nano Alloy Resin prepreg system binds the fibers on a molecular level, creating a chassis that is as durable as it is fast.
Frame: Full Monocoque Toray M40X/M46X Blend with Nano Alloy Resin.
Fork: A specifically tuned blend of Toray fibers reinforced with Nano Alloy Resin to match the stiffness profile of the new F1x frame, ensuring precise handling and unmatched durability.
