How the Supercross Idler Works with the Vision F1 & RSX

14 min read

How the Supercross Idler & Flip/Chip Convertor Work with the Vision F1 & Vision RSX

The three idler versions, the Red / Gold / Black Flip/Chip position options, and the Flip/Chip Convertor — the unitized upgrade with a built-in tensioner and disc brake mount.
By Bill Ryan — Founder of Supercross BMX · 37+ years in BMX · Designer of 8× Bike of the Year race frames · Started at SE Racing, 1981.

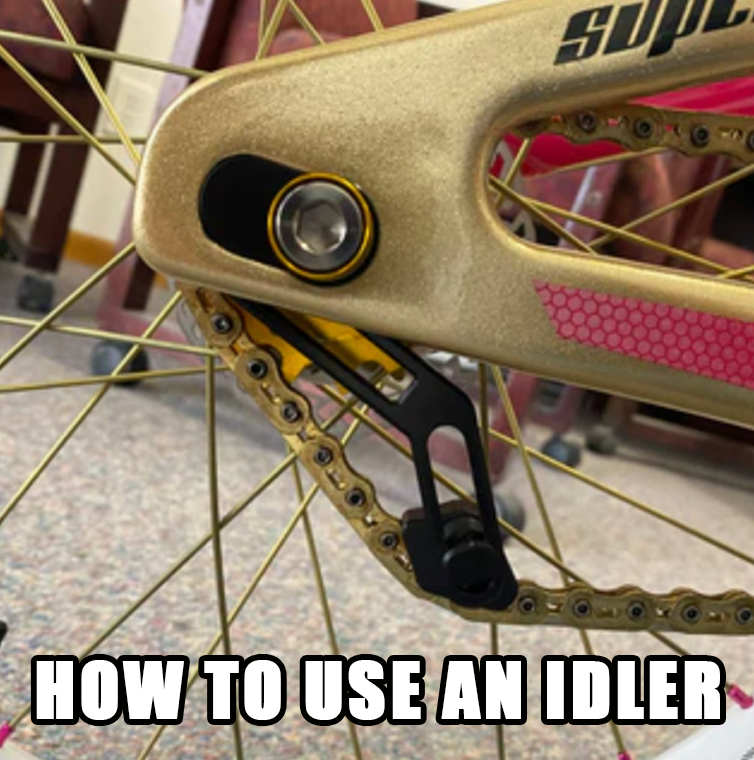

The Supercross Idler Arm sits under the chainstay and holds the chain firmly against the bottom of the rear cog. It does two things at once: it keeps the chain tight through every pedal stroke, and it feeds the chain straight into the cog so there are no skips, hops, or jumps. The same idler assembly fits both the Vision F1 carbon frame and the Vision RSX aluminum frame. Both frames are built around a 45 mm chain line. Match that at the front and at the rear cog and the drivetrain runs perfectly straight. If you want to go further than the stock setup, you've got two separate options at the dropout — the Red, Gold, and Black Flip/Chips that swap the axle to a different fixed position, and the Flip/Chip Convertor, a fully unitized upgrade with a built-in chain tensioner and an integrated disc brake mount. That last one is the ultimate version of this system.

What's on this page
  1. Watch the video first
  2. What the idler actually does
  3. Why the Vision F1 and RSX were built around it
  4. The 45 mm chain line, explained
  5. What's in the Idler Arm Assembly
  6. The three idler versions — O.E., Long Arm, Team Edition
  7. If you don't want to run an idler — the stock Flip/Chip
  8. Tuning your wheelbase — the Red, Gold, and Black Flip/Chip options
  9. The ultimate setup — the Flip/Chip Convertor (unitized dropout + tensioner + disc mount)
  10. Installing and adjusting the idler
  11. Gear changes and wheel removal
  12. Frequently asked questions

Watch the Video First

We made a short install video on the Supercross YouTube channel that covers most of what's below. Watch it once, then come back here for the full detail and the differences between the three idler versions.

What the Idler Actually Does

A BMX race bike is single-speed. One front gear, one rear cog, one chain. No derailleur to take up slack, no clutch to stop the chain jumping around. Everything has to stay tight on its own.

The old way to do that is with adjustable dropouts — slide the rear wheel back until the chain is tight, lock the axle. Works fine, but the second you want to change gears you have to move the wheel, re-align everything, and re-check your brakes. Every racer who's changed cogs in the staging lane knows that pain.

The idler takes that job off the dropouts. It sits under the chainstay on a small 7075 aluminum arm, with a Delrin guide that rides against the chain. Spring tension (or a set nut, depending on the version) holds the guide lightly up against the bottom run of the chain. The chain stays snug no matter what cog you run, and it's fed right into the teeth of the rear cog at the correct angle. That's where the clean shifts come from — no hopping over teeth, no dropped chains, no chain slap. Just one constant contact point between pedal stroke and rear wheel.

The one-line explanation The idler keeps the chain tight and the chain straight. Tight so it can't slap or skip. Straight so it feeds into the cog at the right angle and the drivetrain doesn't fight you.

Why the Vision F1 and RSX Were Built Around It

The Vision F1 is our carbon race chassis. The Vision RSX is the aluminum version — same rider geometry, same chain line, same idler mount, different material and price point. We designed both frames at the same time so the same idler works on both. You can swap the arm between a carbon F1 and an aluminum RSX and never touch a setting.

The point of designing the chain path around the idler was drivetrain efficiency. Every bit of friction and flex in a single-speed drivetrain costs you a sliver of power out of the gate. We spent the design time on two things — keeping the chain perfectly straight (that's the 45 mm chain line) and keeping the chain perfectly tight (that's the idler). Get both of those right and the rider isn't paying a power tax to the drivetrain when they pedal.

The 45 mm Chain Line, Explained

Chain line is the horizontal distance from the centerline of the bike out to where the chain runs. If the front gear sits at 45 mm out from the centerline, and the rear cog also sits at 45 mm out, the chain runs in a perfectly straight line. No side load. No friction from the chain rubbing at an angle.

Both the Vision F1 and the Vision RSX are built around a 45 mm chain line. Set your front sprocket to a 45 mm chain line, set your rear cog to a 45 mm chain line, and you're aligned. The idler then holds that straight-line chain tight underneath. That's the system — 45 mm in front, 45 mm in back, idler holding it.

Check before you race Not every aftermarket sprocket or cog is 45 mm out of the box — some spacers need changing to bring them in line. If your chain is making noise against the guide or skipping under load, your chain line is the first thing to check.

What's in the Idler Arm Assembly

The complete Vision Idler Arm Assembly that replaces the one on your bike is five parts:

Part Material What it does
Idler Arm 7075 aluminum The pivoting arm that holds the chain guide against the chain. 7075 is the same aerospace-grade aluminum we use on our top-tier parts.
Chain Guide Delrin (Teflon-impregnated) The white plastic roller the chain runs over. Delrin is a thermoplastic impregnated with Teflon, so it's as quiet as possible and wears cleanly against the chain.
Stop Nut Alloy Sets how far up the arm travels. This is the nut you back off when you want to run a different cog.
Allen Bolt Steel The pivot bolt that mounts the arm to the frame.
Washer Alloy Sits under the bolt head to protect the arm finish.

The Three Idler Versions — O.E., Long Arm, Team Edition

We sell the Vision Idler Arm in three flavors. Same mount, same chain guide, different arms. Pick based on how you race and how often you change gears.

Version What it is Who it's for
O.E. (Original Equipment) The stock 7075 aluminum arm with the Delrin guide. Lightest option we make. Direct factory replacement for what shipped on your Vision F1 or RSX. Most riders. If you don't change gears often and you want the lightest setup, this is it.
O.E. Long Arm Same setup as the O.E., but the arm is 1 inch longer. Race from Full Tilt Bikes asked us to build this one — the extra length gives a wider range of gearing without re-setting the stop nut. Riders who run a wide spread of cogs — switching between training gears and race gears on the same frame.
Team Edition (Spring Loaded) Spring-loaded arm. Heavier than the other two. No more re-setting the stop nut for gear changes or when you take the wheel off — push the arm up for slack, let it back down, and the spring gives you perfect tension every time. Factory-level racers, mechanics, anyone pulling wheels and changing cogs under pressure. If you're in the staging lane changing a gear, this is the one.
Our recommendation Start with the O.E. If you're racing hard and changing cogs a lot, upgrade to the Team Edition. The Long Arm is a specific fit for riders who know they want extra gearing range — most people don't need it.

If You Don't Want to Run an Idler — the Flip/Chip

You don't have to run an idler. Every Vision F1 ships with a Flip/Chip — a small insert in the dropout that gives you dropout-style chain tension adjustment without the idler arm. The Flip/Chip provides enough tension for a 43/16 gear on a half-link chain. That's the standard Pro-class gear most adult 20" racers run.

Run the Flip/Chip if you've settled on one gear and don't plan to change. Run the idler if you want the option to change gears quickly, or if you want the clean chain feed the guide gives you. The frames were designed to work with either — that's why the Flip/Chip is in the box.

Tuning Your Wheelbase — the Red, Gold, and Black Flip/Chip Options

The stock Flip/Chip holds your axle in one fixed position. We also sell three color-coded Flip/Chip options that let you move that fixed position in or out. They don't add a tensioner and they don't add a disc mount — they're just different chips that put the axle in a different spot in the dropout. Swap the chip, your wheel sits in a slightly different place, your wheelbase changes.

Color Position What it does
Black Factory The stock position — the same one the frame ships with. Baseline geometry, the wheelbase we spec'd the Vision around.
Red -5 mm offset Pulls the axle 5 mm forward of factory. Shorter wheelbase, quicker-handling bike. Good for tight tracks, cornering-heavy layouts, and smaller riders who want a snappier feel.
Gold Zero / Center Centers the axle between the two offset positions. A middle-ground setting for riders who want to fine-tune between the Red and the Black.

Pick the chip that matches how you want the bike to ride, install it in both dropouts, and your axle is locked in that position. Track changes next week? Swap chips and you've got a slightly different bike under you without touching anything else on the frame.

If you want an actual full-range adjustment and a built-in tensioner and disc mount, that's the Flip/Chip Convertor — different product, covered in the next section.

The Ultimate Setup — the Flip/Chip Convertor

This is the one we go over in detail on the Supercross BMX YouTube channel, and it's the upgrade most racers who tinker end up wanting. The Flip/Chip Convertor is a fully unitized system that replaces the stock Flip/Chip with one integrated piece. It does three jobs at once that the stock chip and the colored chips don't do:

Feature What it gives you
Full dropout range You get to use the full length of the dropout to set wheel position — not just a fixed spot the way the stock and colored chips work. Way more adjustment, from fully forward to fully rearward and anywhere in between.
Built-in chain tensioner The Convertor has its own chain tensioner built into the unit. You can dial in chain tension at the dropout without running the Vision Idler Arm, and without fighting a slotted axle or a marked dropout to get back to the same spot after a wheel pull.
Built-in disc brake mount An integrated slotted Post Mount disc brake adapter. When you slide the wheel, the brake mount moves with it, so the rotor stays perfectly lined up with the caliper every time. No more hacking a standard adapter or risking damage to the carbon trying to make disc brakes work on a non-disc setup.

One unit, three jobs. Full-range wheel adjustment, chain tension, disc brake mount — all in a single piece, all designed to fit the Vision F1 and Vision RSX dropouts cleanly. That's why we call it the ultimate setup for these frames.

We've put a few videos on the Supercross BMX YouTube channel walking through this in detail — watch those if you want to see it assembled and explained on camera.

The ultimate upgrade If you want the most complete dropout setup we build — full-range axle adjustment, built-in chain tensioner, and an integrated disc brake mount all in one unit — this is it. It works on both the Vision F1 and the Vision RSX. If you're running disc and you want clean, repeatable setup every time you pull the wheel, don't mess around with anything else.

Shop the Flip/Chip Convertor →

Installing and Adjusting the Idler

Install

The Allen bolt threads into a dedicated boss on the bottom of the chainstay. Slide the arm onto the bolt with the washer, thread the bolt into the frame, and torque it firm — tight enough that the arm pivots cleanly without side play. Position the Delrin guide so it rides on the bottom run of the chain, just forward of the rear cog. That's the stock position on every Vision F1 and RSX that leaves our shop.

Set the Tension

With the O.E. or Long Arm, the stop nut sets the tension. Back it off until the arm drops, then turn it in until the guide lightly pushes the chain up. You want the chain just barely snug — you should be able to push it up another 1/4 inch with a finger. That's tight enough to stop chain slap, loose enough to stay quiet.

With the Team Edition, the spring does this automatically. Let the arm down against the chain, and it finds its own tension.

Too tight = loud The Delrin guide is Teflon-impregnated to run as quiet as possible. If you hear a rubbing or whining sound under load, your idler is set too tight. Back the stop nut off a turn and check again. A little chain movement is fine — that's what Delrin is for.

Gear Changes and Wheel Removal

This is where the idler earns its keep. With a standard dropout setup, changing from a 16T cog to a 15T cog means moving the wheel forward in the dropouts, re-setting the axle, and re-centering the brake. With the idler doing the tension work, you can change cogs without moving the wheel at all — the idler takes up the slack automatically (Team Edition) or with one turn of the stop nut (O.E. and Long Arm).

Same for pulling the rear wheel. With the Team Edition, just push the arm up, slide the wheel out, drop it back in, let the arm down. Done. No chain tension to re-set. No brake to re-align.

Shop the Idler, the Flip/Chips, the Convertor, and the Frames

Vision Idler Arm Assembly → O.E., Long Arm, and Team Edition Flip/Chip Convertor → Unitized: full dropout range + built-in tensioner + disc mount Flip/Chip Options → Black Factory, Red -5mm, Gold Zero Vision F1 → Carbon fiber race chassis Vision RSX → Aluminum race frame Vision F1 Pro 24" → Carbon cruiser chassis

Frequently Asked Questions

Does the same idler fit both the Vision F1 and the Vision RSX?

Yes. The Vision Idler Arm Assembly is the direct factory replacement for both frames. We designed the two frames with the same idler mount and the same 45 mm chain line so the part is interchangeable.

Do I have to run an idler on my Vision F1?

No. Every Vision F1 ships with a Flip/Chip that gives you dropout-style chain tension without an idler arm. The Flip/Chip is set for a 43/16 gear on a half-link chain. If you run a fixed gear and don't change cogs, the Flip/Chip is all you need. If you change gears or want the clean chain feed the guide gives, run the idler.

What's the difference between O.E., Long Arm, and Team Edition?

The O.E. is the stock 7075 arm — lightest, simplest. The Long Arm is 1 inch longer so you can run a wider range of cogs without re-setting the stop nut. The Team Edition is spring-loaded — it finds its own tension every time, so gear changes and wheel pulls are quick. Most riders should start with the O.E. Team Edition is the one for racers who pull wheels and swap cogs a lot.

What's the difference between the Red, Gold, and Black Flip/Chips and the Flip/Chip Convertor?

Two completely different products. The Red, Gold, and Black Flip/Chips are just three axle-position chips — Black is the factory position, Red is a -5 mm offset, Gold is Zero / center. They swap out the stock chip and put the axle in a different spot. No tensioner, no disc mount — just a different position.

The Flip/Chip Convertor is a fully unitized upgrade that replaces the stock chip with one integrated unit. It gives you the full range of the dropout, has a built-in chain tensioner, and has a built-in slotted Post Mount disc brake adapter. That's the ultimate setup. Shop the Flip/Chip Convertor →

Do I still need the idler if I run the Flip/Chip Convertor?

No. The Flip/Chip Convertor has its own chain tensioner built in, so it handles tensioning at the dropout. Some riders still run the idler on top of it for the clean chain feed the Delrin guide gives, but you don't have to.

Can I run disc brakes on the Vision F1 with the Flip/Chip Convertor?

Yes, and this is the cleanest way to do it. The Flip/Chip Convertor has a built-in slotted Post Mount disc brake adapter, so the brake mount moves with the wheel when you adjust axle position. That keeps the rotor perfectly lined up with the caliper every time — no hacking a standard adapter, no risk of damaging the carbon trying to run disc on a non-disc-intended setup.

What's the 45 mm chain line?

Chain line is how far out from the centerline of the bike the chain runs. The Vision F1 and Vision RSX are both built around a 45 mm chain line, meaning the front gear and the rear cog should both sit 45 mm out from center. Set them both at 45 mm and the chain runs in a perfectly straight line. No side load, no friction, no lost power.

What is the chain guide made of?

Delrin — a thermoplastic impregnated with Teflon. It's chosen specifically for low friction and quiet running. If your idler is making noise, that's almost always a sign the tension is set too high. Back the stop nut off a turn and it will quiet down.

How tight should the idler be?

Just barely snug. With the arm in place, you should be able to push the chain up another quarter inch with one finger. Tight enough that it won't slap the chainstay under load, loose enough that it stays quiet. If it's whining or buzzing, it's too tight.

Why is my idler squeaking or buzzing?

Almost always tension. Back the stop nut off one turn (or check the spring position on the Team Edition) and re-test. If it's still noisy, check your chain line — if your front or rear gear isn't at 45 mm, the chain will drag across the guide at an angle.

Can I change cogs without moving the rear wheel?

Yes. That's the whole point of the idler. With the O.E. or Long Arm, back off the stop nut, change the cog, retension. With the Team Edition, the spring handles it — just change the cog and let the arm back down. No wheel movement, no brake re-centering.

Does the idler slow the bike down?

No. A properly tensioned idler with a straight 45 mm chain line runs with less drivetrain friction than a chain that's loose and slapping. The Delrin guide is low-friction and the chain is only ever in light contact. A bad chain line and a loose chain cost more power than the idler ever will.

Can I buy the idler assembly separately if I already own a frame?

Yes. The Vision Idler Arm Assembly is sold on its own as a direct replacement. All three versions (O.E., Long Arm, Team Edition) use the same mount. You can also start with the O.E. and upgrade later.

Still Not Sure Which One You Need?

Here's the short version. Most riders on a Vision F1 or a Vision RSX should be running the O.E. Vision Idler Arm — it's the lightest and it's what we spec'd the frame around. Upgrade to the Team Edition when you're racing enough that pulling wheels and swapping cogs is a weekly event. Grab the Long Arm only if you know you want an extra-wide gearing range.

If you want the full pro setup — full-range axle adjustment, a built-in chain tensioner, and an integrated disc brake mount all in one unit — step up to the Flip/Chip Convertor. That's the ultimate version of what the Vision platform can do. Separately, if you just want to play with wheelbase, grab a Red, Gold, or Black Flip/Chip option and swap it for the stock chip.

If any of this is still unclear, email the shop — info@supercrossbmx.com — or watch the video at the top of this page. We'd rather spend 5 minutes getting you the right part than have you second-guess it on the track.

Last updated April 20, 2026 · Written by Bill Ryan, Supercross BMX founder (since 1989).
