Supercross BMX | Vision F1 Pro 24" - Châssis de course Cruiser en fibre de carbone

$ 2,195.95
1 produit en stock

Only the best. Period.

SEE THE FULL PRODUCT DESCRIPTION & VIDEOS HERE

  • Monocoque (one-piece) frame and fork construction

    • TORAYCA T1100-KS (frame) / TORAYCA T700S Nano Alloy Resin (forks)

  • Accepts 120mm Disc Brakes & All V-Braking systems

    • Includes internal cable ports for upper V-Brake routing & lower disc routing

  • Full captive, solid carbon rear dropout featuring the Supercross BMX Flip/Chip

  • Built-in chain idler/guide

  • Traditional Euro BB Shell bottom bracket

  • Each Pro chassis contains:

    • 1 x Vision F1 Frame, 1 x Vision F1 matching fork, 1 x Steering tube top cap, 1 x 20mm adapters, 1 x Hydraulic disk brake adapter kit, 1 x Mechanical disk brake adapter arm, 2 x Removable V-Brake mounts, 2 x FLIP/CHIP’s (15mm & 10mm), 1 x Chain Idler/Guide, 1 x Sealed Bearing Headset, Mini, Junior, Expert & Expert XL Chassis kits only contain 1 set of FLIP/CHIPs for the 100m axle size. They also use a 10mm front dropout on the fork





The Vision F1 is built with the best materials, keeping you looking your best on the track.

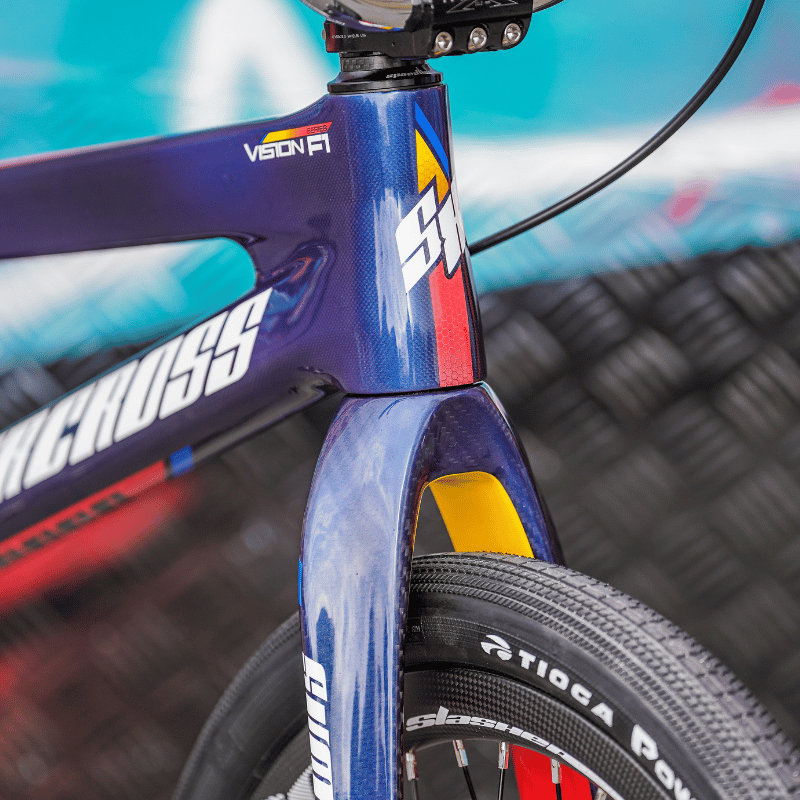

Utilizing World Championship-winning geometry of past Supercross frames, the VISION F1 revolutionizes the platform. Unlike its predecessors, the VISION F1 utilizes monocoque construction, also known as one-piece construction. The frame and fork are each constructed of a uniform piece of high-modulus carbon fiber. No joints, no welds, no bonding areas! This construction method is the most efficient and premium way of producing carbon fiber components. We did this while retaining the tried and trued carbon pre-preg material, TORAYCA T1100-KS (frame) and T700S Nano Alloy Resin (Forks).

TORAYCA T1100-KS allows us to reduce the frame’s weight another 6% while simultaneously increasing stiffness and power transfer. The efficiency of monocoque construction paired with T1100-KS allowed us to reduce material in less stressed regions and apply it to areas of extreme power transfer. The VISION F1 launches like no other! The Chart depicted above is a product of TORAYCA's in-house testing. T1100-KS is used on fighter jets and Formula 1 cars, and now you get to ride it! The VISION F1 is the fastest platform in BMX Racing, retaining every bit of that confidence-inducing feel of a Supercross BMX frame.

SUPERCROSS BMX VISION F1 24" CARBON RACE FRAME GEOMETRY CHART

VISION F1 Carbon Pro 24"
 Pro XL 24"
 Pro XXL 24"
A. Top Tube Length 21.5" 22" 22.5"
B. Chainstay length 15.3" 15.3" 15.3"
C. Steertube Angle 73.5º 73.5º 73.5º
D. Seat Tube Angle 70º 70º 70º
E. Bottom Bracket Height 11.6" 11.6" 11.6"
Seat Post Size 27.2mm 27.2mm 27.2mm
Headset Type 1 1/8" - 1.5" Integrated 1 1/8" - 1.5" Integrated 1 1/8" - 1.5" Integrated
Wheel Size 24" X 1.75" 24" X 1.75" 24" X 1.75"

Chaque châssis Pro contient :

  • 1 x cadre Vision F1
  • 1 x fourche assortie Vision F1
  • 1 x capuchon supérieur de tube de direction
  • Adaptateurs 1x20mm
  • 1 x kit d'adaptateur de frein à disque hydraulique
  • 1 x bras adaptateur de frein à disque mécanique
  • 2 supports de frein V-Brake amovibles
  • 2 x FLIP/CHIP (15 mm et 10 mm)
  • 1 x tendeur de chaîne/guide
  • 1 x casque à roulement scellé

*Les kits de châssis Mini, Junior, Expert et Expert XL ne contiennent qu'un seul jeu de FLIP/CHIP pour la taille d'axe de 10 mm. Ils utilisent également une patte avant de 10 mm sur la fourche.

Il s'agit d'un kit de châssis, vous en aurez toujours besoin,

Nous stockons la plupart de ces pièces pour pouvoir vous aider à le construire, ou vous pouvez échanger des pièces de votre vélo existant.

Les tailles Pro et plus grandes prennent une pince de 31,9 mm et un poteau de 27,2. L'Expert et les plus petits prennent un poteau de 22,2 et une pince de 25,4 mm. Nous avons tous les poteaux et pinces en stock pour que vous puissiez terminer la construction.

Le Vision F1 accepte les freins à disque de 120 mm et tous les systèmes de freinage en V. Hydraulique et Mécanique. L'hydraulique s'installe derrière le hauban avec l'adaptateur inclus, le mécanique se placera au-dessus du hauban avec l'adaptateur inclus.

Le Vision F1 utilise notre géométrie de course Supercross BMX gagnante du Championnat du monde qui a été affinée au cours de 3 décennies de courses de BMX. N'hésitez pas à consulter cette FAQ et à cliquer sur l'onglet Géométrie pour en savoir plus !

Malheureusement, nous ne vendons pas de maillots d'équipe, mais vous pouvez représenter la Vision avec n'importe lequel de nos vêtements Lifestyle , y compris un maillot Vision F1 !
