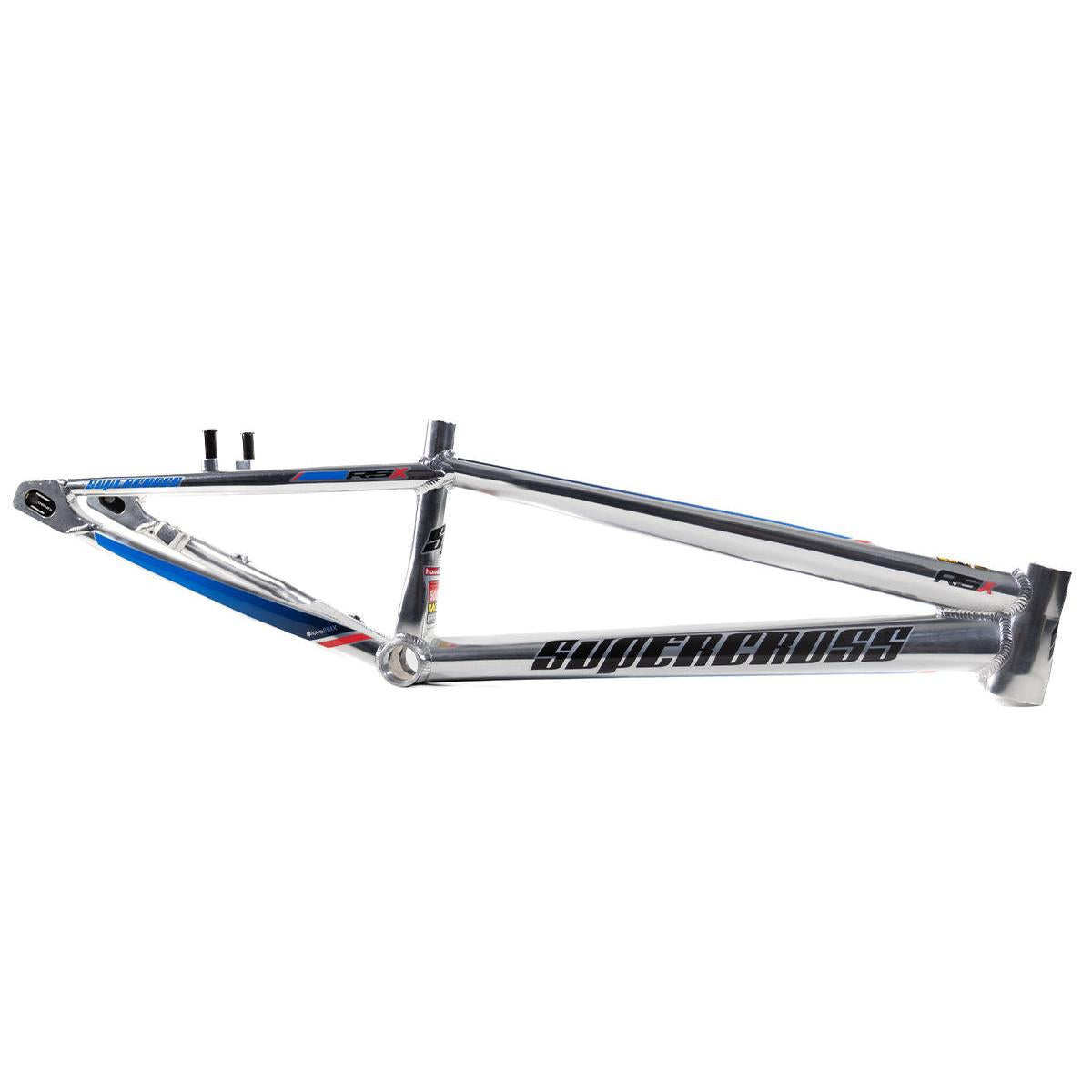

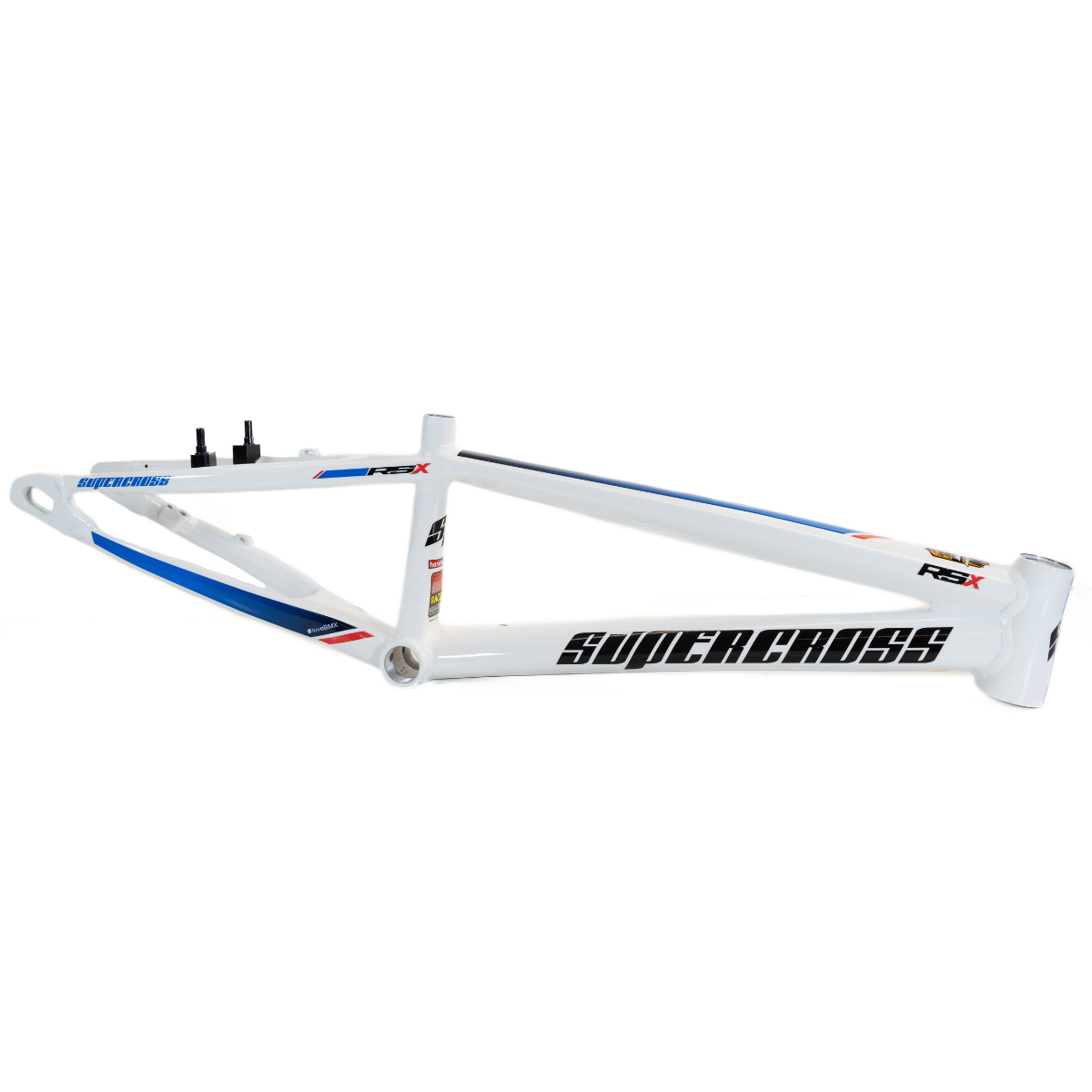

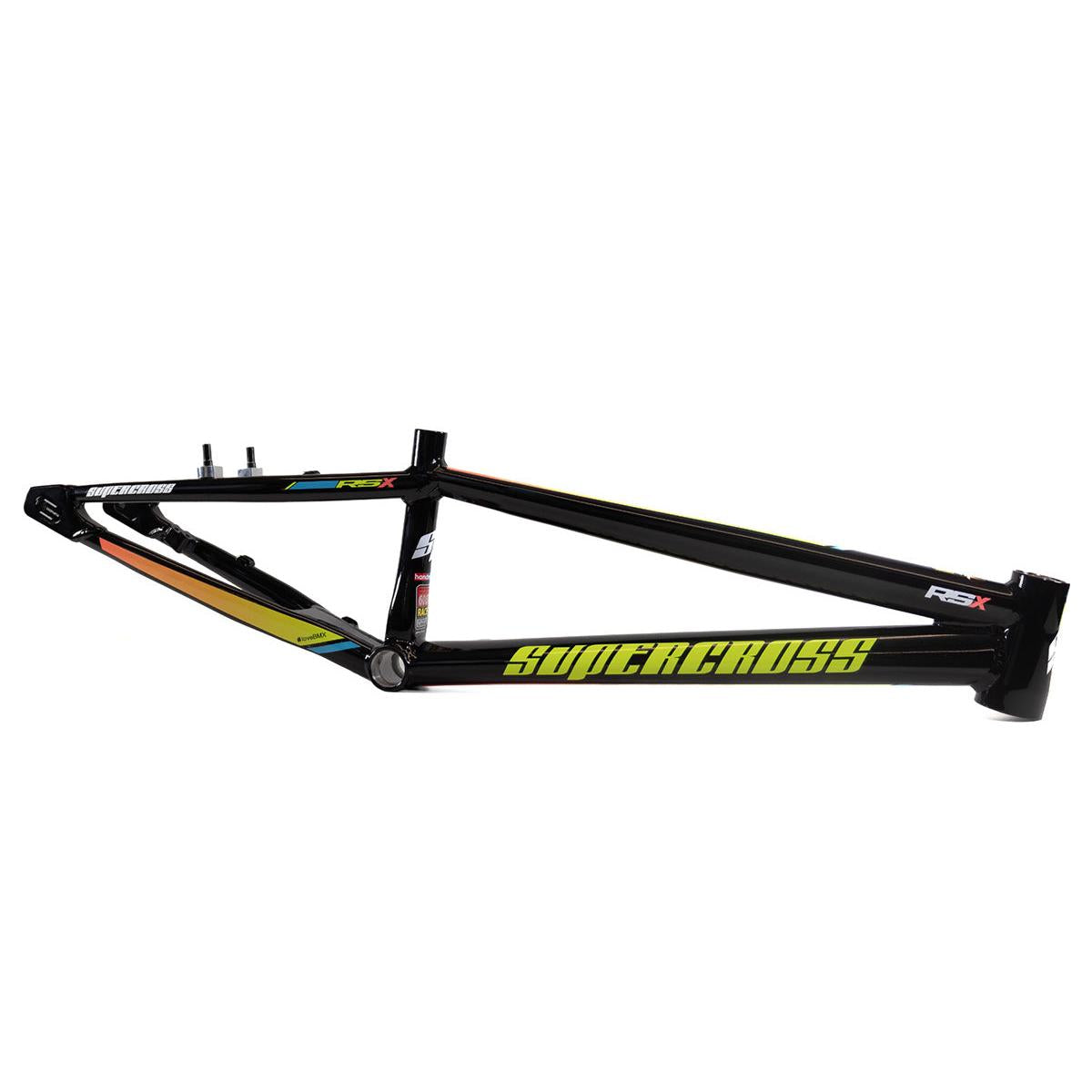

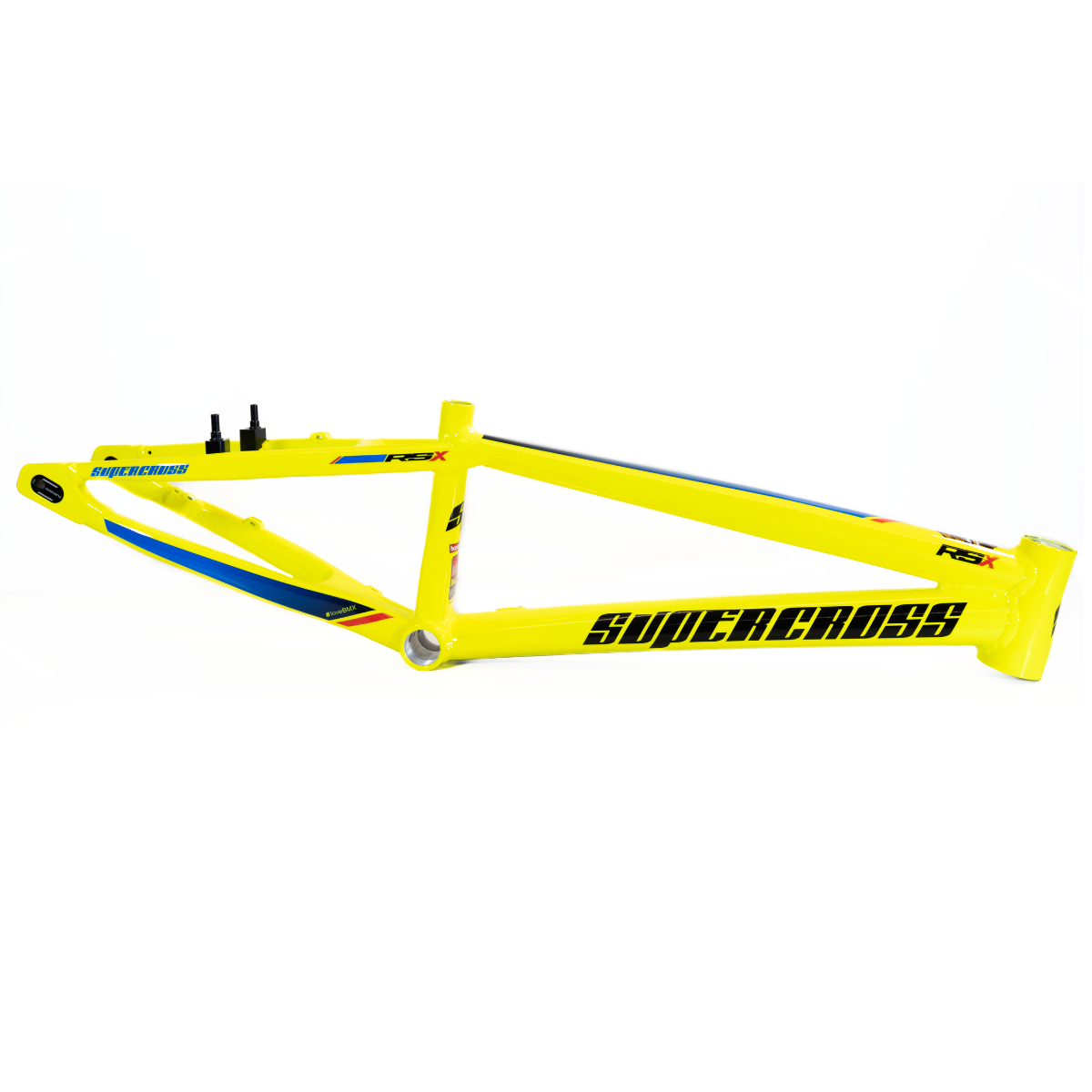

Supercross BMX | Vision RSX - Cadre de course BMX en aluminium
$ 549.95
- Overview
- Materials
- Geometry
Unveiled from the #SecretLabs of Supercross HQ, The VISION RSX is here!
NOW IN STOCK AND SHIPPING!!
Utilizing World Championship winning geometry of past Supercross frames, the VISION RSX revolutionizes the platform. Taking all the preconcieved notions of aluminum racing frames and tossing it on end. It is a Taper wall 6000 series aluminum frame, hollow CNC'd dropouts, Disc and V Brake Compatible, and affordable. It is the fastest way to get from the gate to the podium. The feel of Carbon for 1/2 the price.
The VISION RSX is forward-thinking as it’s designed for not only today’s needs but the needs of tomorrow!
- Taper wall 6000 series aluminum frame
- Every VISION RSX accepts 120mm Disc Brake rotors AND all V-Braking systems
- Molded internal cable ports for both the upper V-Brake routing and lower DISC routing to avoid any extreme bends that would hinder the cable lines
- Full captive rear dropout, with the axle fully encased
- FLIP/CHIP allows for easy installation of 15mm or 10mm ( 3/8 ) axles, able to be mounted rear or front and swappable to accomodate proper sizing.
- Built-in Idler/Guide that will take out chain slack
- Traditional threaded Euro BB Shell across all models
- CNC'd Hollow 6061 T-6 Billet Aluminum Dropouts
- Head tubes use full CNC'd Aluminum Bearing Races
- Pro and Larger sizes feature Tapered Integrated head tubes that accept 1 1/8" - 1.5" steer tube forks
- Accepts a traditional 1 1/8" straight steer tube through the assistance of an adapter
- Expert XL uses a Campy Std. Size for 1" or 1 1/8" steer tube forks depending upon which bearing kit you use
Each Pro size Supercross BMX VISION RSX Frame Contains a Hydraulic Disk Brake Adapter Kit, Removable V-Brake Mounts, 2 Sets of FLIP/CHIP's (1-15mm set and 1-10mm ( 3/8") set) Expert XL, only contain 1 set of Flip Chips for the 10mm Axle size.
The ENVY RSX is built with the best materials, keeping you looking your best on the track.
Utilizing World Championship winning geometry of past Supercross frames, the VISION RSX revolutionizes the platform. Taking all the preconcieved notions of aluminum racing frames and tossing it on end. It is a Taper wall 6000 series aluminum frame, hollow CNC'd dropouts, Disc and V Brake Compatible, and affordable. It is the fastest way to get from the gate to the podium. The feel of Carbon for 1/2 the price.
SUPERCROSS BMX ENVY RS7 ALUMINUM RACE FRAME GEOMETRY CHART
| VISION RSX | Expert XL | Pro | Pro XL | Pro XXL | Pro XXXL | 24" Pro XL |
| A. Top Tube Length | 20" | 20.5" | 21.25" | 21.75" | 22.25" | 22" |
| B. Chainstay length | 14.0" | 15.0" | 15.2" | 15.2" | 15.2" | 15.3" |
| C. Steertube Angle | 74º | 74.5º | 74.5º | 74.5º | 74.5º | 73.5º |
| D. Seat Tube Angle | 70º | 70º | 70º | 70º | 70º | 70º |
| E. Bottom Bracket Height | 11.2" | 11.6" | 11.6" | 11.6" | 11.6" | 11.6" |
| Seat Post Size | 22.2mm | 27.2mm | 27.2mm | 27.2mm | 27.2mm | 27.2mm |
| Headset Type | 1 1/8"" Integrated | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated |
| Wheel Size | 20" X 1 3/8" | 20" X 1.75" | 20" X 1.75" | 20" X 1.75" | 20" X 1.75" | 24" x 1.75" |
* Specifications will vary depending upon your choice of Fork, Tire and Rim selection. Measurements are based off of a Supercross Fork and equal size (ie. 20X1.75 front and rear) tire combination. Specifications subject to change without notice.
All weights are measured on a UPS Calibrated Scale. Weights will vary depending upon the amount of powdercoat and the amount of filler rod used on a particular frame. Polished Frames and Anodized Frames are the lightest as there is no paint. Weights and Specifications are subject to change without notice.
-
Le Supercross Vision RSX est livré avec le cadre, les puces Flip, les supports V-Brake et les adaptateurs de frein à disque. Vous devez acheter le rouleau de votre choix avec le cadre.
-
Le Supercross Vision RSX prend un casque intégré de style Campy® - 1 1/8" sur l'Expert XL et un casque conique 1 1/8" - 1,5" sur le Pro et plus grand.
-
Le Supercross Vision RSX prend une pince de 25,4 et un poteau de 22,2 sur l'Expert XL et un poteau de 27,2 et une pince de 31,9 sur les cadres professionnels et plus grands.
-
Le Supercross Vision RSX est un cadre, vous aurez donc besoin de tout le reste.
- Tige
- Entretoises
- Barres
- Poignées
- Freins
- roues
- Pneus et chambres à air
- Kit manivelles et pédalier
- Chaîne
- Pédales
- Siège
- Tige de selle et collier de serrage
Nous stockons la plupart de ces pièces pour pouvoir vous aider à le construire, ou vous pouvez échanger des pièces de votre vélo existant.
-
Le Supercross Vision RSX fait partie de notre programme de réflexion sur l'avenir et est capable d'utiliser les freins en V traditionnels et les freins à disque plus modernes afin que vous ayez les deux options à votre disposition sur un seul cadre. Le choix vous appartient quant à la façon dont vous envisagez vos besoins en matière de course.
-
Le Supercross Vision RSX est la même géométrie Supercross gagnante du Championnat du monde que celle trouvée sur les cadres de course Vision F1 et ENVY RS7.
-
Malheureusement, nous ne vendons pas de maillots d'équipe, mais vous pouvez représenter le RSX avec n'importe lequel de nos vêtements Lifestyle.
Customer Reviews
Based on 8 reviews
100%
(8)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
24’ rsx
Fast shipping and awesome service. Still in the process of putting it together and can’t wait to ride it!
B
5stars for product cons final fitment issues RSX black chrome cruiser xl
This is a fantastic riding looking innovative bike fair price 5 stars ...cons fit on idler junk in slot had to be carefully removed also bb was not chased properly for delivery cost me 50 it was barely cut event after all of this bike is awesome !!
D
Nice
S
RSX XXXL ![User picture]()
Bought my RSX XXXL direct from Supercross.
I am absolutely 100% happy with the purchase!!!! It handles great, it looks amazing, the frame is wicked stiff, and its hella trick. I get compliments every time I get to the track. On top of that everyone at Supercross was above and beyond helpful!!!!! I had many questions before I made my purchase and way more after. Every single question was answered with promptness and kindness!!! Call me old fashioned, but customer service goes a long way with me! Supercross make the best bikes, and are the best at taking care of their customers!
L

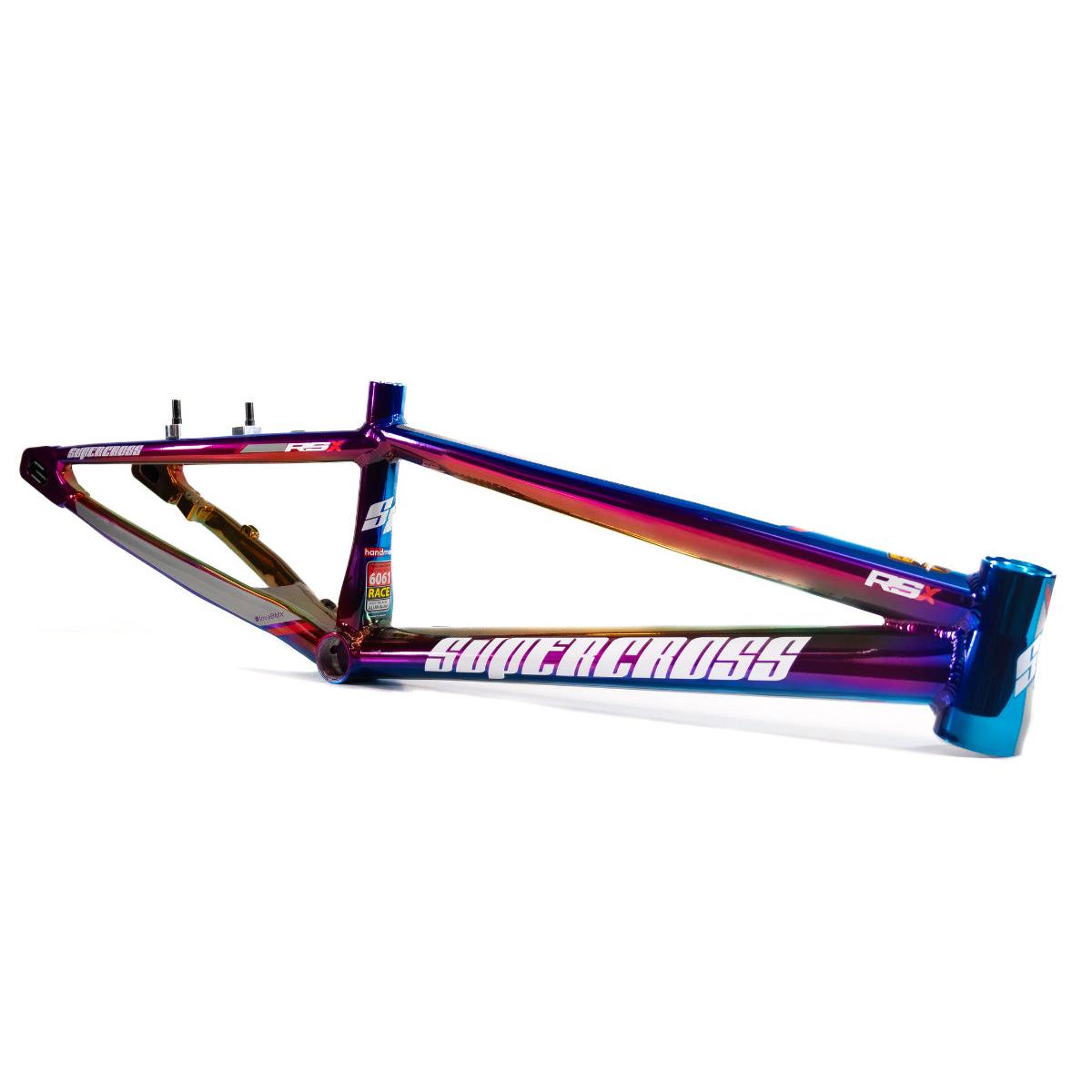

RSX frame jet fuel
I bought an RSX jet fuel frame on the Supercross website from France and everything went well. I received it rather quickly. The color is as beautiful as I imagined :). I can't wait to finish the assembly and try it out !
But I have a problem understanding how to tighten the chain ! There is no chain tensioner??? Help me plz.. :)
