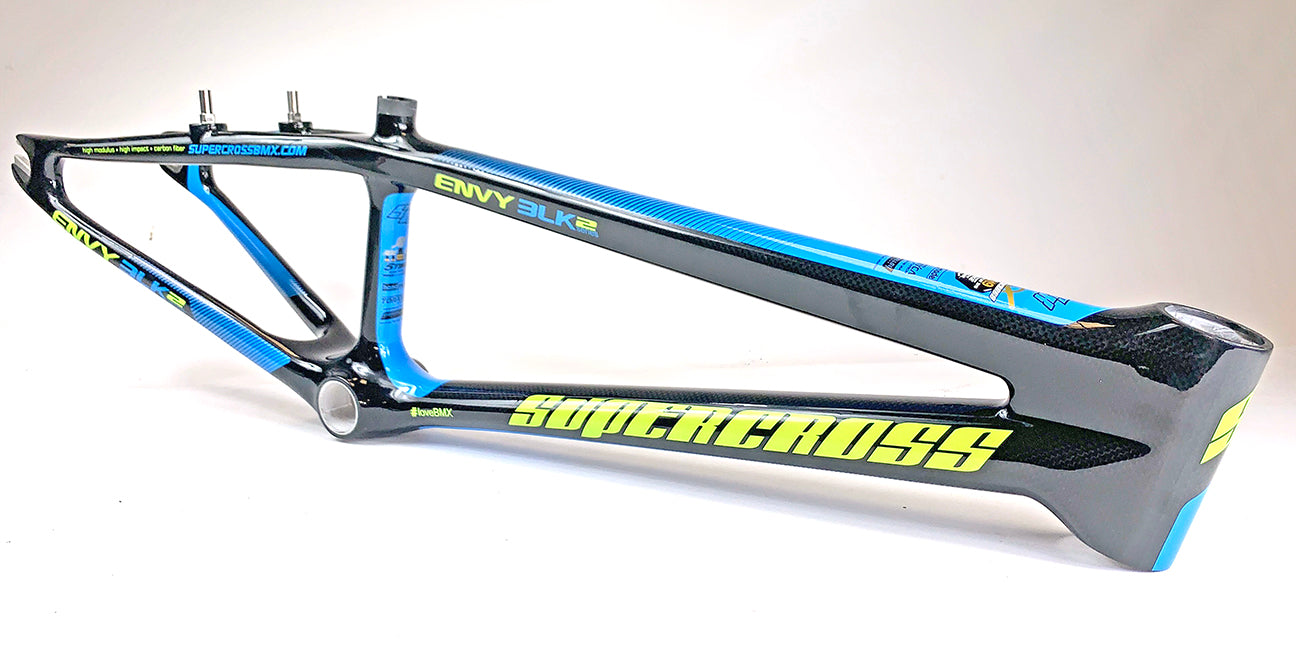

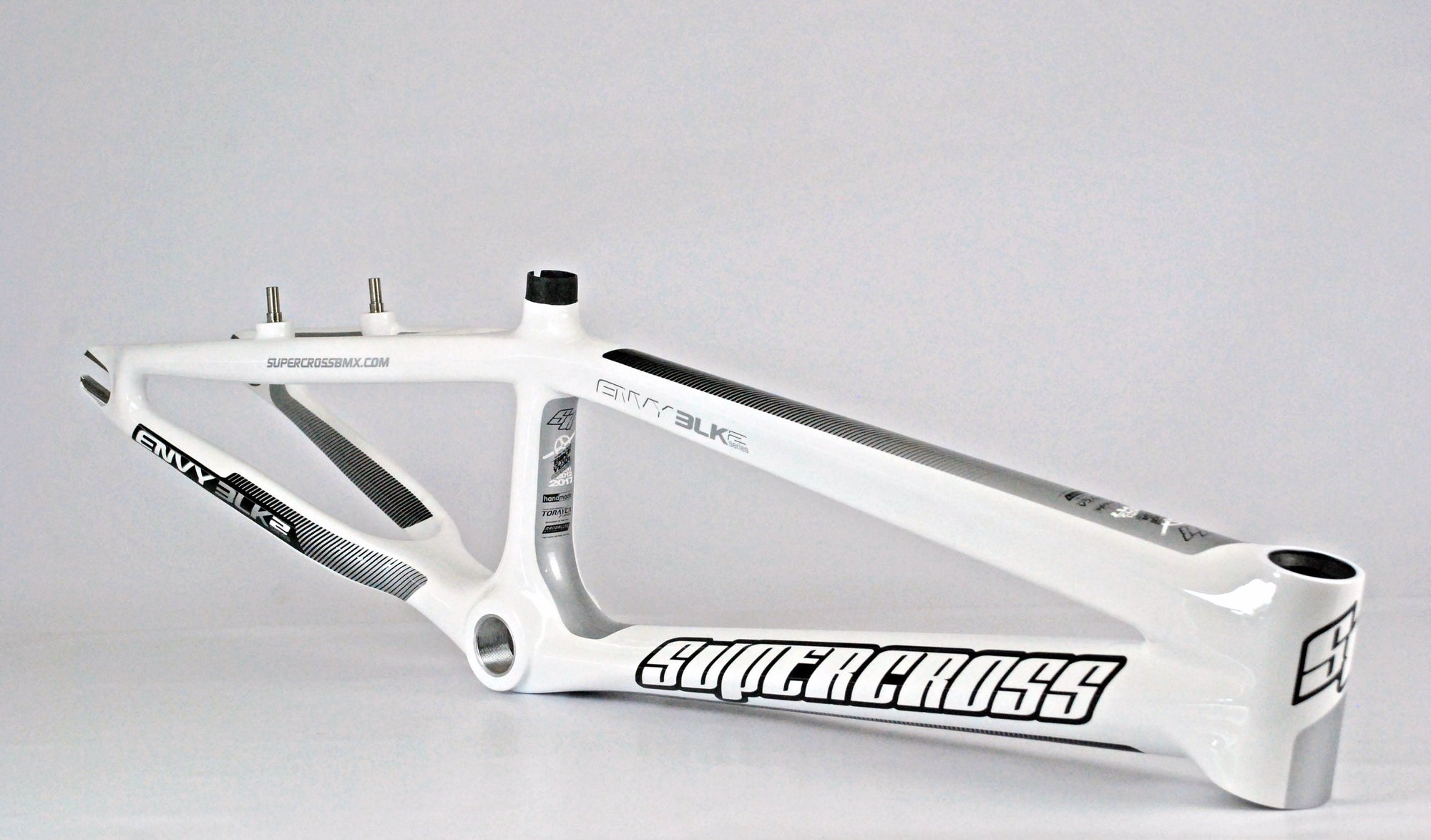

Supercross BMX | ENVY BLK 2 - Cadre de course BMX en fibre de carbone

1 produit en stock
  • Overview
  • Materials
  • Geometry
supercross bmx, envy blk 2 bmx race frame, bike of the year

In 2014 we introduced the ENVY BLK Carbon Fiber BMX race Frame. It changed the game for how carbon fiber BMX race frames were built. By utilizing more advanced materials and molding processes we created the apex carbon frame for the time.



Now for 2019, with the ENVY BLK 2, it was time to change the game again. As with our ENVY RS7, the BLK 2 is evolutionary, not revolutionary!



Some of you have been screaming as well for custom paint jobs. And while we would love to offer you custom paint jobs, it just isn't affordable to do customs with the ENVY BLK lines. But if you keep watching the site we will continually release limited-edition colorways!



To eliminate that nasty creaking of a press-fit bottom bracket, the BLK2 uses a traditional threaded Euro BB Shell across all models. This technology has proven itself to be the most dependable BB interface. All dropouts are solid Carbon fiber with Titanium inserts molded directly into the frame. The Junior thru Expert XXL uses a 10mm ( 3/8" ) rear axle size, and the Pro sizes use a 15mm rear dropout, also available with a 10mm axle adapter.

The headtubes use fully molded Carbon Fiber bearing races to provide the strongest headtube on the market. The Junior thru Expert XXL uses a Campy Std. Size that lets you use either the 1" or the 1 1/8" steertube forks, depending upon which bearing kit you use.



Pro sizes use Tapered Integrated headtubes allowing the use of 1 1/8" - 1.5" steertube forks. It can still accept the traditional 1 1/8" straight steertube through the assistance of an adapter included within the Speedline Tapered Headset



All Supercross BMX ENVY BLK 2 Frames, like our traditional ENVY BLK accept a traditional V Brake system. Lightweight, Easily adjustable, and no need for a special hubset.

Utilizing the same World Championship winning geometry of all past Supercross frames, the ENVY BLK 2 evolves the platform by keeping the same mold and technique of the original ENVY BLK but utilizing a new carbon pre-preg material; T1100-KS.

T1100-KS allows us to reduce the frame’s weight another 6% while simultaneously increasing its stiffness and power transfer. The Chart to the left is a product of TORAYCA's testing. This stuff is the same material used for fighter jets, F1 cars, and you get to ride it too! So what are you getting with the BLK2? An extremely lightweight and stiff frame built for the best BMX racer. We did all of this while keeping the same comfortable feel of any other Supercross Frame.

GEOMETRY





ENVY BLK 2 CarbonProPro PlusPro XLPro XXLPro XXXL
A. Top Tube Length20.5"20.75"21.25"21.75"22.25"
B. Chainstay length15.0"15.0"15.2"15.2"15.2"
C. Steertube Angle74.5º74.5º74.5º74.5º74.5º
D. Seat Tube Angle70º70º70º70º70º
E. Bottom Bracket Height11.6"11.6"11.6"11.6"11.6"
Seat Post Size27.2mm27.2mm27.2mm27.2mm27.2mm
Headset Type1 1/8" - 1.5" Integrated1 1/8" - 1.5" Integrated1 1/8" - 1.5" Integrated1 1/8" - 1.5" Integrated1 1/8" - 1.5" Integrated
Wheel Size20" X 1.75"20" X 1.75"20" X 1.75"20" X 1.75"20" X 1.75"



ENVY BLK 2 CarbonJuniorExpertExpert XLExpert XXL
A. Top Tube Length18.5"19.5"20"21"
B. Chainstay length12.5"13.75"14.0"14.25"
C. Steertube Angle73.5º74º74º74º
D. Seat Tube Angle70º70º70º70º
E. Bottom Bracket Height10.7"11.2"11.2"11.25"
Seat Post Size22.2mm22.2mm22.2mm22.2mm
Headset TypeCampy IntegratedCampy IntegratedCampy IntegratedCampy Integrated
Wheel Size20" X 1"20" X 1 3/8"20" X 1 3/8"20" X 1 3/8"

* Specifications will vary depending upon your choice of Fork, Tire and Rim selection. Measurements are based off of a Supercross Fork and equal size (ie. 20X1.75 front and rear) tire combination. Specifications subject to change without notice.All weights are measured on a UPS Calibrated Scale. Weights will vary depending upon the amount of powdercoat and the amount of filler rod used on a particular frame. Polished Frames and Anodized Frames are the lightest as there is no paint. Weights and Specifications are subject to change without notice.
