Supercross BMX | Passion BMX Frame
$ 399.95
37 Years of Supercross
Building BMX race frames since 1989 — 8× USA BMX Bike of the Year, 3× Team of the Year, Olympic riders from Tokyo to Paris. Read the full story →
YOUR PASSION. OUR PASSION.
Frame Construction & Features

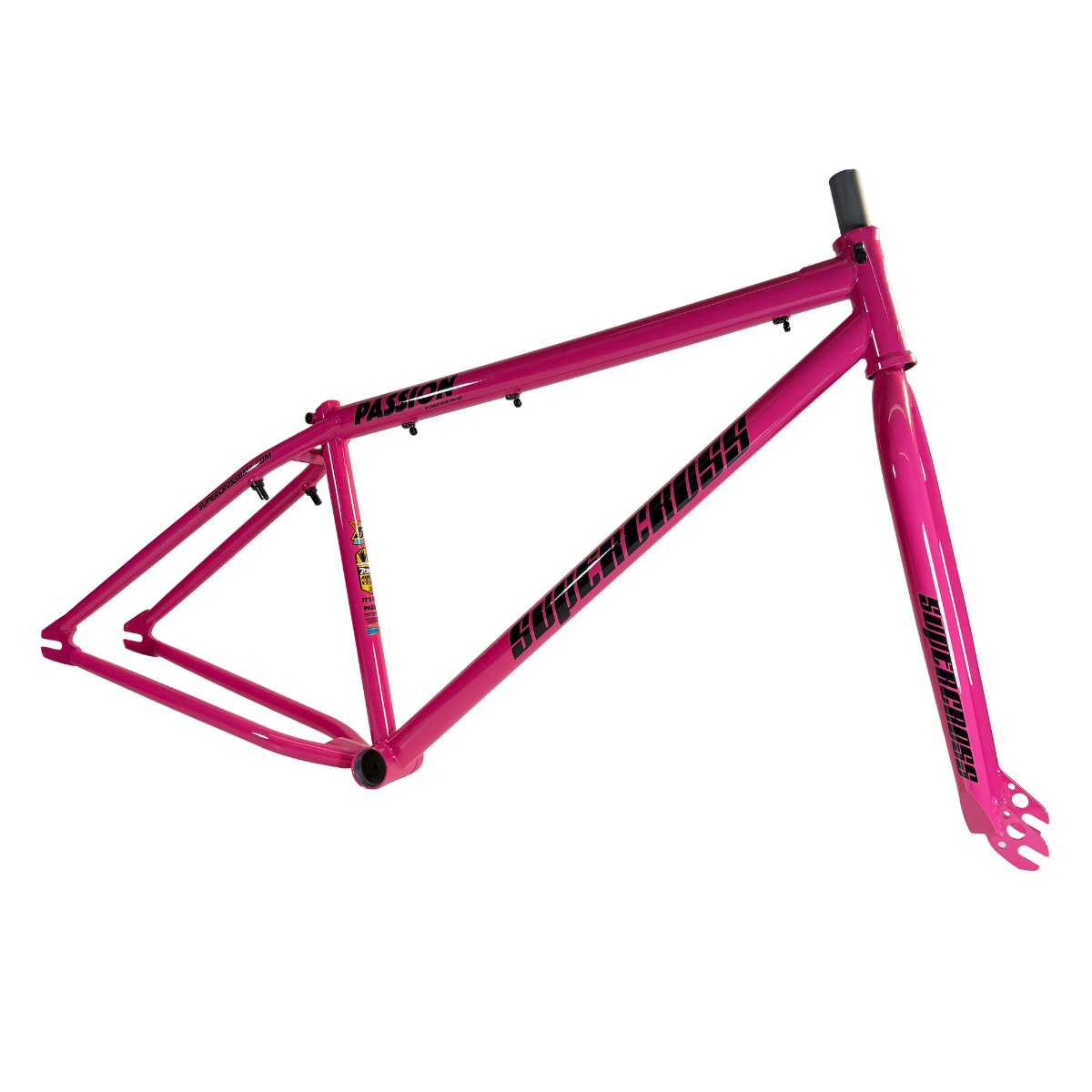

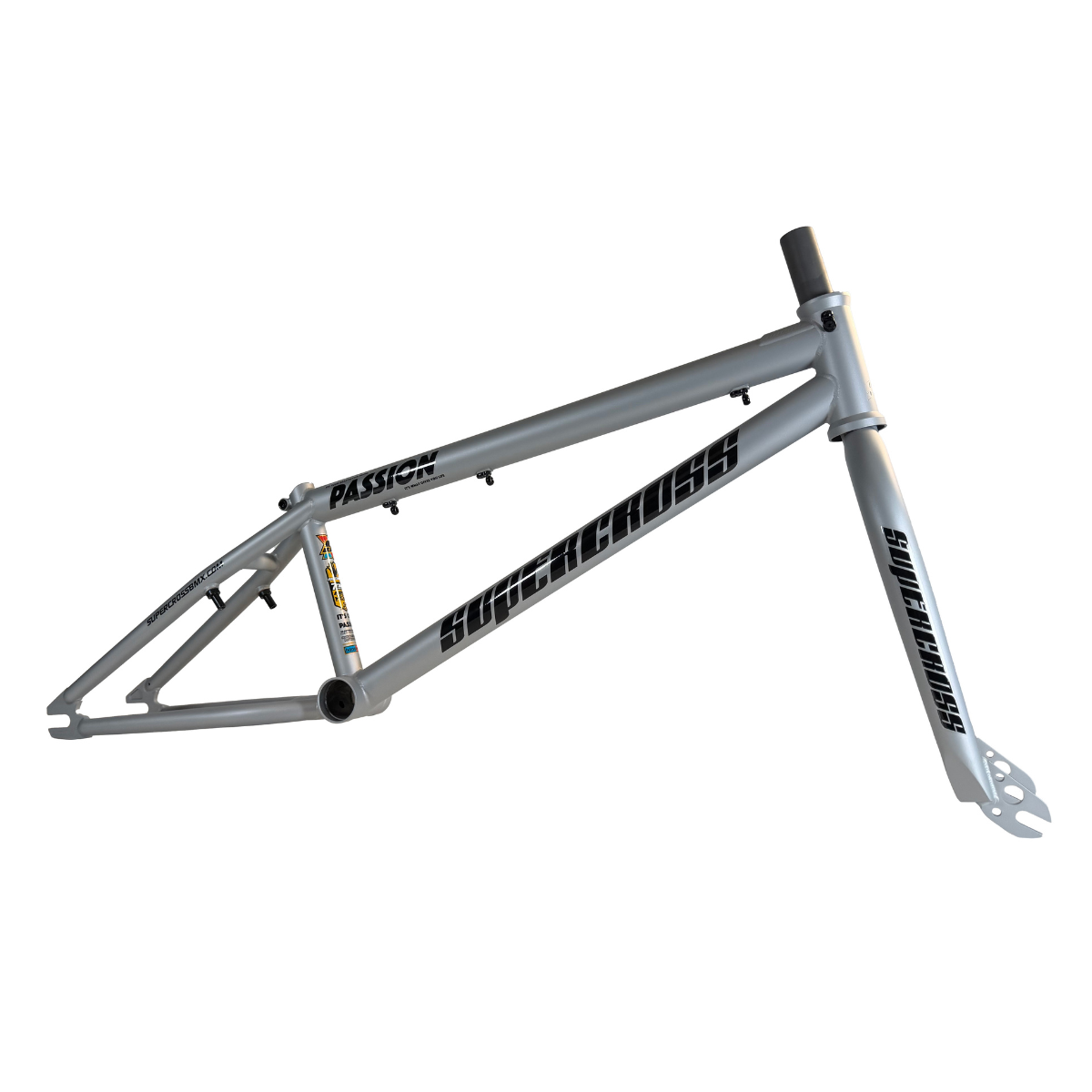

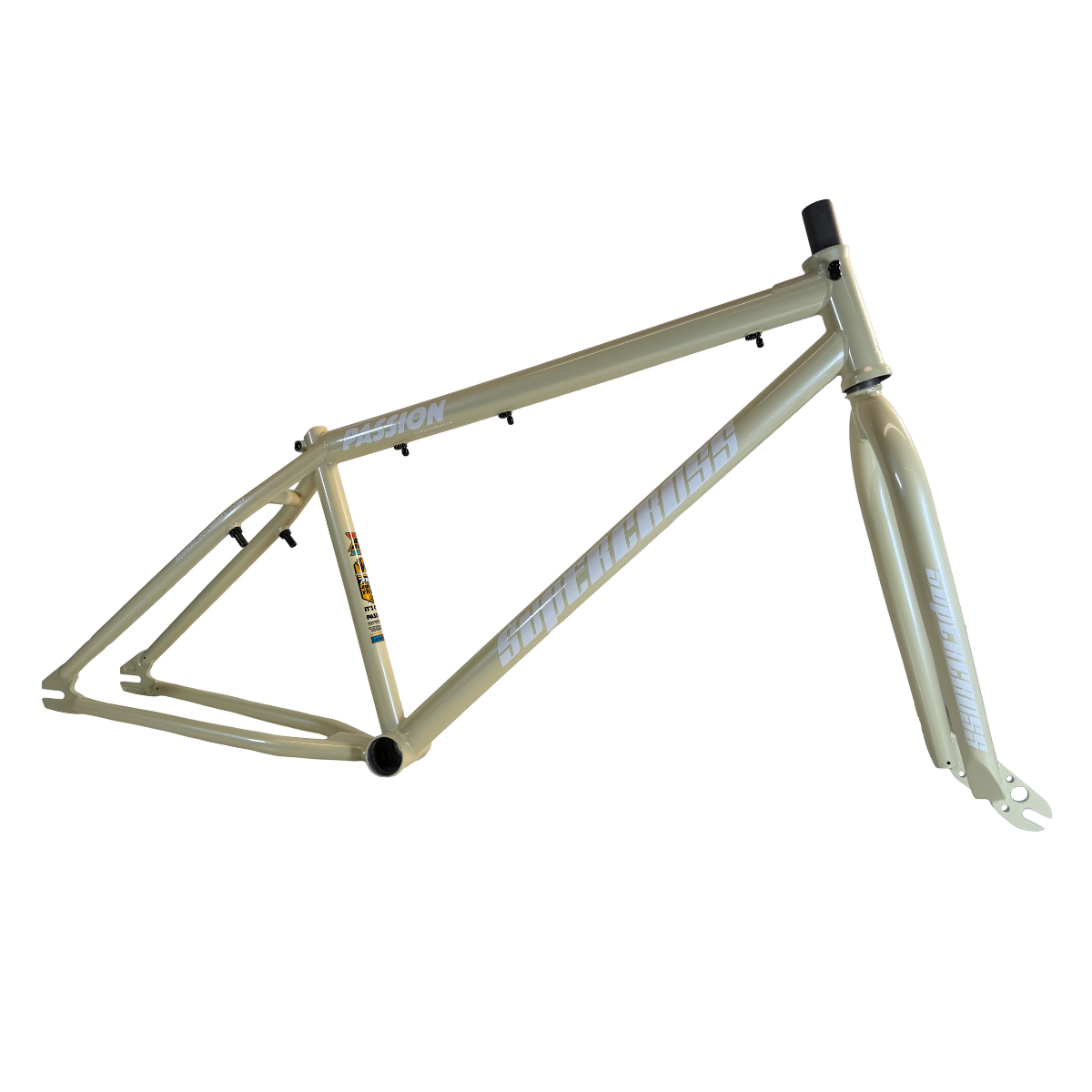

The Passion is a full-featured Street / Park / Trail frame, built with a premium blend of full seamless and heat-treated Cro-Mo, along with Reynolds tubing blends.
Key features include:
- 1 1/8" Campy integrated Cro-Mo head tube, 3D CNC machined
- 3D CNC machined Mid BB shell
- Removable 990 brake mounts
- Built-in seat post clamp with pivotal cut, allowing you to drop your seat as low as you want
- CNC’d and laser-cut 1/4" thick Cro-Mo 14mm dropouts
- Wishbone lug behind the BB shell
Every feature you want is here—ready to ride and ready to have fun.
Available Sizes
Currently available in the following sizes:
- 20" – 20.5" TT
- 20" – 21" TT
- 20" – 21.5" TT
- New 26" and 29" wheel sizes
Available in:
- Hi-Vis Yellow

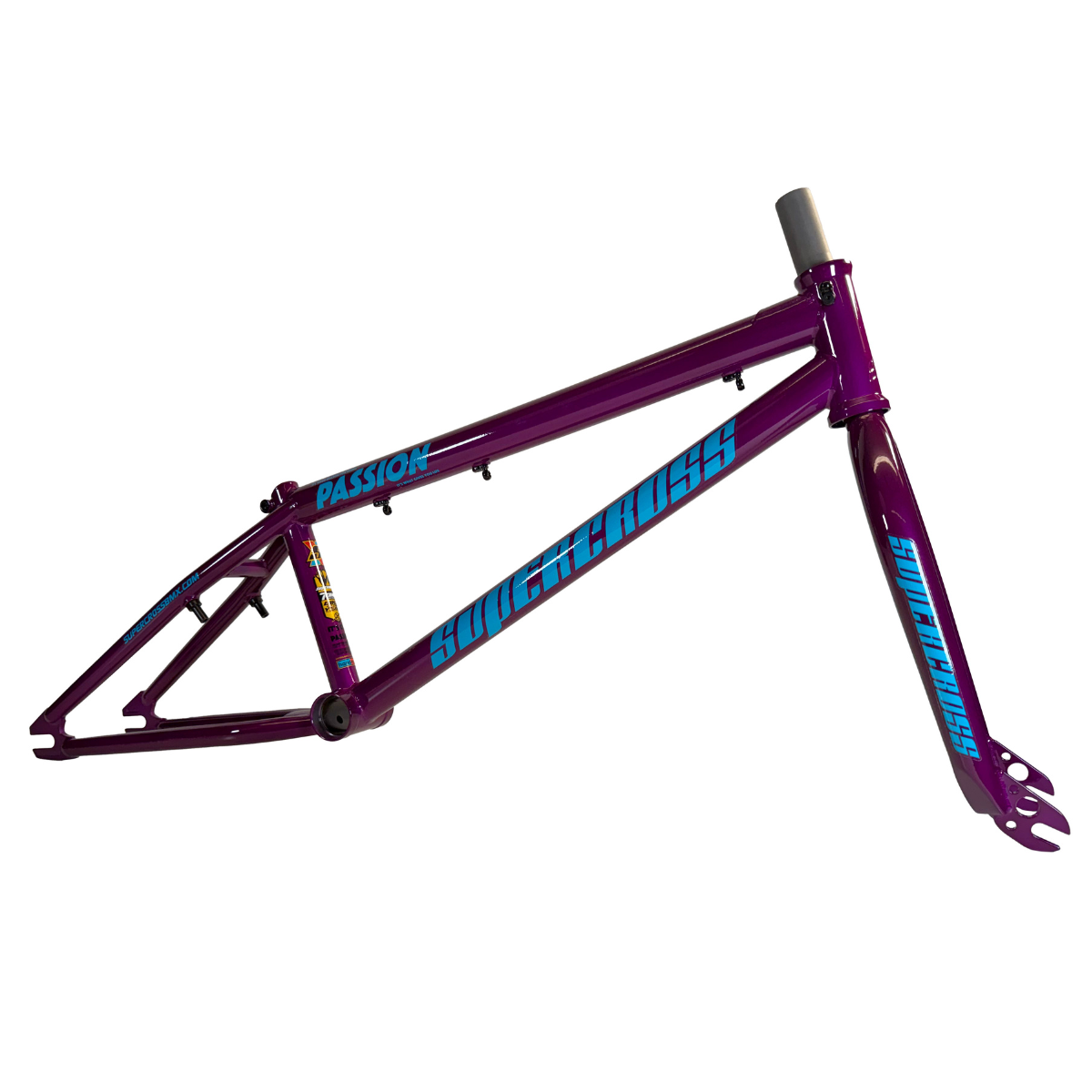

- Eggplant
- Matte Stone
- Toasted Marshmallow
- Matte Raspberry
There’s a color and size for everyone. Be sure to pick up your matching SLT Fork to complete the build.
The “Swiss-Army Knife” of BMX
The Supercross BMX Passion has long been called our “Swiss-Army Knife” of BMX bikes, and now it gets even better. To add even more versatility and fun, we’ve expanded the lineup to include 26" and 29" wheel sizes—perfect for all the Big BMXers out there.
The Passion is sold as FRAME ONLY.
Compatibility
- 14mm rear axles on 20" sizes
- 10mm axles on 26" and 29" sizes
- Accepts a Campy-style 1 1/8" integrated headset (not included)
- Uses 990 brakes (not included)
- Requires a Mid BB (not included)
- Uses a 25.4mm seatpost (not included)
GEOMETRY
| Wheel Size | Top Tube (TT) | Rear C/S (Center) | BB Height | Head Tube Angle | Seatmast Angle | Standover |
|---|---|---|---|---|---|---|
| 20" | 20.5" | 13.625" | 11.625" | 75° | 71° | 9" |
| 20" | 21" | 13.625" | 11.625" | 75° | 71° | 9" |
| 20" | 21.5" | 13.625" | 11.625" | 75° | 71° | 9" |
| 26" | 22.75" | 17" | 11.625" | 71° | 71° | 14.875" |
| 29" | 23.75" | 17.75" | 11.625" | 69° | 71° | 16.125" |
